Product Details
Brand Name: | OEM/UNIQUE | Place of Origin: | China | Model Number: | C1720 |
Shape: | Plate | Thickness: | Customs | Width: | Customs |
Application: | Mould | Ultimate Strength (≥ MPa): | Customs | Alloy Or Not: | Is Alloy |
Grade: | C1720 | Elongation (≥ %): | Customs | Material: | Bronze |
Cu (Min): | 97% |
Product Description

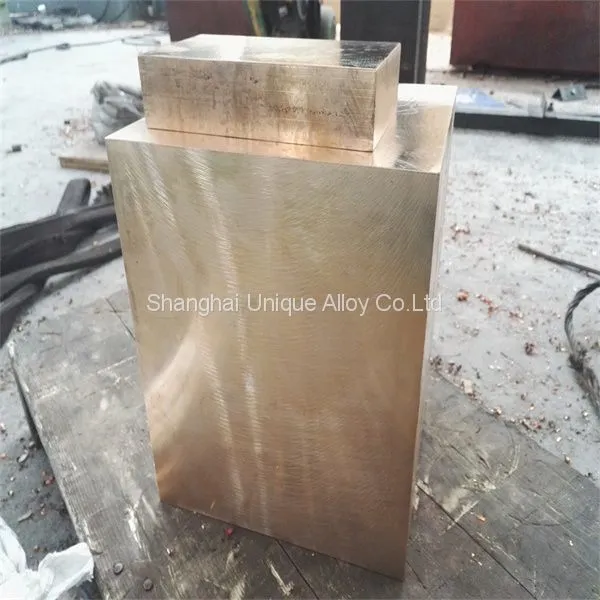

Beryllium Copper Plate C1720
C17200/CuBe2/CW101C/DIN 2.1247 Beryllium Copper
C17200 is manufactured to provide a combination of high strength and hardness properties coupled with superior thermal properties. This range of properties makes C17200 the premier material for copper alloy molds and a wide range of other applications from oil and gas to aerospace.
Chemical Composition:
Be: 1.80-2.0%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.
Material description:
High strength, good fatigue strength, good conductivity,
non-magnetic, wear resistance
Applications
- Nozzles and needles for hot runner systems
- Inserts in plastic blow moulding and plastic injection moulding
- Needles and nozzles for hot canal systems
- Packing bearings rings in extreme high pressure hydraulics(e.g. jet cutting)
- Stud holders for stud welding equipment
- High strength, non-magnetic, non-sparking parts, sleeves,bushings, bearings for offshore, onshore, airplanes, precision instruments and medical applications moulding
Shapes :
Round bars, Round wires, Round tube,
Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils
Custom shapes are available upon request.
Available Sizes:
Rod: Dia.5~200mm; Wire: Dia.0.1-5.0mm
Tube: OD10~60mm, ThK 0.1~10mm
Plate: thk min 0.5mm
Custom Diameter & Sizes, Random Mill lengths
Related Standard :
Rods/Bars/: ASTM B196; SAE J461,463; AMS 4533,4534,4535; AMS4650,4651;
RWMA Class 4, GOST 15835
Tubes: ASTM B251,643
Strips: ASTM B194, AMS4530,4532; SAE J461,463, GOST 1789
Sheets: ASTM B194
Wires: ASTM B197, AMS4725, SAE J461,463, JIS 3270, GOST 15834
Plates: ASTM B194, SAE J461,463; AMS4530,4533,4534,AMS4650,4651; RWMA Class 4.
European Standards: CuBe2, DIN 2.1247, CW101C to EN, BrB2
Other material are also available
C17300/CuBe2Pb/CW102C/DIN 2.1248
C17500/CuCo2Be/CW104C/DIN 2.1285
C17510/CuNi2Be/CW110C/DIN 2.0850
CuCo1Ni1Be/CW103C
C17200/CuBe2/CW101C/DIN 2.1247
C17300/CuBe2Pb/CW102C/DIN 2.1248
C17500/CuCo2Be/CW104C/DIN 2.1285
C17510/CuNi2Be/CW110C/DIN 2.0850
CuCo1Ni1Be/CW103C
