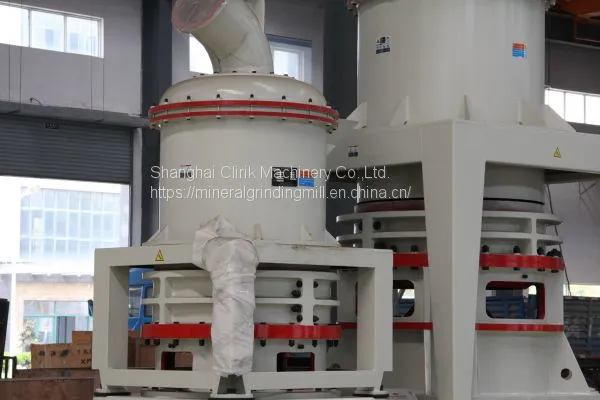

China clay pulvariser machine/clay grinding machine manufacturer:
—— five models: HGM80, HGM90, HGM100, HGM100A, and HGM125
——finished production fineness: 300meshes~3000meshes, 5-47 micron
——the capacity (ton/hour) ranges from 0.4T/H to 12T/H
Application of china clay pulvariser machine/clay grinding machine:
HGM Series China clay pulvariser machine/clay grinding machine is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.
Work Principle of china clay pulvariser machine/clay grinding machine:
HGM series china clay pulvariser machine/clay grinding machine mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
Videos of Work Principle:
/watch?v=_OgJOLtaKWQ
/watch?v=3Lm6v23U580
Features of china clay pulvariser machine/clay grinding machine:
High Efficiency
Under the same finished final size and the same motor power, the capacity of china clay pulvariser machine/clay grinding machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.
High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.
Unit: KW | HGM80 | HGM90 | HGM100 | HGM125 | HGM1680 |
Main Unit | 55-75 | 2*45 | 132 | 185-200 | 315 |
Classifier | 18.5 | 18.5 | 30 | 37-4*15 | 5*18.5 |
Blower | 45 | 55 | 75 | 2*45-2*55 | 2*75-2*90 |
Crusher | 18.5 | 18.5 | 18.5 | 45 | 45 |
Bucket Elevator | 3 | 3 | 4 | 4 | 7.5 |
Feeder | 2.2 | 2.2 | 2.2 | 3 | 3 |
Discharging Valve | 2*0.75 | 1*0.75-1*1.1 | 2*1.1 | 2*1.1 | 2*0.75-2*1.5 |
Air Compressor | 11 | 15 | 22 | 2*15-37 | 55 |
