Home > Products > ultra fine mill > Precipitated calcium carbonate processing plant
Precipitated calcium carbonate processing plant
- 30 Set / Sets per Month
- Shanghai
- T/T L/C Credit Card Cash
- 15 days
Product Details
Brand Name: | Clirik | Place of Origin: | China | Model Number: | HGM |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

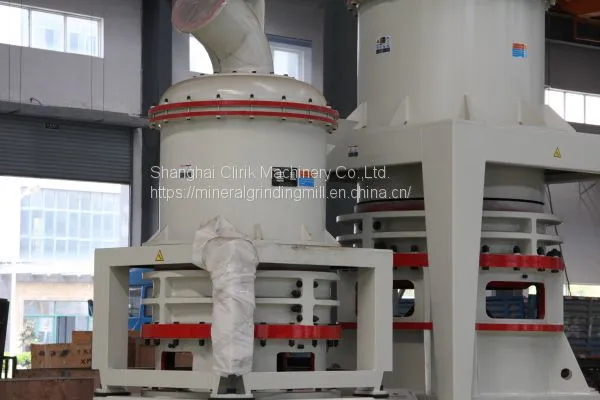

Precipitated calcium carbonate processing plant:
—— five models: HGM80, HGM90, HGM100, HGM100A, and HGM125
——finished production fineness: 300meshes~3000meshes, 5-47 micron
——the capacity (ton/hour) ranges from 0.4T/H to 12T/H
Application of Precipitated calcium carbonate processing plant:
HGM Series Precipitated calcium carbonate processing plant is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.
Work Principle of Precipitated calcium carbonate processing plant:

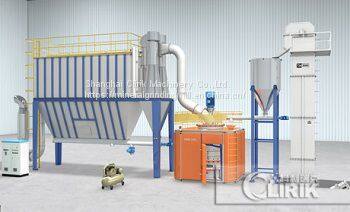

HGM series Precipitated calcium carbonate processing plant mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
Features of Precipitated calcium carbonate processing plant:
1.High Efficiency
Under the same finished final size and the same motor power, the capacity of Precipitated calcium carbonate processing plant is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2.Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.
3.High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4.High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
5.Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
6.Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.
Main specification of Precipitated calcium carbonate processing plant:
Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
Ring Diameter(mm) | 800 | 930 | 1035 | 1035 | 1300 |
Ring Number (PCS) | 3 | 3-4 | 3 | 4 | 4 |
Roller Number(PCS) | 21 | 24-32 | 27 | 34-36 | 40-44 |
Main Shaft Speed (r. p. min) | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
Input Size (mm) | ≤20 | ||||
Finished Size (um) | 5-47(325-2500) | ||||
Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
Motor powder (KW) | 145-165 | 185-204 | 263 | 263-290 | 380-430 |
Note: This specification is just referencing, any changes are subject to the products.
Welcome to contact us for enquiry.
www.limestonegrindingmill.in
