Help CenterCast Iron DN100 QT450 GGG50 PN16 Fire Signal Flanged Gate Valve
Related Products
-
DN900 DN1000 DN1200 CAST IRON GATE VALVEUS$ 28 - 1888MOQ: 500 Pieces -
Resilient Seated Cast Iron PN16 Thread Gate ValveUS$ 28 - 1888MOQ: 500 Pieces
-
Ductile Iron Q450 PN16 Grooved End Hard Seal Brass Seat Gate ValveUS$ 28 - 1888MOQ: 500 Pieces
-
Ductile Iron Z45T Brass Core Non Rising Metal Seat Gate ValveUS$ 28 - 1888MOQ: 500 Pieces
-
BS5163 DN150 PN16 Ductile Iron Brass Ring Metal Seat Gate ValveUS$ 28 - 1888MOQ: 500 Pieces
| Product introduction: The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids. |
Characteristics:
1. The seal is designed with dustproof ring plus three “O”-seal ring, reliable sealing, on-line replaceable.
2. Both gate and aluminum bronze bearing are in in aid design good self lubrication, high strength and can have the aluminum bronze bearing replaced without need to replace the gate integrally, after a long time use.
3. Rubber wrapped gate anti-corrosion, good tightness.
4. Advanced surface treatment, coated with non-toxic epoxy resign static powder, anti-corrosion, pollution-free, can be used drinking water pipeline.
5. The body is designed without gate slot, the smooth passage will not get impurities filling up , more applicable for sewage working condition.
6. The integral seal works raliably. For the high pressure seal, leaving zero leakage under1.5 times nominal pressure and ,for the low pressure one ,under 0.02Mpa.
Materials of major parts:
| No. | part | material |
| 1 | Body | Ductile cast iron |
| 2 | Disc | Ductile cast iron packed with NBR |
| 3 | Bolt | CS SS |
| 4 | Gasket | EPDM NBR |
| 5 | Cover | ductile cast iron |
| 6 | Stem | stainless steel |
| 7 | O-ring | EPDM Silicone |
| 8 | Thrust bearing | Brass |
| 9 | Bolt | CS SS |
| 10 | Gland | ductile cast iron |
| 11 | Dust proof gasket | EPDM/NBR |
| 12 | Hand wheel | Ductile cast iron |
Main size:
| Normal pressure (Mpa) | Body test pressure (Mpa) |
Sealing test pressure (Mpa) |
Applicable medium | Applicable temperature (°C) |
| 1.0 | 1.5 | 1.1 | water | 0~80 |
| 1.6 | 2.4 | 1.76 | ||
| 2.5 | 3.75 | 2.75 |
Performance specification:

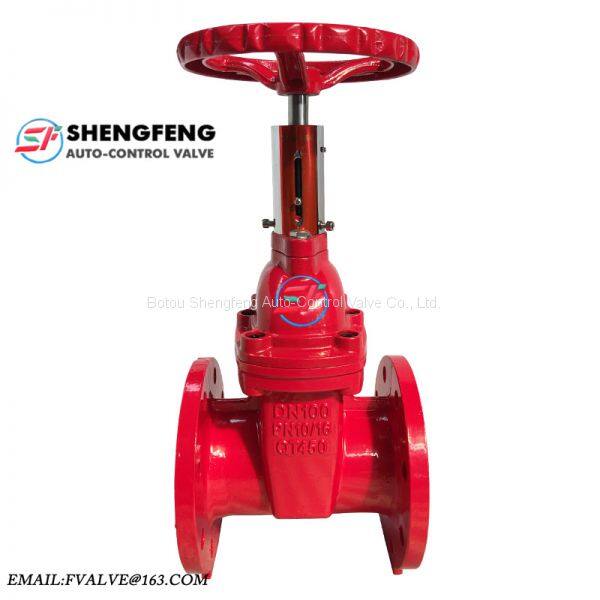

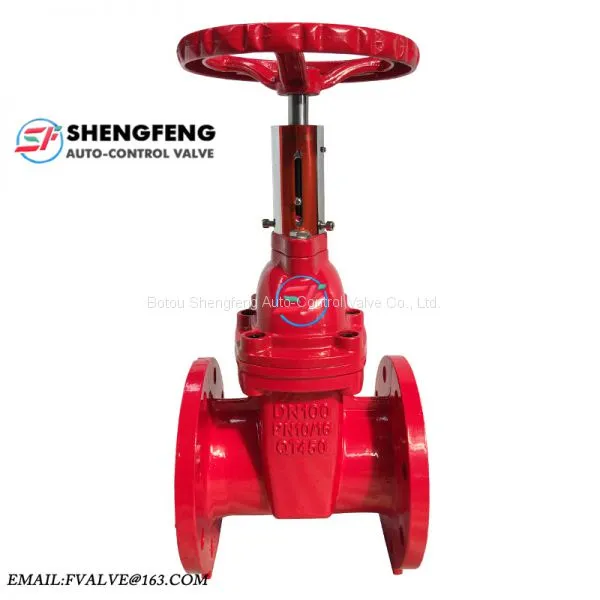

Product photo：
How to reach our factory:
by plane:
From Beijing airport:240kms,3 hours by driving.
From Tianjin airport:150kms, 2 hours by driving.
By Train:
From beijing South railway station:224Kms, 1 hours
From Shanghai Hongqiao railway station:1167Kms, 4.5 hours
By Car:
From CangzhouXi railway station:45kms, 40 minutes.
Our address:Botou Industry Park,Cangzhou City,Hebei Province ,China
