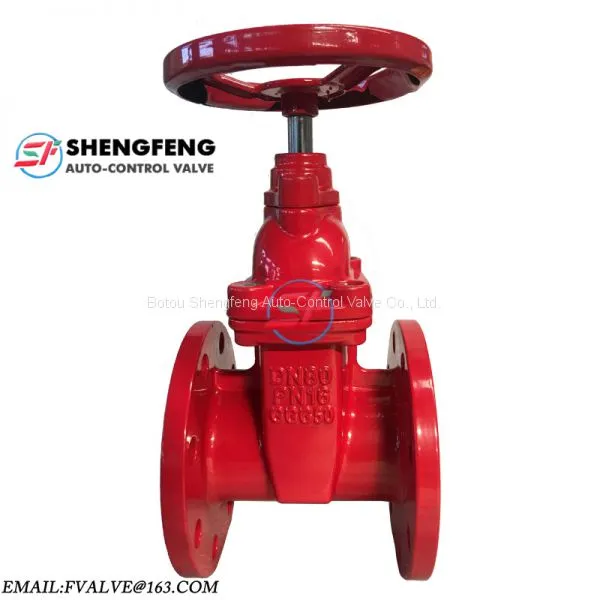

DN80 PN16 GGG50 DIN3352 F4 hot water ductile iron gate valve
- 5000 Set / Sets per Month
- TIANJIN PORT
- T/T L/C
- 15 days
Product Details
Brand Name: | SHENGFENG | Place of Origin: | China | Model Number: | F4 |
Material: | Casting | Application: | General | Structure: | Gate |
Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Manual |
Port Size: | DN40-DN600 | Media: | Water | Temperature of Media: | Medium Temperature |
Product Description
Product introduction: The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids. |
Characteristics:
1. The seal is designed with dustproof ring plus three “O”-seal ring, reliable sealing, on-line replaceable.
2. Both gate and aluminum bronze bearing are in in aid design good self lubrication, high strength and can have the aluminum bronze bearing replaced without need to replace the gate integrally, after a long time use.
3. Rubber wrapped gate anti-corrosion, good tightness.
4. Advanced surface treatment, coated with non-toxic epoxy resign static powder, anti-corrosion, pollution-free, can be used drinking water pipeline.
5. The body is designed without gate slot, the smooth passage will not get impurities filling up , more applicable for sewage working condition.
6. The integral seal works raliably. For the high pressure seal, leaving zero leakage under1.5 times nominal pressure and ,for the low pressure one ,under 0.02Mpa.
Materials of major parts:
No. | part | material |
1 | Body | Ductile cast iron |
2 | Disc | Ductile cast iron packed with NBR |
3 | Bolt | CS SS |
4 | Gasket | EPDM NBR |
5 | Cover | ductile cast iron |
6 | Stem | stainless steel |
7 | O-ring | EPDM Silicone |
8 | Thrust bearing | Brass |
9 | Bolt | CS SS |
10 | Gland | ductile cast iron |
11 | Dust proof gasket | EPDM/NBR |
12 | Hand wheel | Ductile cast iron |
Main size:
DN | L-mm | h-mm | D-mm | a-mm | d-mm | c-mm | x-n | T-mm | f-mm | g-mm |
50 | 150 | 241 | 138 | 50 | 158 | 125 | 4-Φ18 | 16.5 | 2 | 99 |
65 | 170 | 270 | 173 | 65 | 180 | 145 | 4-Φ18 | 17 | 2 | 118 |
80 | 180 | 292 | 173 | 80 | 196 | 160 | 8-Φ18 | 19 | 3 | 132 |
100 | 190 | 333 | 200 | 100 | 215 | 180 | 8-Φ18 | 20 | 3 | 156 |
125 | 200 | 384 | 230 | 125 | 250 | 210 | 8-Φ18 | 20 | 3 | 184 |
150 | 210 | 420 | 230 | 150 | 280 | 240 | 8-Φ23 | 20 | 3 | 211 |
200 | 230 | 512 | 270 | 200 | 336 | 295 | 12-Φ23 | 21 | 3 | 266 |
250 | 250 | 602 | 350 | 250 | 405 | 355 | 12-Φ26 | 25 | 3 | 319 |
300 | 270 | 705 | 350 | 300 | 460 | 410 | 12-Φ26 | 28 | 4 | 370 |
350 | 290 | 782 | 450 | 350 | 520 | 470 | 16-Φ26 | 28 | 4 | 430 |
400 | 310 | 880 | 480 | 400 | 580 | 525 | 16-Φ30 | 28 | 4 | 475 |
500 | 350 | 1055 | 600 | 500 | 715 | 650 | 20-Φ34 | 29 | 4 | 580 |
600 | 390 | 1260 | 600 | 600 | 840 | 770 | 20-Φ40 | 38 | 4 | 680 |
Performance specification:
Normal pressure (Mpa) | Body test pressure (Mpa) | Sealing test pressure (Mpa) | Applicable medium | Applicable temperature (°C) |
1.0 | 1.5 | 1.1 | water | 0~80 |
1.6 | 2.4 | 1.76 | ||
2.5 | 3.75 | 2.75 |
Product photo:
