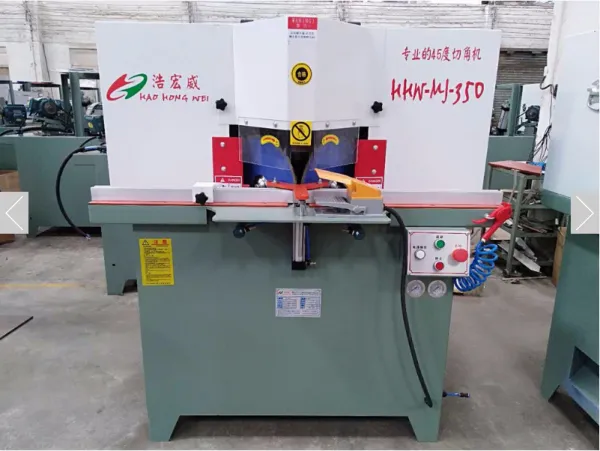

Help CenterDouble Head Saw Aluminium Cutting Saw Machine 6kg/cm2
Related Products
-
3800 R/PM Aluminum Cutting Saw Machines With Angle ProtectionUS$ 6200 - 6400MOQ: 1 Set -
2.2 KW × 2 Aluminum Angle Cutting Machines 4800W For Window / DoorUS$ 6200 - 6400MOQ: 1 Set
-
CNC Automatic 45 Degree Aluminum Angle Cutting Machines With PLC Touch ScreenUS$ 14600 - 15000MOQ: 1 Set
-
Aluminum Copper Profile Cutting Saw Machine Cutting MachineUS$ 4200 - 4340MOQ: 1 Set
-
Aluminum Window Door Corner Combining Machine /Aluminum Cutting Machine Double Mitre SawUS$ 4200 - 4340MOQ: 1 Set
Feature:
1.Just step on the foot pedal switch,the machine will pressure and cut the materials automatically,operation is safety and easy
2.Fast double blade sawing,save time and improve production efficiency
3.Any long or short material can be trimmed
4.Two sets of four oil sprayer provides proper lubrication to sawblade,spouting oil automatically when cutting,tangent plane is smooth,sawblade is long use life
5.Sawblade is driven by independent motor,powerful cutting
6.Apply upper and lateral pressure 2 group pressure material method,the materials become firmly established,pressure can be adjusted causes no deformation the hollow material
7.Install 2.4m feeding and discharging racks in the left and rght of the machine,discharging rack is equipped with positioning baffle makes set-inch cutting

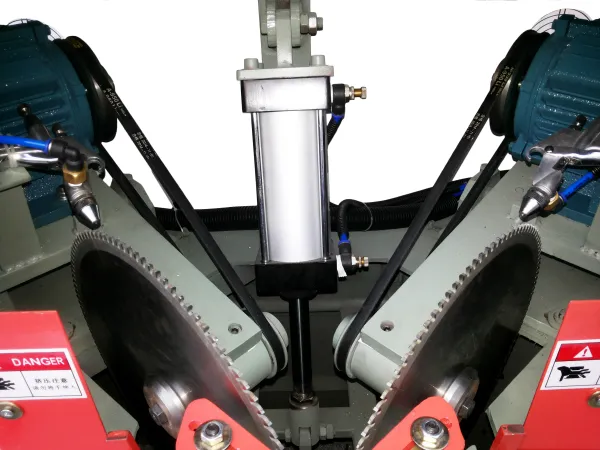

8.Double sawblade device can finish 45° sawing on both ends of door and window frame at one time,convenient and efficient
Parameter：
| Sawing angle | 45º×2 |
| Maximum sawing width | 100mm |
| Cutting height | 100mm |
| Spindle speed | 3800R/PM |
| Motor Power | 2.2KW×2 |
| working pressure | 6kg/cm2 |
| weight | 430kg |
| Saw blade size | Φ355×Φ25.4mm×120T |
| working desk size | 1260×180mm |
| Dimensions | 1260×820×1390mm |
