Description of DN12 DN19 oxygen nitrogen argon thermal gas mass air flow meter sensor
MF5600 Series Mass Flow Meters are specially designed for applications where the display is often required to be placed separated away from the flow channel or meters body, such as the oxgen metering system in a hospital. These meters are opted with the standard industrial user interfaces (RS485 and 4~20mA), and user defined alarm functions for better monitoring or control over the network. The off-the-shelf products (MF5612 and MF5619) are for gas flow measurement of 0 ~ 300 SLPM and 0 ~ 800 SLPM respectively.
Features of DN12 DN19 oxygen nitrogen argon thermal gas mass air flow meter sensor
Detachable display that can be placed away from the flow channel via a specially designed cable.
Standard 4~20mA or RS485 for remote data communication
Hygienic stainless steel body ready for oxygen metering
Extended rangeability for accurate flow monitoring and control
Instrinsic safe enclosure
Specification of DN12 DN19 oxygen nitrogen argon thermal gas mass air flow meter sensor
Parameter |
MF5612 |
MF5619 |
Unit |
DN |
12 |
19 |
mm |
Max. Flowrate |
200, 300 |
600, 800 |
SLPM |
Min. Flowrate |
0.3 |
0.8 |
SLPM |
Turn-down Ratio |
30:1 |
||
Accuracy |
±(1.5+0.5FS) |
% |
|
Repeatability |
±0.5 |
% |
|
Max. Pressure |
1.0 |
Mpa |
|
Operating Temp. |
-10 ~ 55 |
℃ |
|
Humidity |
|||
Power Supply |
12 ~ 24V DC 50mA |
||
Output |
4 ~ 20mA; RS485; Pulse |
||
Mechanical Connection |
NPT 1/2 |
NPT 3/4 |
|
Calibration |
Air @ 20℃, 101.325 kPa |
||

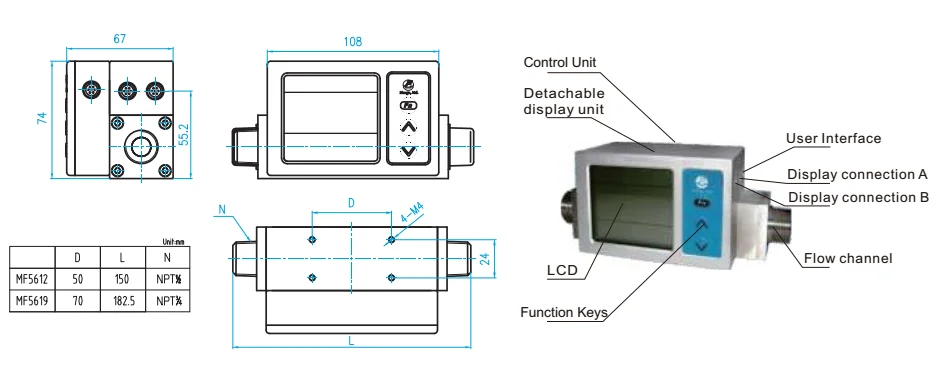

Dimensionof DN12 DN19 oxygen nitrogen argon thermal gas mass air flow meter sensor

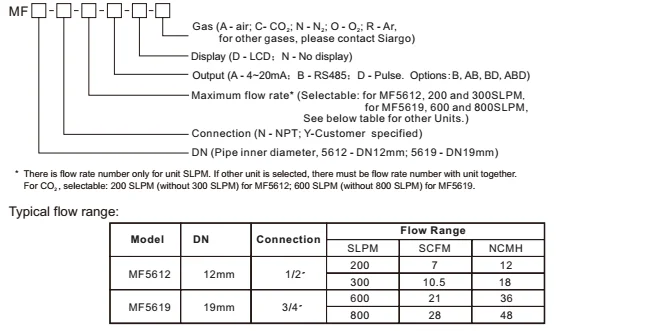

Selection guide of DN12 DN19 oxygen nitrogen argon thermal gas mass air flow meter sensor
Accessory of DN12 DN19 oxygen nitrogen argon thermal gas mass air flow meter sensor
