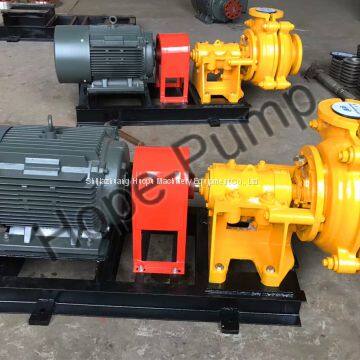

Interchangeable Slurry Pumps

Interchangeable Slurry Pumps thumbnail-1
Interchangeable Slurry Pumps thumbnail-2
Interchangeable Slurry Pumps thumbnail-3
Interchangeable Slurry Pumps photo-1
Interchangeable Slurry Pumps photo-2
Interchangeable Slurry Pumps photo-3
US$ 500 - 50000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hope-pump
Place of Origin:
China
Model Number:
AH,HH,L,M series
Contact Supplier Request Quote Chat Now
Shijiazhuang Huopu Machinery Equipment Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hope-pump
Place of Origin China
Model Number AH,HH,L,M series

Project Description

HAH Slurry Pump Introduction:

MH slurry pump is horizontal, cantilevered centrifugal slurry pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building etc. Especially well accepted by coal & chrome washing plant, mineral processing plant, power plant etc.


HAH Slurry Pump Features:

Impeller: High chrome alloy and Nature rubber impellers are completely interchangeable. Impellers can be produced from 2 vans to 8 vans as required. High efficiency, high head and OEM designs are also available.


Liner: High chrome alloy and Nature rubber liners are completely interchangeable.Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.


Bearing assembly: A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.


Pump Casing: Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.


Sealing type: Packing seal,Expeller seal and Mechanical seal are available for choice.


Frame base: A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

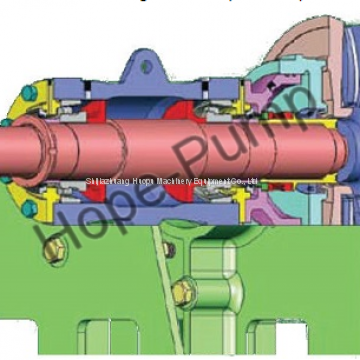

HAH Slurry Pump Structural Drawing:

HAH Slurry Pump Performance Chart

HAH Slurry Pump Performance Data Sheet:

Model

Max.    Power

Material

Clear water performance

Impeller

Vane No.

Liner

Impeller

Capacity

Q ( m3/h)

Head

H ( m)

Speed

n (rpm)

Eff.(%)

NPSH

(m)

HAH1.5/1B

15

M

M

12.6~28.8

6~68

1200~3800

40

2~4

5

HAHR1.5/1B

15

RU

RU

10.8~25.2

7~52

1400~3400

35

3

HAHH1.5/1C

30

M

M

16.2~34.2

25~92

1400~2200

20

1~5.5

5

HAH2/1.5B

15

M

M

32.4~72

6~58

1200~3200

45

3.5~8

5

HAHR2/1.5B

15

RU

RU

25.2~54

5.5~41

1000~2600

50

2.5~5

HAH3/2C

30

M

M

39.6~86.4

12~64

1300~2700

55

4~6

5

HAHR3/2C

30

RU

RU

36~75.6

13~39

1300~2100

2~4

HAH4/3C

30

M

M

86.4~198

9~52

1000~2200

71

4~6

5

HAH4/3D

60

HAHR4/3C

30

RU

RU

79.2~180

5~34.5

800~1800

59

3~5

5

HAHR4/3D

60

HAHH4/3E

120

M

M

126~252

12~97

600~1400

50

2~5

5

HAH6/4D

60

M

M

162~360

12~56

800~1550

65

5~8

5

HAH6/4E

120

HAHR6/4D

60

RU

RU

144~324

12~45

800~1350

65

3~5

5

HAHR6/4E

120

HAHH6/4S

260

M

M

100~414

34~98

600~1000

64

2~8

5

HAH8/6E

120

M

M

360~828

10~61

500~1140

72

2~9

5

HAHR8/6E

120

RU

RU

324~720

7~49

400~1000

65

5~10

5

HAH10/8ST

560

M

M

612~1368

11~61

400~850

71

4~10

5

HPHR10/8ST

560

RU

RU

540~1188

12~50

400~750

75

4~12

HAL10/8E

120

M

M

666~1440

14~60

600~1100

73

4~10

5

HAHR10/8ST

120

RU

RU

540~1188

10~42

500~900

79

5~9

5

HAH12/10ST

560

M

M

936~1980

7~68

300~800

82

6

5

M

M

720~1620

7~45

300~650

80

2.5~7.5

HAH14/12ST

560

M

M

1260~2772

13~63

300~600

77

3~10

5

HAHR14/12ST

560

RU

RU

1152~2520

13~44

300~500

79

3~8

HAH16/14ST

560

M

M

1368~3060

11~63

250~550

79

4~10

5

HAH16/14TU

1200

HAH18/16ST

560

M

M

2160~5040

8~66

200~500

80

4.5~9

5

HAH18/16TU

1200

HAH20/18TU

1200

M

M

2520~5400

13~57

200~400

85

5~10

5



HAH Slurry Pump Component Diagram:




HAH Slurry Pump Application:

▶Iron Ore Dressing Plant

▶Copper Concentration Plant

▶Gold Mine Concentration Plant

▶Molybdenum Concentration Plant

▶Potash Fertilizer Plant

▶Other Mineral Processing Plants

▶Alumina Industry

▶Coal Washery

▶Power Plant

▶Sand Excavation

▶Building Material Industry

▶Chemical Industry

▶Other industries
