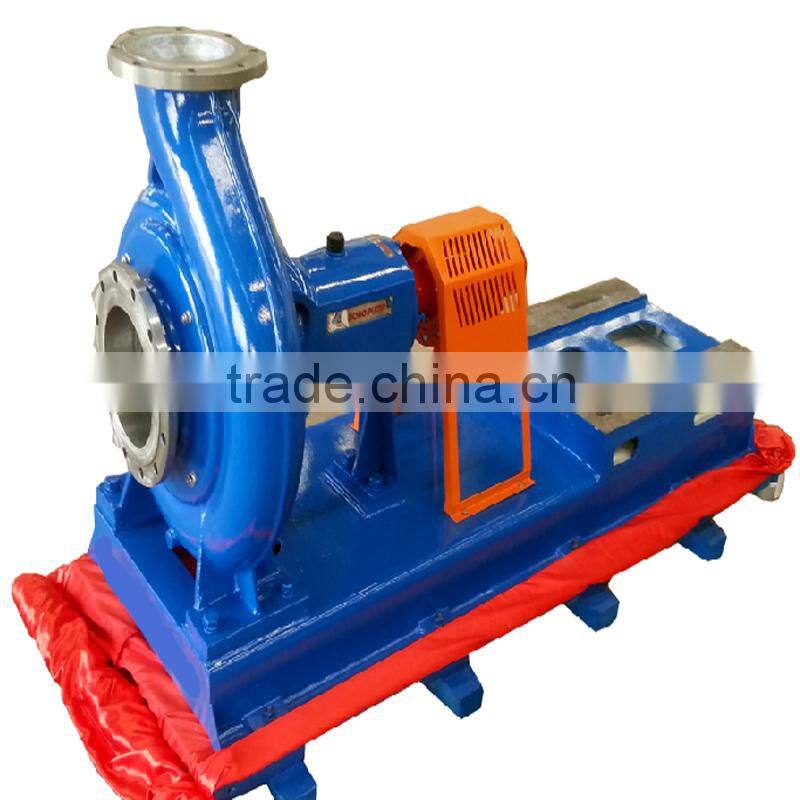

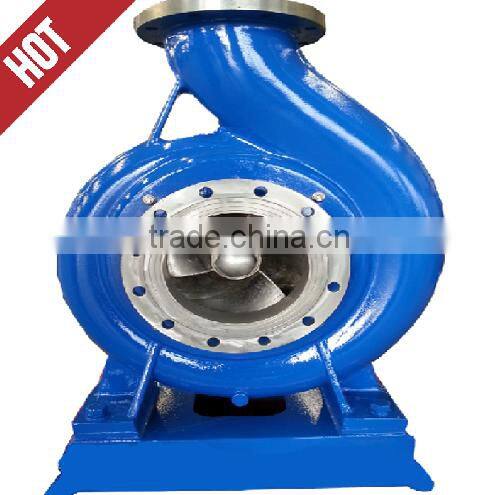

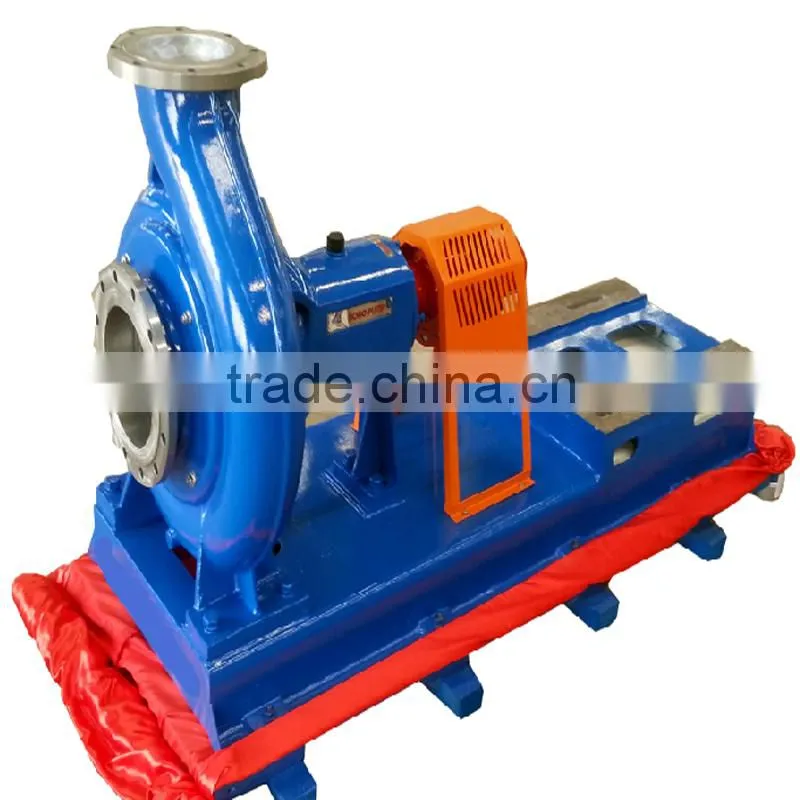

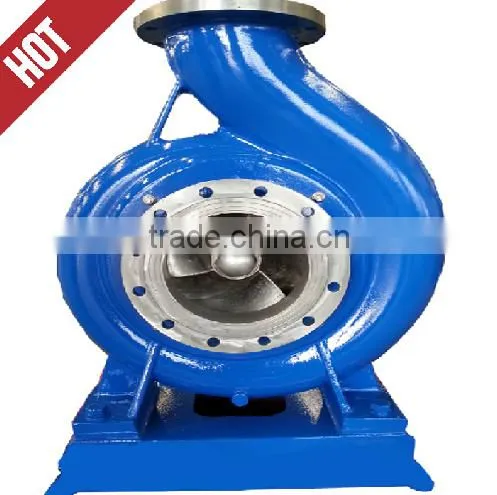

Centrifugal pump/slurry pump price/ pulp pump for sale
Application
LXL-Z Series Two-phase Flow Pulp Pump
Flow rate(m3/h):30-2300
Suction height(m):1.5-6
Medium Volume concentration(%):4-6
Port: Shanghai,Qingdao,Tianjin.
Over view
It is guaranteed that rotary vacuum pump can start normally in the low temperature of winter. It is applicable to vacuum packaging, vacuum free.
It also can be used alone, also can be used as booster pump, diffusion pump, molecular pump and backing pump. Besides, it can be used for vacuum metallurgy, vacuum welding, vacuum impregnation, coating, vacuum drying and chemical pharmaceutical, electric vacuum components and other industrial vacuum operation.
Features
1.High efficiency,energy saving
The average operating efficiency than ordinary paper pulp pump 3-10 percentage points,Energy saving, saving up to 15-30%.
2.Good cavitation performance, long life
Real life can increase 2-3 times than ordinary paper pulp pump
3.High concentration, without plugging
4.Reasonable structure, easy maintenance
Former head part is, the door structure, pipeline maintenance without disassembly, just move the motor backwards, you can disassemble and repair the pump.
5.Wetted parts are made of cast iron, cast steel, stainless steel for the user to choose
6.Pump can be within the scope of 5 ~ 40℃ environment temperature and the inlet pressure under the condition of less than 1330 pa, allows continuous work for a long time.
Main specification
| Type | flow(M3/h) | height of suction(M) | lift(M) | rotating speed(%) | efficiency(r/min) | dielectric volume concentration(%) | power(kw) |
| 80LXLZ-35-6 | 21-40 | 7-5 | 2.5 | 68 | 1400 | 4-6 | 1.5 |
| 80LXLZ-50-6 | 30-60 | 7-5 | 2.5 | 68 | 1420 | 4-6 | 2.2 |
| 80LXLZ-60-12 | 35-70 | 14-12 | 2.5 | 65 | 140 | 4-6 | 4 |
| 80LXLZ-65-15 | 40-80 | 16-14 | 2.5 | 65 | 1440 | 4-6 | 5.5 |
| 100LXLZ-90-18 | 80-100 | 20-15 | 6 | 60 | 140 | 4-6 | 7.5 |
| 100LXLZ-80-20 | 75-90 | 21-16 | 6 | 60 | 10 | 4-6 | 7.5 |
| 100LXLZ-100-28 | 80-110 | 29-25 | 6 | 60 | 1440 | 4-6 | 11 |
| 100LXLZ-110-20 | 80-120 | 21-18 | 6 | 60 | 140 | 4-6 | 11 |
| 100LXLZ-100-35 | 50-110 | 37-33 | 6 | 60 | 1460 | 4-6 | 15 |
| 100LXLZ-120-40 | 50-130 | 43-37 | 6 | 65 | 1460 | 4-6 | 18.5 |
| 150LXLZ-180-15 | 95-190 | 15-12 | 5 | 60 | 970 | 4-6 | 11 |
| 150LXLZ-210-16 | 160-220 | 20-12 | 6 | 65 | 970 | 4-6 | 15 |
| 150LXLZ-250-25 | 120-260 | 29-20 | 5 | 65 | 1460 | 4-6 | 22 |
| 150LXLZ-250-30 | 150-260 | 37-24 | 5 | 68 | 1460 | 4-6 | 30 |
| 150LXLZ-350-14 | 180-360 | 16-14 | 5 | 75 | 970 | 4-6 | 18.5 |
| 150LXLZ-330-12 | 170-340 | 13-11 | 5 | 75 | 970 | 4-6 | 15 |
| 150LXLZ-420-25 | 230-430 | 27-20 | 5 | 75 | 1470 | 4-6 | 37 |
| 150LXLZ-470-28 | 240-480 | 30-24 | 5 | 75 | 1470 | 4-6 | 45 |
| 150LXLZ-430-32 | 260-520 | 35-28 | 5 | 75 | 1470 | 4-6 | 55 |
| 200LXLZ-250-5 | 150-300 | 6-4 | 5 | 76 | 70 | 4-6 | 5.5 |
| 200LXLZ-330-5 | 240-400 | 6-4 | 5 | 76 | 970 | 4-6 | 5.5 |
| 200LXLZ-700-32 | 550-780 | 37-29 | 5 | 77 | 1480 | 4-6 | 90 |
| 250LXLZ-600-18 | 420-690 | 19-15 | 1.5 | 78 | 980 | 4-6 | 45 |
| 250LXLZ-700-22 | 405-840 | 25-17 | 5 | 76 | 1480 | 4-6 | 75 |
| 250LXLZ-800-25 | 480-960 | 26.5-33 | 5 | 76 | 1480 | 4-6 | 90 |
| 250LXLZ-935-28 | 655-1080 | 30-24 | 1.5 | 75 | 1480 | 4-6 | 110 |
| 300LXLZ-800-18 | 560-920 | 19-16 | 1.5 | 76 | 980 | 4-6 | 75 |
| 300LXLZ-1150-26 | 800-1320 | 28-24 | 1.5 | 78 | 1480 | 4.6 | 132 |
| 350LXLZ-1200-18 | 840-1380 | 20-16 | 3.5 | 79 | 740 | 4-6 | 110 |
| 350LXLZ-1400-25 | 980-1610 | 27-23 | 3.5 | 79 | 980 | 4-6 | 160 |
| 350LXLZ-1500-28 | 1050-1725 | 30-26 | 3.5 | 79 | 980 | 4-6 | 185 |

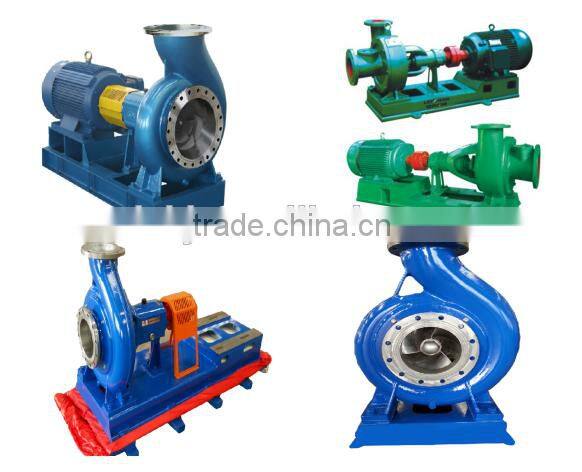

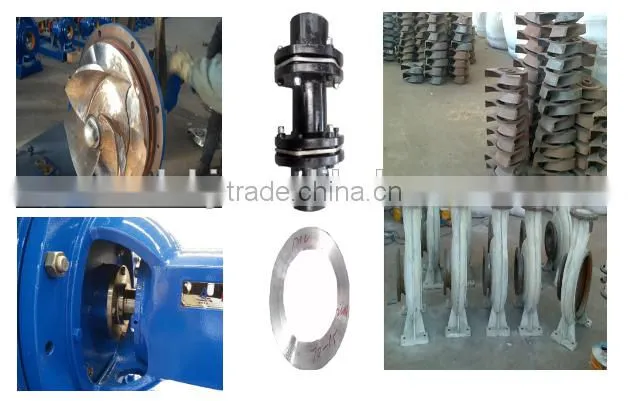

Different types
Competitive advantages
1. Wear resistant steel pulp pump guaranteed that rotary vacuum pump can start normally in the low temperature of winter. It is applicable to vacuum packaging, vacuum free.
2. paper pulp machine also can be used alone, also can be used as booster pump, diffusion pump, molecular pump and backing pump.

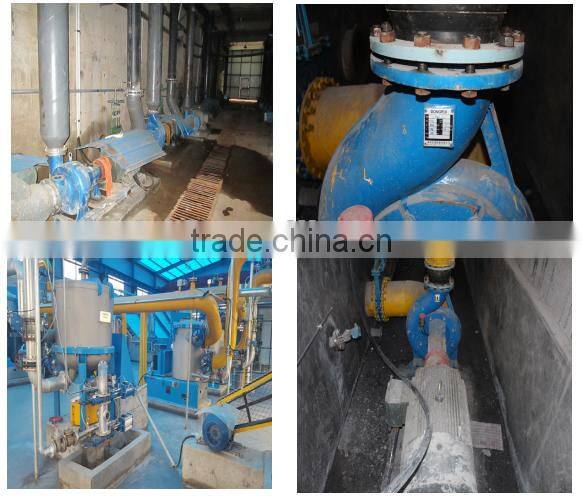

Working Site

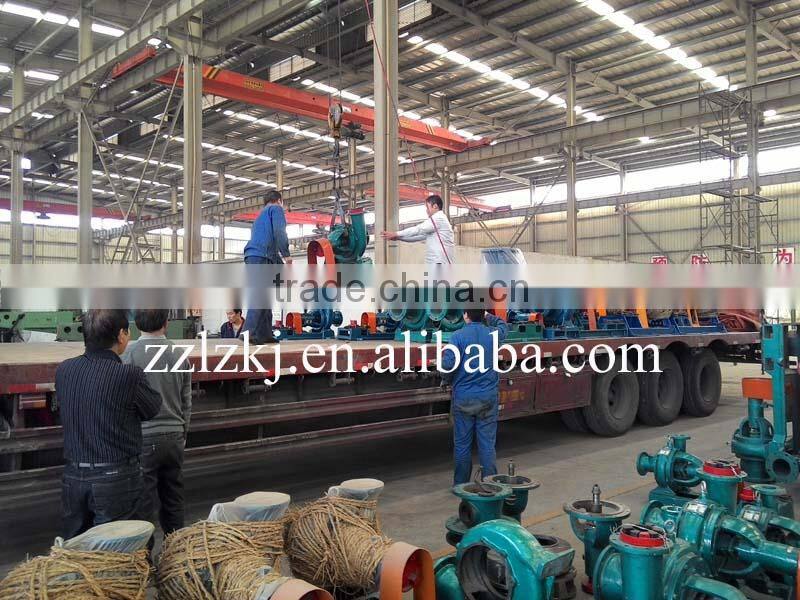

Delivery Site
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support.
With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
We have exported to many foreign countries, for example, Russia, Egypt, Iran, Argentina, Uzbekistan, Turkmenistan, Burma, Vietnam, Pakistan etc. And we are looking forward to establish cooperation relationship with friends all around the world.We warmly welcome you on-the-spot investigation!
Factory Show
Main products for paper pulp making
Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing good life-long maintenance service;
- Providing technical service with a technical service team.
