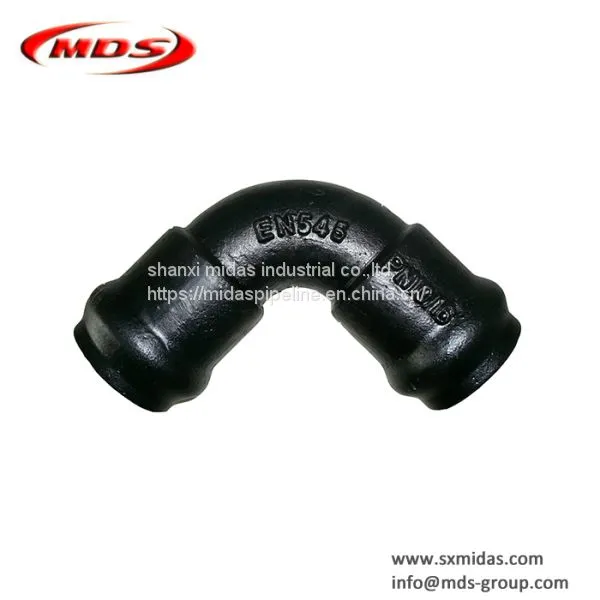

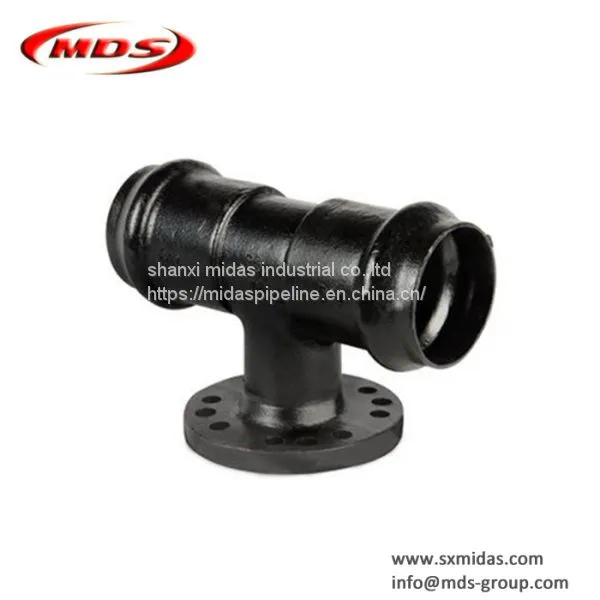

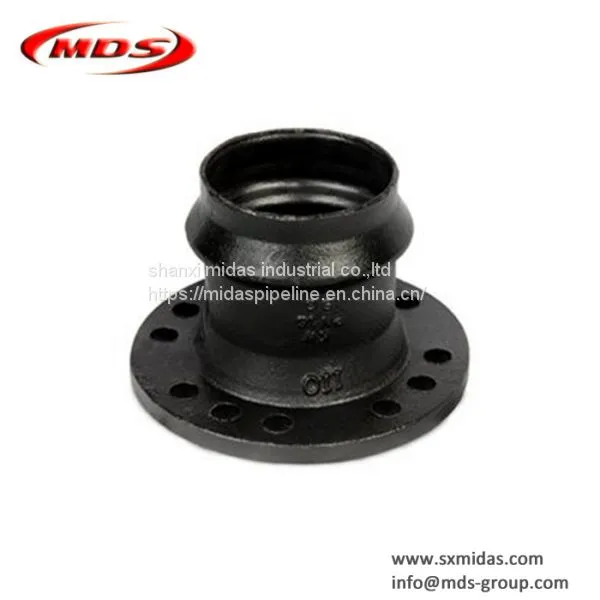

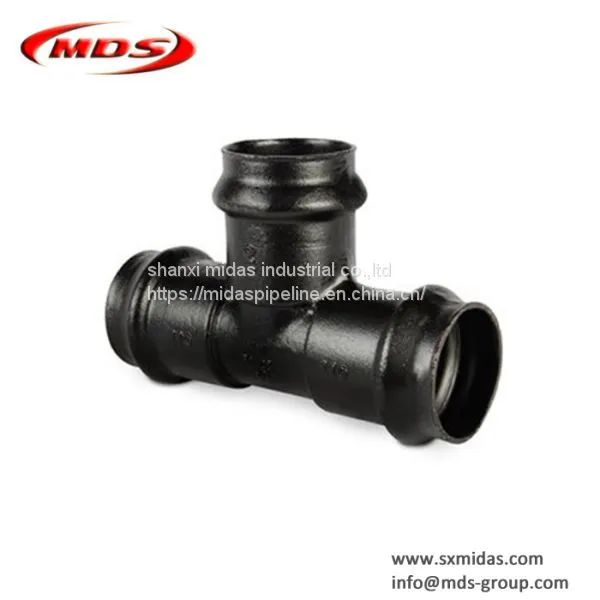

EN12842 ductile iron di upvc fitting tee
| Name | Main Type | Detail Types |
| Ductile Iron Pipe Fitting | Flanged Pipe Fitting | Flanged Bend, Elbow, Flanged Tee, Double Flange Reducer, Flanged Invert Tee, Flanged Cross, Flanged Taper, Flanged Bell mouth, Ductile Iron Duckfoot Bend, Loosing Flanged Fitting, etc |
| Tyton Socket Pipe Fitting | Double Socket Bend, Socket Elbow, Flange Socket, Double Socket Tee, Socket Spigot tee, T Socket Fitting, Double Socket Reducer, Double Socket Duckfoot Bend, S Type Socket Bend, All -Socket Tee with 45 ° Angle Branch, Double Socket Tee with Flange Tee, etc | |
| Mechanical Joint Pipe Fitting( K type Bolt Gland Fitting) | Bolted Gland Bend, Bolted Gland Concentric Tapers, Flanged and Bolted Gland Socket Pieces, Bolted Gland Collar, Bolted Gland Tee, Bolted Gland Socket Spigot Bend, Bolted Gland Socket Spigot Tee with Flanged Branch, etc | |
| Ductile Iron/PVC pipe fitting | DI/PVC Double Socket Bend, DI/PVC Double Socket Tee Flanged Branch, DI/PVC All Socket Tee, DI/PVC All Socket Cross, DI/PVC Double Socket Thread Branch Tee, DI/PVC Flanged Socket, DI/PVC Flanged Spigot, DI/PVC Double Socket Reducer, DI/PVC All Socket Tee, DI /PVC Gibault Joint, DI/PVC Flange Socket Duckfoot Bend, DI/PVC End Caps with Thread, DI/PVC End Caps, DI/PVC Saddles, DI/PVC Quick Adaptors, etc |
About Ductile Iron Pipe Fitting For PVC Pipe
| 1 | Material: | Ductile Cast Iron GGG50, QT500-7/450-10,FGS500-7,420-12 |
| 2 | Standard: | ISO2531 BS EN545 EN598 BS4772 DIN2501,GBT13295 |
| 3 | Flange drilled: | ISO7005-2,BS4504, EN1092-2, DIN2501 |
| 4 | Pressure: | PN10, PN16,PN25 |
| 5 | Specification: | DN50 to DN2000, K12/14 |
| 6 | Joints type: | Flange, Typon joint(push on joint); Bolted Gland K type Joint |
| 7 | Application: | Water supply project, drainage, sewerage, Irrigation ,water pipeline |
| 8 | Certificates: | ISO2531:2009, EN545:2010, EN598 ISO9001, ISO14001,ISO18001. |
| 9 | Surfce Inside: | Portland Cement mortar lining,bitumen paint, epoxy paint/powder |
| 10 | Surface Outside: | Epoxy paint, bitumen paint, epoxy powder coating |
| 11 | Accessories: | SBR or EPDM Rubber Rings are available |
| 12 | Inspection: | SGS, BV, third party inspection |
| 13 | Sample: | Sample for free, but you should pay for the freight charge for the samples |
| 14 | Payment: | 30% TT upon placing order and 70% TT when the goods are finished but before shipment. |
| 15 | Packing methods: | Wooden case/pallet with plastic layer,or as per customer's requirements |
Shanxi Midas Industrial Co.,LTD
1. How is your price?
A: Although we have brand-name products, our prices are very favorable and competitive.Because of our best price, customers from all over the world come to purchase our products.
2. How long is your warranty?
A: Our Warranty is 12 month.
3. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
5. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
6. Could you specially design and produce for clients?
A: Sure, we have all kinds of professional engineers.We can design and produce special products according to customers' request. Such as: special size, special control, OEM, etc.
7. What’s the MIDAS main market?
A: Our main market is African, Middle East Countries, South American, Asian.
8. What’s your payment?
1) 100% T/T
2) 30% in advance, others before shipment.
3) L/C
