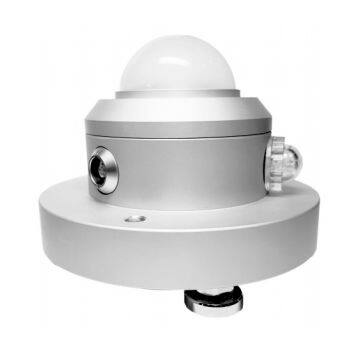

GUVV-T10GC-H6 180° Wide Angle UV Sensor Probe
US$ 0.001 - 0.01
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Genicom
Place of Origin:
South Korea
Model Number:
GUVV-T10GC-H6
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SG01L-A18 UVA-only SiC Based UV Photodiode A = 1.0 Mm2US$ 0.001 - 0.01MOQ: 1 Piece -
SG01L-5 Broadband SiC Based UV Photodiode A = 1.0 Mm2US$ 0.001 - 0.01MOQ: 1 Piece
-
EOPD-150-0-2.5 UV PhotodiodeNegotiableMOQ: 1 Piece
-
SG01S-B18 UVB-only SiC Based UV PhotodiodeNegotiableMOQ: 1 Piece
-
TOCON_A4 UVA Photodetector With Integrated AmplifierNegotiableMOQ: 1 Piece
Brand Name
Genicom
Place of Origin
South Korea
Model Number
GUVV-T10GC-H6
Usage
Other, UV Sensor Probe
Theory
Optical Sensor
GUVV-T10GC-H6 UV Sensor Probe Feature
- Analog Voltage Output
- No power supply needed
- 180 dgrees wide-angle
- Aluminum body for secure durability
- Quartz dome for high UV transmission
- Level instrument
- Replaceable desiccant cartridge
- Sun shield covers (option)
- Waterproof SUS plug & socket cable connection
GUVV-T10GC-H6 UV Sensor Probe Application
- Total UV radiometer
- UV irradiance monitoring
- Measure UV Power from Sunlight
GUVV-T10GC-H6 UV Sensor Probe Absolute Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
Remark |
||
| Min. |
Typ. |
Max |
||||
| Storage Temperature |
Tst |
-40 | 90 | °C |
||
| Operating Temperature |
Top |
-30 | 85 | °C |
||
GUVV-T10GC-H6 UV Sensor Probe Electro-Optical Characteristics (at 25°C)
| Parameter |
Symbol |
Value |
Unit |
Remark |
||
| Min. |
Typ. |
Max. |
||||
| Spectral Detection Range |
λ | 230 | 395 | nm | 10% of Max. | |
| Sensitivity |
S | 2 | mV/mW/cm2 | |||
| Maximum UV irradiance |
IUV |
0 | 100 | mW/cm2 | ||
| Impedance (nominal) |
R |
10 | KΩ | |||
| Field of view |
180 | degrees | ||||
| Directional response (up to 70°) |
5 | % | ||||
| Response Time |
T | 5 | ms | |||
