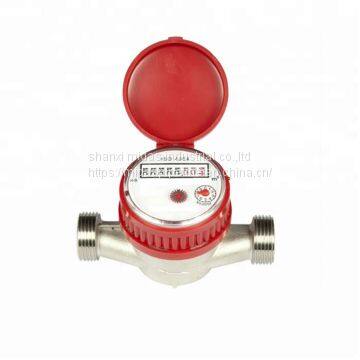

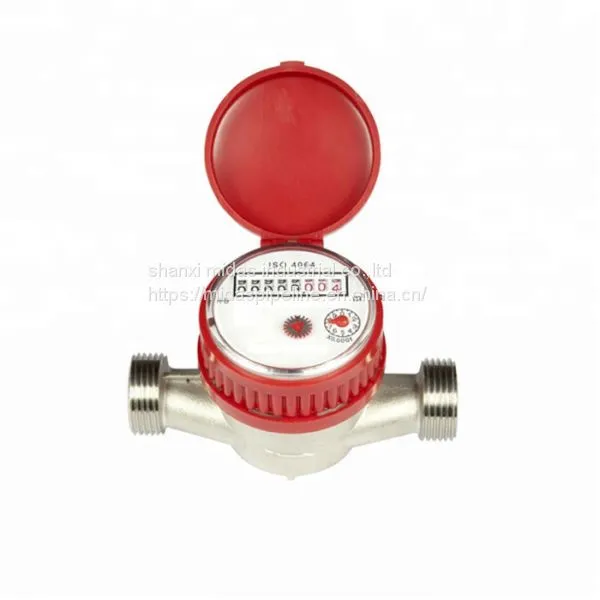

Factory price dry type single jet mechanical water flow meter
| 1 | Product name: | Factory price dry type single jet mechanical water flow meter |
| 2 | Operating condition: | PN: 1.0(10bar) |
| 3 | The water temperature: | Cold water up to 40℃ and hot water up to 90℃ |
| 4 | Standard: | ISO9001, ISO4064 |
| Medium Pressure: | General Water Meter | |
| 5 | Medium Temperature: | Cold(Hot) Water |
| 6 | Size: | DN13~DN32mm |
| 7 | Work Environment: | Liquid Sealed Water Meter |
| 8 | Counter Instructions : | Digital and Analogue |
| 9 | Level Measurement: | B |
| 10 | Application: | Measuring the volume of cold potable water passing through the pipeline |
| 11 | Brand name: | MDS |
| 12 | Certificate: | ISO,SGS and the third party inspection |
| 13 | Delivery detail: | within 20-30 days after receipt the 70% balance |
|
14 |
Packing: | Carton, pallet and as per customer's requirement. |
Quality:
•Liquid sealed register,small and light,easy reading, etc.
•Technical data conform to International Standard ISO4064 class B
Working condition:
temperature:≤40℃
Pressure:≤1Mpa
Maximum Permissible Error:
Qmin→Qt(ex Qt)=±5%;
Qt→Qs(both included)=±2% or ±3%(hot water)
Qmin=Min Flow, Qt=Transition Flow, Qs= Max Flow.
Main Technical Data:
| Tpye | Meter Size | class | Maxflow |
Nominal Flow |
Transitional Flow |
Min Flow |
Min Reading |
Max Reading |
|---|---|---|---|---|---|---|---|---|
| mm | m3/h | L/h | m3 | |||||
| LXS-13D | 13 | B | 3 | 1.5 | 120 | 30 | 0.0001 | 99999 |
| LXS-20D | 20 | B | 7 | 2.5 | 200 | 50 | 0.0001 | 99999 |
| LXS-25D | 25 | B | 5 | 3.5 | 280 | 70 | 0.0001 | 99999 |
| LXS-32D | 32 | B | 12 | 6.0 | 480 | 120 | 0.0001 | 99999 |
Dimensions and weight:
| Type | Size | Length | Heigh | Width | Connecting Thread | Weight | ||
|---|---|---|---|---|---|---|---|---|
| DN | L | L1 | H | W | Connectors | Body | ||
| mm | kg | |||||||
| LXS-13D | 13 | 174/204 | 80/110 | 88 | 80 | R 1/2 | G 3/4B | 0.70 |
| LXS-20D | 20 | 234 | 130 | 88 | 80 | R 3/4 | G 1B | 0.85 |
| LXS-25D | 25 | 280 | 160 | 96 | 80 | R 1 | G 1 1/4B | 1.47 |
| LXS-32D | 32 | 284 | 160 | 123 | 110 | R 1/4 | G1 1/2B | 2.56 |
Packing detail: Carton, pallet and as per customer's requirement.
1. How is your price?
Although we have brand-name products, our prices are very favorable and competitive.
Because of our best price, customers from all over the world come to purchase our products,
2. How long is your warranty?
Our Warranty is 12 month.
3. What’s your payment?
1) 100% T/T
2) 30% in advance, others before shipment.
3) Letter of credit.
4. What’s your beneficiary bank?
1) Alibaba one touch account
2) Alibaba Trade Assurance account
3) Shanxi Midas bank account
4) Paypal
5) Western Union
6) China's domestic RMB account
5. Could you specially design and produce for clients?
Sure, we have all kinds of professional engineers.We can design and produce special products according to customers' request.Such as: special size, special control, OEM, etc.
6. What’s the MIDAS main market?
Our main market is African, Middle East Countries, South American, Asian.
