Home > Products > Water meter > commercial & industrial SCL-61H ultrasonic water meter for residential
commercial & industrial SCL-61H ultrasonic water meter for residential
- 100000 Piece / Pieces per Month
- TIANJIN,QINGDAO
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
Product Details
Brand Name: | MDS | Place of Origin: | China |
Product Description

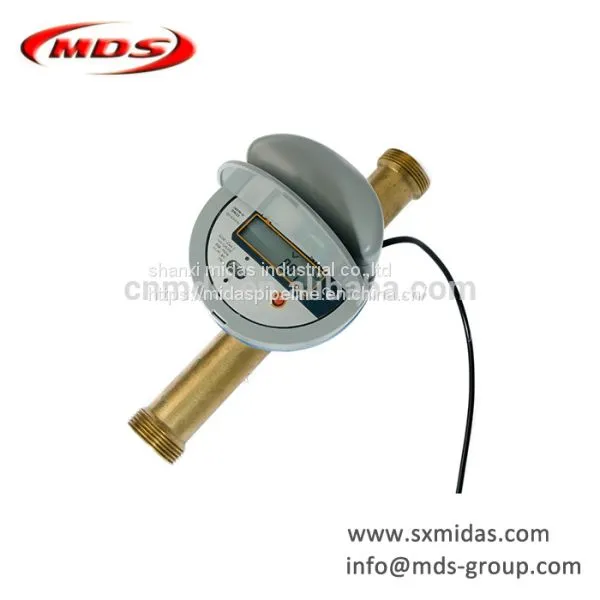

commercial & industrial SCL-61H ultrasonic water meter for residential
1 | Size | DN15mm-DN25mm |
2 | Dynamic Range | 250 |
3 | Medium | Water or other homogeneous fluids in full pipe flow |
4 | Max. Permissible working pressure | 1.6MPa |
5 | Length of Signal cable | 1.3m |
6 | Meter Mounting Position | On water supply pipe |
Technical Data
Special Features
1. Large dynamic range is R250 and (Metrological properties) better than Class D.
2. It is designed with a protection class of IP68. The meter can keep on working under long-term
submersion in water.
3. SCH-6H ultrasonic water meter is working with micro-power consumption technology. (The lifetime of
the battery is over 10 years).
3. A flowrate as low as 1.5L/h can be precisely measured.
4. The meter has no mechanical moving parts. Because of no pressure loss, energy consumption of water
pumps and hence operating cost of water supply enterprise is drastically reduced and the service life will
be longer.
5. The meter enjoys the merits of being compacted in size and high in stability and anti-inerference
capability.
6. Thanks to the application of ultrasonic measuring technology, it is possible to mount the meter at any
angles without being affected in measuring accuracy. Moreover, the pressure loss of pipe flow can be
reduced to a minimum.
7. It supports photoelectric, RS-485 and M-BUS output interfaces and provides Radio Frequency and remote
meter data reading functions to facilitate centralized management of users. Whenever the pipe network
runs abnormally, the abnormality information can be timely reported to upper level.
8. The meter conforms to China national standard GB/T 778-2007 ( Measurement of water in full flow
in closed pipe and cold drinking water meter and hot water meter)
9. Ex-works calibration is made in conformity to China national stardard JJG162-2009(cold water meter)
Shanxi Midas Industrial Co.,LTD
1. How is your price?
A: Although we have brand-name products, our prices are very favorable and
competitive.Because of our best price, customers from all over the world
come to purchase our products.
2. How long is your warranty?
A: Our Warranty is 12 month.
3. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own
delivery costs.
4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to
your request, but you have to bear their own costs incurred during this period
and the spreads.
5. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
6. Could you specially design and produce for clients?
A: Sure, we have all kinds of professional engineers.We can design and produce
special products according to customers' request. Such as: special size, special
control, OEM, etc.
7. What’s the MIDAS main market?
A: Our main market is African, Middle East Countries, South American, Asian.
8. What’s your payment?
1) 100% T/T
2) 30% in advance, others before shipment.
3) L/C
