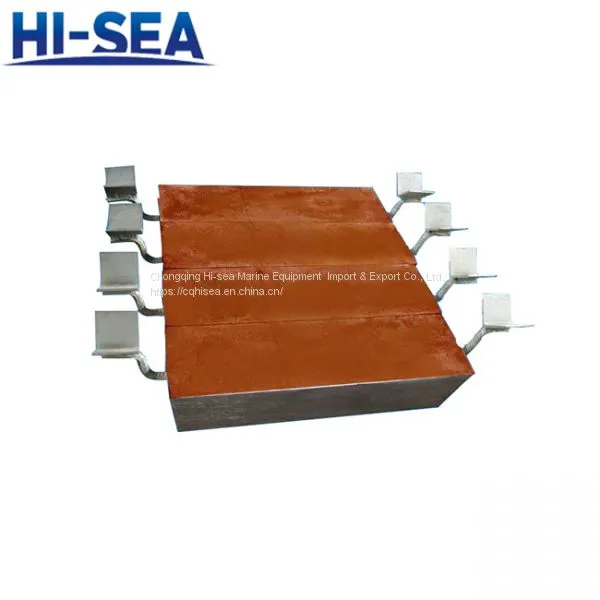

Marine Aluminum Anode For Seawater Cooling System
Description
Aluminum zinc indium system(AZI) sacrificial anode is casted by high purity aluminum, zinc, indium and other metal alloy.
Aluminum alloy anode is produced in line with the implementation of GB4948-2002 Aluminum Zinc Indium Alloy Sacrificial anode.
The performance of aluminum anode is influenced by the chemical composition of the alloy, so we offer different composition of aluminum alloys to meet our customer requirements.
The performance of aluminum anode is influenced by the chemical composition of the alloy, so we offer different composition of aluminum alloys to meet our customer requirements.
Specification
Type(Long strip) |
Specification/mm |
Weight/kg |
Length × (upper bottom + bottom) × high /mm | ||
AE-1 |
1200×（200+280）×150 |
120.0 |
AE-2 |
800×（200+280）×150 |
80.0 |
AE-3 |
1000×（115+135）×130 |
46.0 |
AE-4 |
500×（115+135）×130 |
23.0 |
AE-5 |
1000×（80+100）×80 |
20.0 |
AE-6 |
500×（105+135）×100 |
16.0 |
AE-7 |
500×（80+100）×80 |
10.0 |
AE-8 |
400×（110+120）×50 |
7.0 |
AE-9 |
300×（140+160）×40 |
5.0 |
AE-10 |
200×（90+110）×40 |
3.0 |
Type(disc-shaped) |
Specification/mm |
Weight/kg |
Diameter × height/ mm | ||
AE-11 |
300×60 |
11.5 |
AE-12 |
360×40 |
9.0 |
AE-13 |
300×40 |
7.5 |
AE-14 |
200×50 |
4.0 |
AE-15 |
180×50 |
3.5 |
AE-16 |
120×100 |
2.5 |
Chemical Ingredient
Alloy type |
Al-Zn-In-Sd |
Al-Zn-In-Sn |
Al-Zn-In-Si |
Al-Zn-In-Sn-Mg |
Al-Zn-In-Mg-Ti |
|
Zn |
2.5-4.5 |
2.2-5.2 |
5.5-7.0 |
2.5-4.0 |
4.0-7.0 |
|
In |
0.018-0.050 |
0.020-0.045 |
0.025-0.035 |
0.020-0.050 |
0.020-0.050 |
|
Cd |
0.005-0.020 |
- |
- |
- |
- |
|
Sn |
- |
0.018-0.035 |
- |
0.025-0.075 |
0.018-0.035 |
|
Mg |
- |
- |
- |
0.50-1.00 |
- |
|
Si |
- |
- |
0.10-0.15 |
- |
- |
|
Ti |
- |
- |
- |
- |
- |
|
Impurity, no more than |
Si |
0.10 |
0.10 |
0.10 |
0.10 |
0.1 |
Fe |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
|
Cu |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
|
Al |
Margin |
Margin |
Margin |
Margin |
Margin |
|
Electrochemical performance
Type/Index/Performance |
Open Circuit Potential |
Working Pressure |
Actual Capacitance A・h/kg |
Current Efficiency |
Dissolution Status |
Ordinary Aluminum Alloy Sacrificial Anode |
1.10-1.18 |
1.05-1.12 |
≥2400 |
≥85 |
Corrosion products are easy to fall off , the surface dissolution is even. |
High Efficiency Aluminum Alloy Sacrificial Anode |
1.10-1.18 |
1.05-1.12 |
≥2600 |
≥90 |
|
High Activated Efficiency Aluminum Alloy Sacrificial Anode |
1.45-1.50 |
1.40-1.45 |
≥2080 |
≥70 |
Our Service
Quality Assurance
All our products are pruduced in strict accdrdance with products standard. All products undergo quality inspection before leaving the factory, and qualified products can be sold.
Product Customization Service
In order to allow customers to find the right products, our company can customize products according to customer requirements.
Providing Classification Society Certificates
In order to make you feel at ease, We can supply certificates of Classification Societies: CCS, BV, ABS, LR, DNV-GL, RINA and so on.
Excellent Pre-sale
In order to let you buy the products you need in time, our company provides 7×24 hours of service.
