63mm Bourdon Tube Bottom Vacuum Gauge
Pressure gauge description
Dials Size: 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)Case SS304
Pressure range: 0 -100Mpa,other scale units bar, psi, kg/cm2 etc.optional
Ring: Non, black steel or chrome plated
Movement: Brass,SS304 or SS316SocketBrass,SS304 or SS316
Bourdon tube:Phosphor Bronze,SS304 or SS316
Dial plate and pointer : Aluminum
Window: Glass or Safety glass
Connection sizes :1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threads: Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting: Bottom, back and panel
Accuracy: 2"(50mm), 2.5(63mm)-2.5% ,4(100mm) and 6 (150mm)-1.6%
Pressure limitation : 1:Steady: 3/4x full scale value
2: Fluctuation:2/3x full sacle value
3:Short time:full scale value
Company introduction
One of three biggest pressure gauge manufacturers in China, established in 2000.
Specializes in manufacturing and exporting Pressure gauge,Pressure regulator, Manometer and Pressure thermometer.
We have a strong network that allows us to design and customize products.
We currently produce over 8 varieties, more than 100 series, and about 1, 000 specifications of instruments for various industries, including oil exploration, chemical industry, chemical fiber industry, iron and steel industry, metallurgical industry, power generation plants, food industry and scientific research.
Our products are exported to East Asia such as Korea & Japan, the European Union such as Russia, Germany & Italy,and the Middle East, America. Southeast Asia such as Vietnam, Thailand & Indonesia.
As a well-known manufacturer in China, our factory has approved by CCC, ISO14001, ISO9001, CE, SGS and KS certificates.
We will unswervingly make more efforts to supply competitive products and the best services to all customers.
If you need high quality products, wecome to contact us.
Once cooperation, friends forever.

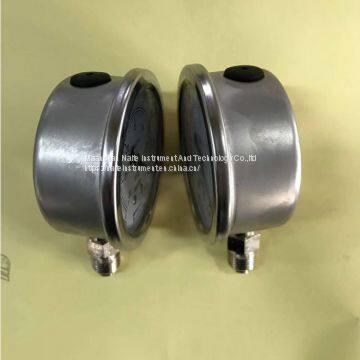

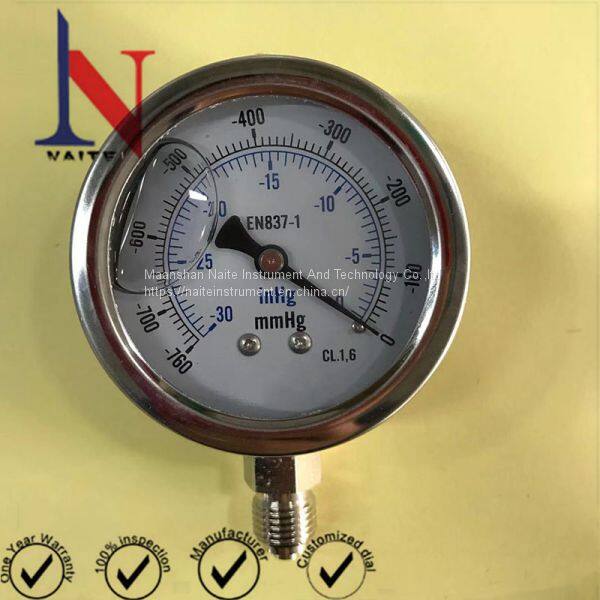

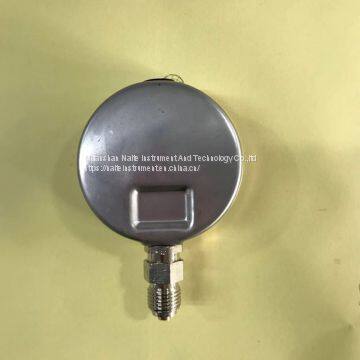

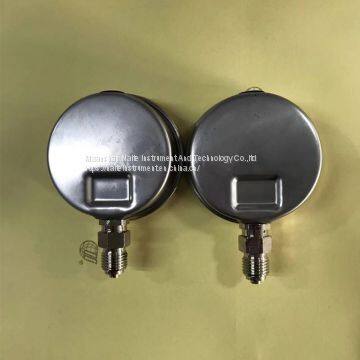

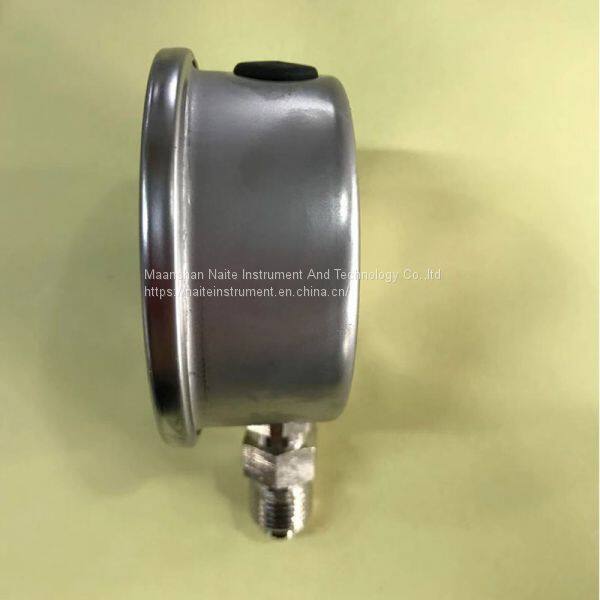

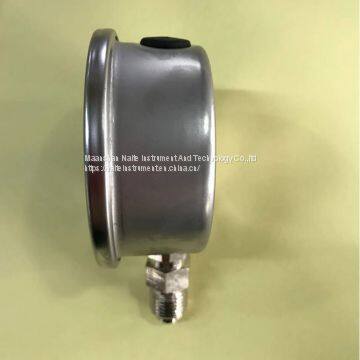

Pressure gauge picture
63mm Bourdon Tube Bottom Vacuum Gauge
Package information：
1, each pressure gauge put into a small polybag, then put into a paper bag, 100 pcs
a carton
2, our package meets export standard
3,According to customer request
4, standard wooden box or pallet
