Stainless Steel Vacuum Pointer Pressure Gauge

Stainless Steel Vacuum Pointer Pressure Gauge

Pressure gauge description

Dials Size: 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)Case SS304

Pressure range: 0 -100Mpa,other scale units bar, psi, kg/cm2 etc.optional

Ring: Non, black steel or chrome plated

Movement: Brass,SS304 or SS316SocketBrass,SS304 or SS316

Bourdon tube :Phosphor Bronze,SS304 or SS316

Dial plate and pointer : Aluminum

Window Glass or Safety glass

Connection sizes :1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case

Connection threads: Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

MountingBottom, back and panel

Accuracy: 2"(50mm), 2.5(63mm)-2.5% ,4(100mm) and 6 (150mm)-1.6%

Pressure limitation : 1:Steady: 3/4x full scale value

2: Fluctuation:2/3x full sacle value

3:Short time:full scale value

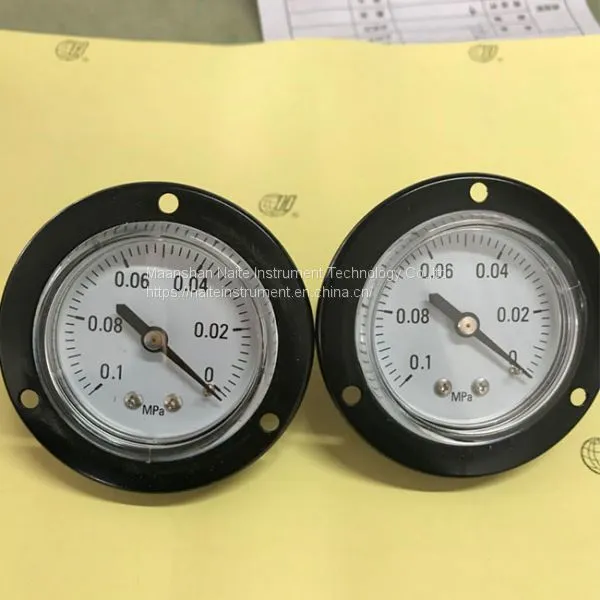

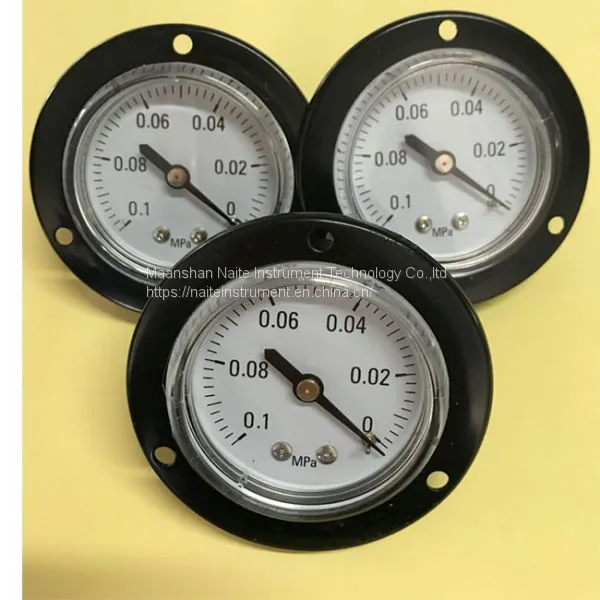

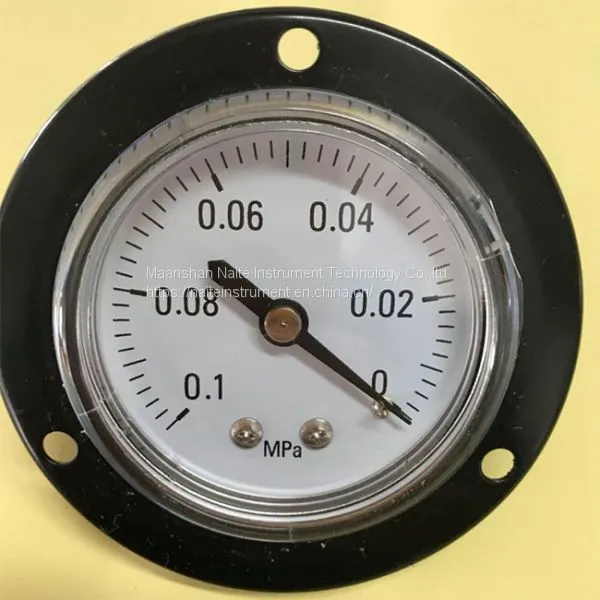

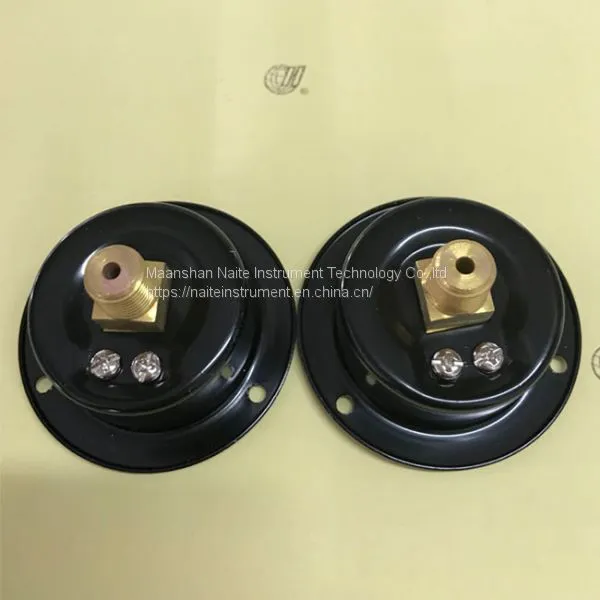

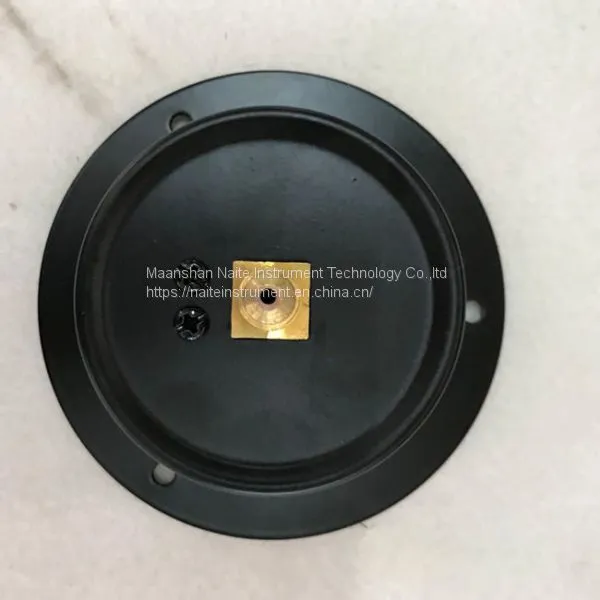

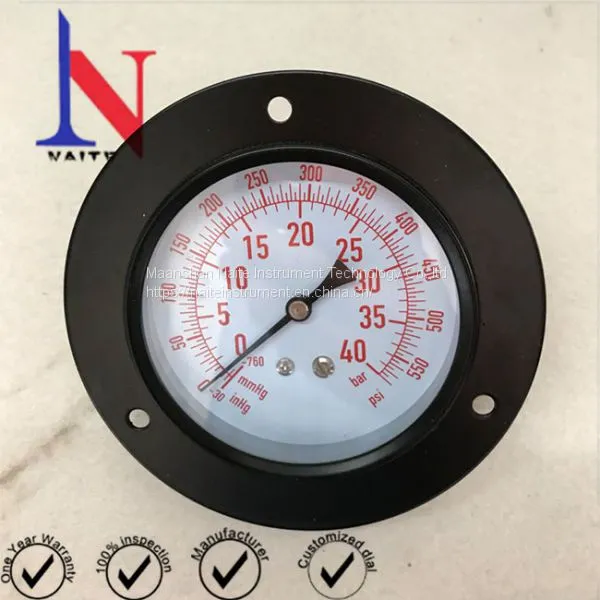

Pressure gauge picture

Stainless Steel Vacuum Pointer Pressure Gauge

Pressure Gauge Package

Stainless Steel Vacuum Pointer Pressure Gauge

Company Picture

Company Introduction

 One of three biggest pressure gauge manufacturers in China,
established in 2000.
 Specializes in manufacturing and exporting Pressure gauge,
Pressure regulator, Manometer and Pressure thermometer.
 We have a strong network that allows us to design and customize
products.
 We currently produce over 8 varieties, more than 100 series,
and about 1, 000 specifications of instruments for various industries
including oil exploration, chemical industry, chemical fiber industry,
iron and steel industry, metallurgical industry, power generation
plants, food industry and scientific research.
 Our products are exported to East Asia such as Korea & Japan, the
European Union such as Russia, Germany & Italy,and the Middle East,
America. Southeast Asia such as Vietnam, Thailand & Indonesia.
 As a well-known manufacturer in China, our factory has approved by
CCC, ISO14001, ISO9001, CE, SGS and KS certificates.
 We will unswervingly make more efforts to supply competitive products
and the best services to all customers.
 If you need high quality products, wecome to contact us.
 Once cooperation, friends forever.
