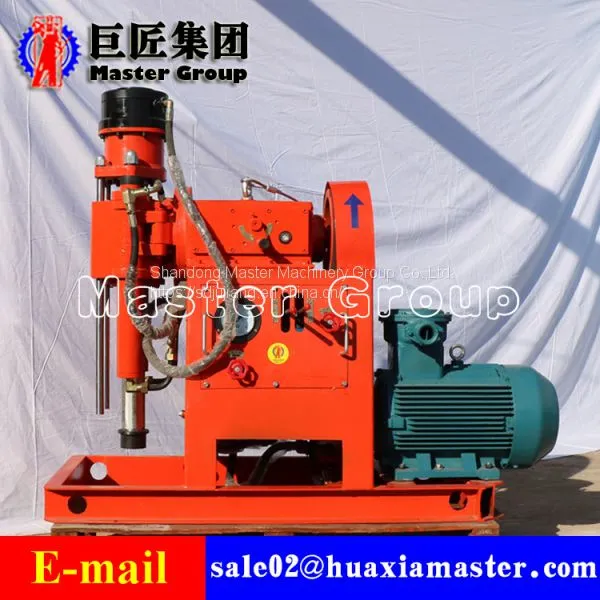

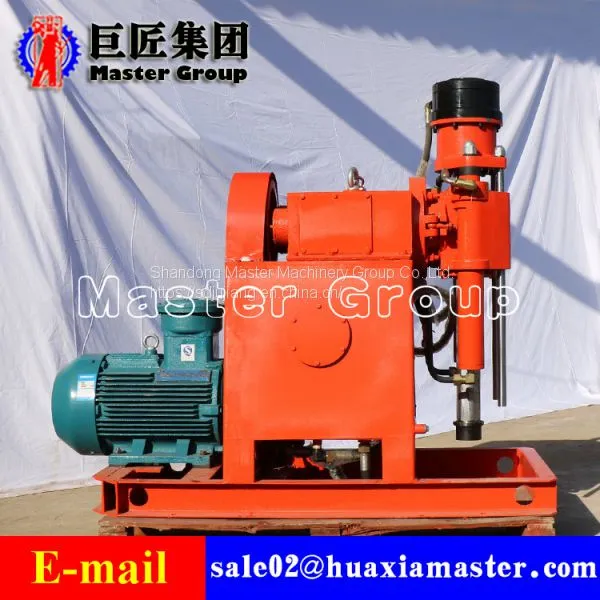

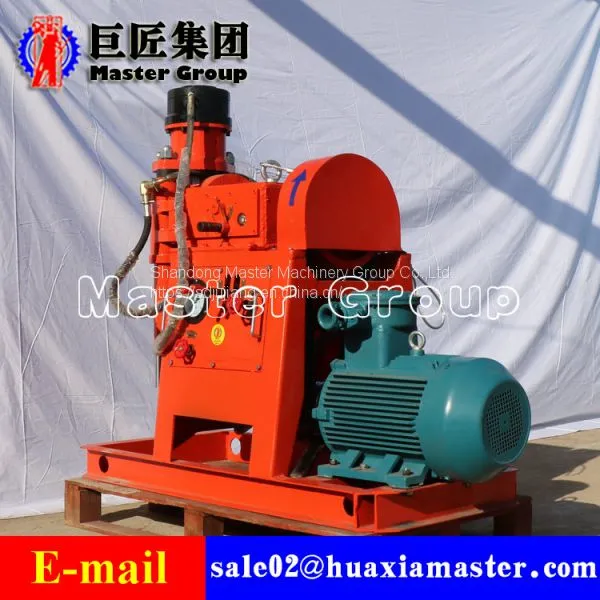

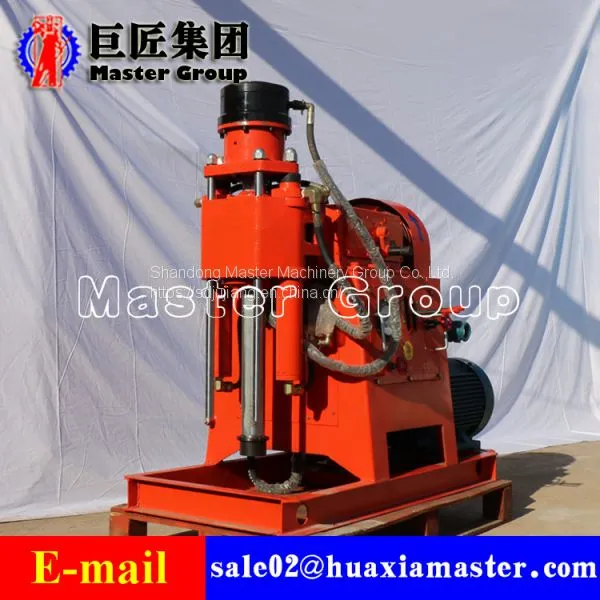

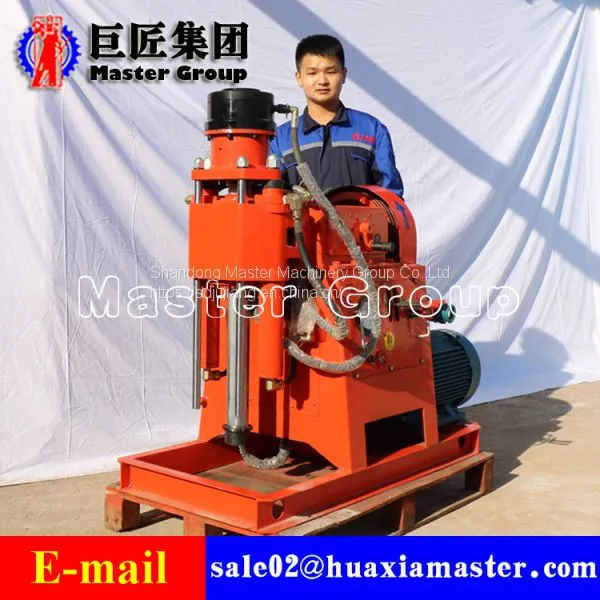

1. The brief introductions of ZLJ650 ground water drilling rig
ZLJ-1200 grouting reinforcement drilling rig is mainly used for drilling holes with different angles in underground mine, tunnel, subway and slope support.
This drill rig adopts mechanical drive, hydraulic feed with small size, light weight, The rig is reliable and convenient to operate.
2. The specifications of ZLJ650 ground water drilling rig
Drilling hole diameter |
50-113mm |
Hole depth |
200m |
Drilling pipe diameter |
42mm |
Open hole diameter |
50-113mm |
End hole diameter |
56-113mm |
Vertical rated speed |
340 192 112 r/min |
Vertical shaft torque rating |
130/ 230/ 400 n.m |
Main shaft angle |
0-360 |
Spindle stroke |
400mm |
System pressure rated |
8mpa |
Feeding force |
9kn |
Elevating power |
12kn |
Winch lifting capacity |
7.35kn |
Drum Capacity |
26.8m |
Wire rope diameter |
8.85mm |
Oil pump type |
YBC-12/80 |
Motor power |
7.5kw |
Dimension |
1200*700*1280mm |
Total weight |
560kg |
