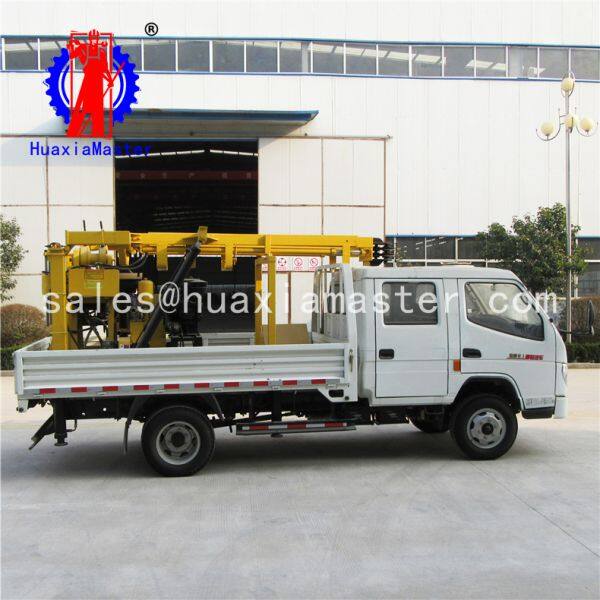

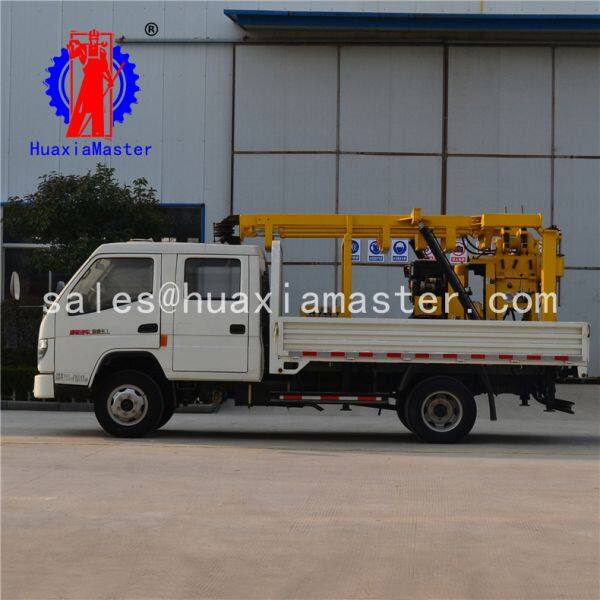

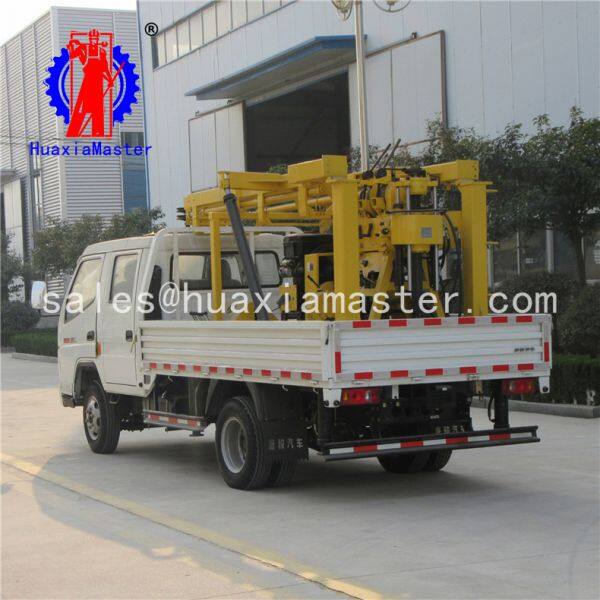

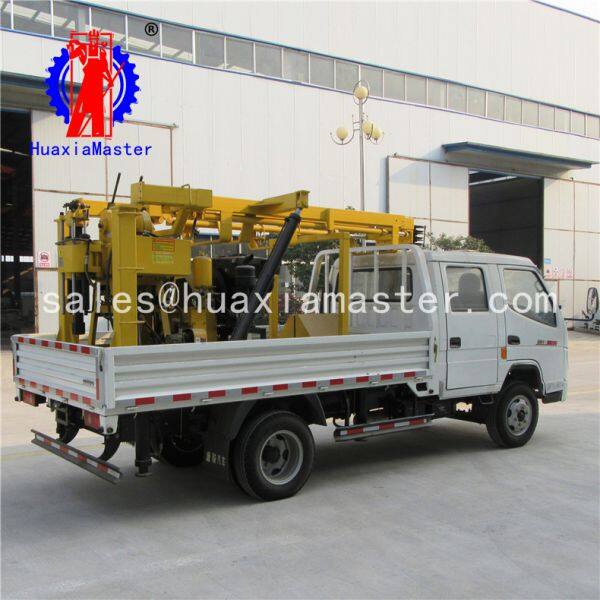

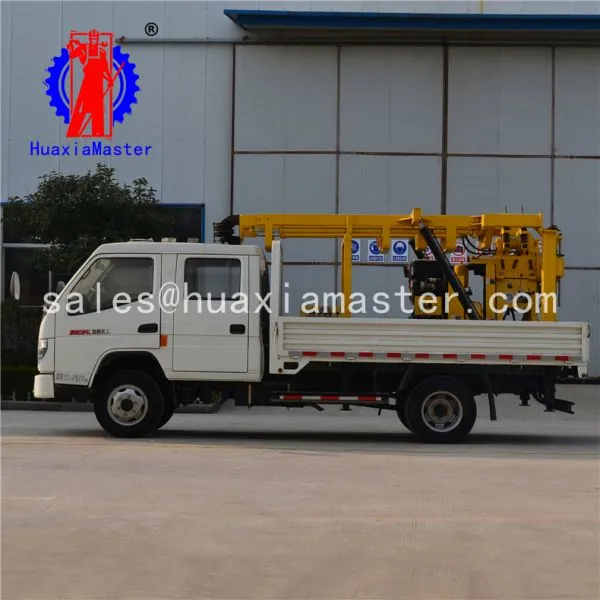

XYC-200 Vehicle-mounted Hydraulic Rotary Drilling Rig for sale
- 100 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A
- 7 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | huaxiamaster | Place of Origin: | China | Model Number: | XYC-200 |
| Type: | Core Drilling Rig | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
| Weight: | 1150kg | Dimension(L*W*H): | 1110*725*965 | Power Type: | Diesel |
| Usage: | Coal | Condition: | New | Power(W): | 14.7kw |
Product Description

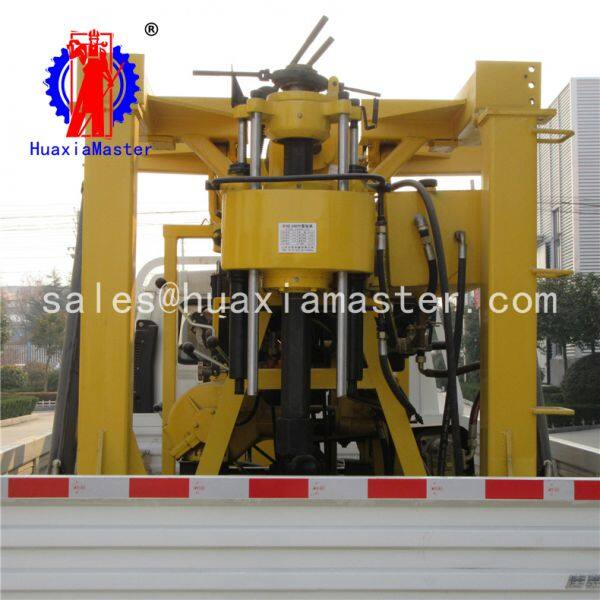

1. Characteristics of XYC-200 vehicle-mounted drilling rig
l XYC-200 is a multi-function hydraulic vehicle-mounted rotary drilling rig.
l the Tang Jun automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
l It is equipped with high pressure,big flow BW160mudpump,which can ensure drilling depth and diameter.
l the rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
l the hydraulic folding mast is safe and convenient to transport
2.Applications of XYC-200 drilling rig
l road and high-rise building foundation exploration
l all kinds of concrete structure inspection holes
l river embankments
l subgrade grouting holes
l drilling and direct grouting
l civil water well
l ground temperature central air conditioners.
3. Parameters of XYC-200 vehicular drilling rig
XYC-200 vehicular drilling rig | |||
Drilling depth(m) | 30-200 | ||
Drilling diameter(mm) | 300-75 | ||
Drilling Angel(mm) | 90-75 | ||
Spindle rotating speed(r/min) | 64/128/287/557 | ||
Spindle stroke(mm) | 450 | ||
Main hoisting capacity (single line)(Kg) | 1600 | ||
Main hoisting line capacity (m) | 35 | ||
Hoisting speed(r/s) | 17/35/75/151 | ||
Wireline diameter(mm) | 12.5 | ||
Mast height(mm) | 7000 | ||
Mast effective height(mm) | 6500 | ||
Kelly/active pipe(mm) | 59*53 | ||
Drill rod(mm) | 42/50/60 | ||
Drill rig weight(kg) | 1150 | ||
Power Unit | Model | ZS1115 diesel engine | |
Rated power | 14.7kw/2200rpm | ||
BW-160 mud pump | Rated flow(l/min) | 160 | |
Rated pressure(mpa) | 1.3 | ||
Driving power(kw) | 5.15 | ||
Main machine weight (kg) | 190 | ||
Dimension(mm) | 1110*725*965 | ||
Chassis
| Model | 95hp light truck The 3.3 meter steeplechase double light card | |
Drive mode | 4*2 | ||
Power unit | Model | Quanchai 4B2-95C40 | |
Emission standard | GB3847-2005,GB17691-2005Ⅳ | ||
Rated power(kw) | 70 | ||
Rotating speed(r/min) | 3200 | ||
