Model NO:

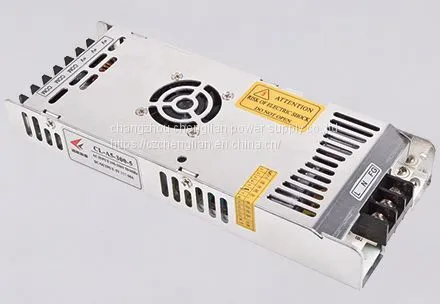

CL-A6-300-5, 5V 60A 300W
CL-A6-300-4.5, 4.5V 60A
CL-A6-300-4.2, 4.2V 60A
Input Parameter:
Input Voltage Range: 200~264Vac
Input Frequency Range: 47-63HZ
AC Current: ≤5.0A(AC220V)/6A(AC110V)
Input inrush current
Output Parameter:
Dc Voltage Range:5 V
Output voltage adjustment range: 4.8V-5.2V
Rated Current: 60A
Max power: 300W
Ripple & Noise: ≤300mVp-P
Efficiency (Typ):≥81.5% Vin=220Vac,25℃, rated load
Voltage Tolerance:±2%
Power on delay time
Protection:
OCP(70-95A)
OVP(5.5V-6.5V)
OTP(60℃~80℃, auto recovery after the temperature is down)
SCP(Hiccup mode, auto recovery after restart)
Safety&EMC:
EN60950-1,EN55022
Hi-pot: I/P-O/P: 2.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
Leakage current
Others:
Working Temperature:-20℃ ~ +70℃
Cooling: ventilate by DC Fan
Working Humidity:5%~90%RH
Storage temperature: -20℃~+85℃
Dimension (L*W*H):212×82×31.5mm
Carton Dimension: 42.3*27.3*27.5CM
Packing:30PCS/ 16.5KG/CTN/0.03CBM
MTBF:50K hours (MIL-HDBK-217F (25 )
