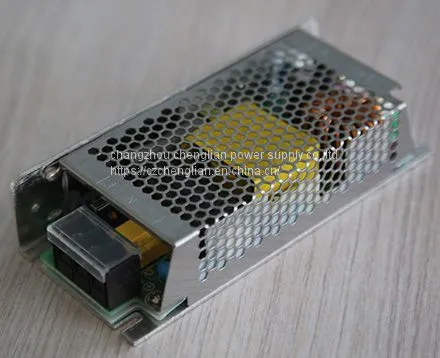

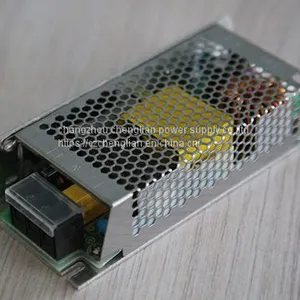

Help Center4.2V 4.5V 5V 40A 200W LED Power Supplies for Indoor Exterior Display Screen Full Color Video Wall
Related Products
-
5V 60A 300W LED Power Supplies for Indoor Exterior Display Screen Full Color Video WallUS$ 13 - 15MOQ: 1000 Pieces -
4.5V 5V 60A Slim 300W LED Power Supplies for P6 Indoor Led ScreensUS$ 13 - 15MOQ: 1000 Pieces
-
4.2V 4.5V 5V 60A LED Power Supply for Led Display Screen Video Walls Running LinesUS$ 13 - 15MOQ: 1000 Pieces
-
5V 4.5V 4.2V 80A 400W Slim Led Power Supplies Indoor Outdoor Led Display ScreensUS$ 14 - 16MOQ: 1000 Pieces
-
5V 80A 400W LEd Power Supply Double Fan Cooling for Outdoor Led DisplaysUS$ 14 - 16MOQ: 1000 Pieces
Model NO:
CL-AS1-200-5A, 5V 40A 200W
CL-AS1-200-5B, 5V 40A 200W
Input Parameter:
Input Voltage Range: 200～264Vac
Input Frequency Range: 47-63HZ
AC Current: ≤3.0A(200Vac, full load)
Input inrush current220Vac input, 25℃ cold start)
Empty power consumption200-264Vac input)
Output Parameter:
Dc Voltage Range:5 V
Rated Current: 35A( NO Auxiliary heat sink), 40A(installed an Auxiliary heat sink between the power supply bottom case and LED screen case)
Max power: 200W
Ripple & Noise: ≤300mVp-P
Efficiency (Typ):≥88.5% Vin=220Vac,25℃, rated load
Voltage Tolerance:±2%
Power on delay time
Protection：
OCP(45-60A)
SCP(Hiccup mode, auto recovery after fault condition is removed)
Safety&EMC：
EN60950-1,EN55022
Hi-pot: I/P-O/P: 1.5KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
Leakage currentAC240V)
Others:
Working Temperature:-10℃ ～ +50℃
Cooling: ventilate by air convection
Working Humidity:5%～90%RH
Storage temperature: -20℃～+85℃
Dimension (L*W*H):136*58.5*30mm
Carton Dimension: 42.3*27.3*27.5CM
Packing:80PCS/ 25KG/CTN/0.03CBM
MTBF:50K hours (MIL-HDBK-217F (25 )
