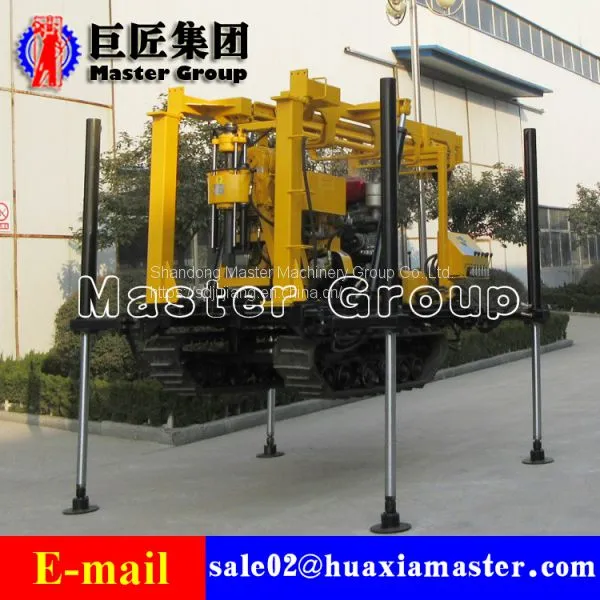

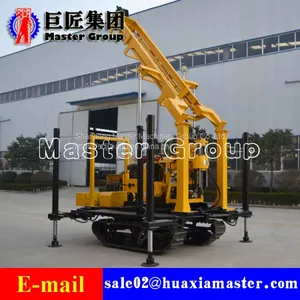

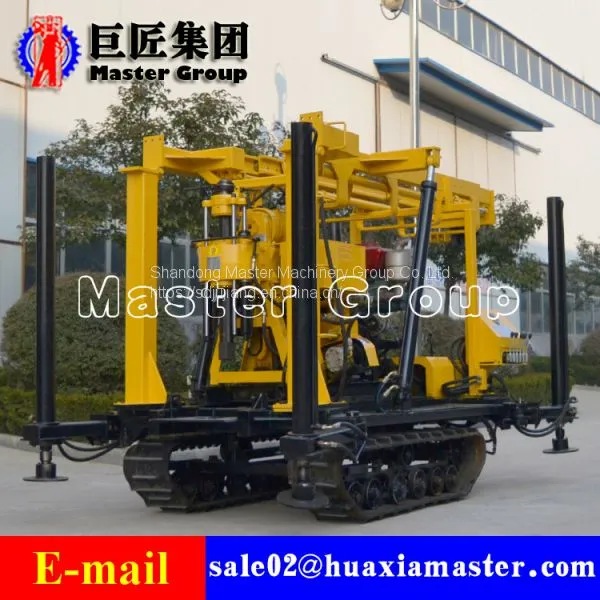

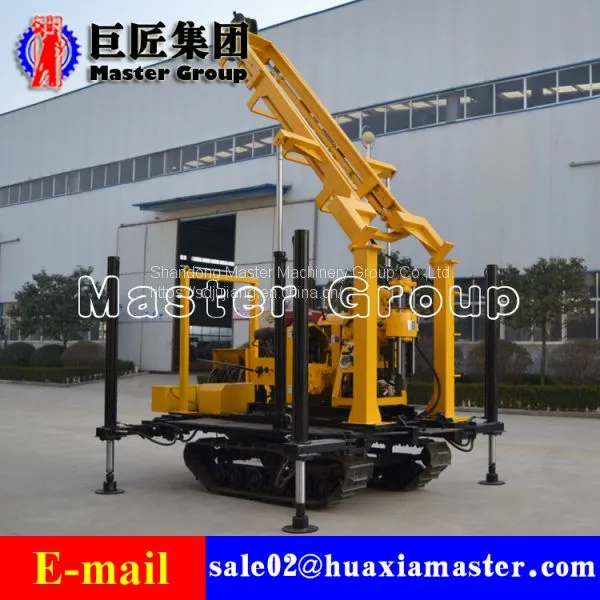

Help CenterSmall Portable Full Hydraulic XYD-130 Crawler Hydraulic Rotary Drilling Rig Water Well Drilling Rig Machine for Sale
Related Products
-
Light Weight Portable HZ-200Y Hydraulic Rotary Drilling Rig/water Well Drilling Rig Machine PriceUS$ 1200 - 1300MOQ: 1 Set -
Portable Hydraulic Water Well Drilling Rig/Water Well Drilling and Rig Machine for SaleUS$ 1200 - 1300MOQ: 1 Set
-
XYX-200 Wheeled Hydraulic Rotary Drilling Rig Core Drilling Rig Machine for SaleUS$ 1200 - 1400MOQ: 1 Set
-
Made in China XYD-200 Crawler Hydraulic Rotary Drilling Rig Core Drilling Rig Machine for SaleUS$ 1200 - 1400MOQ: 1 Set
-
Hot Sales Portable XYC-200 Vehicle-mounted Hydraulic Rotary Drilling Rig PriceUS$ 1200 - 1300MOQ: 1 Set
1. The features of XYD-130 crawler drilling rig
The drilling rig adopts the automatic Telescopic style with two high strength oil cylinder support, a set of hydraulic valve control rigs operating supine, which is time-saving, safe and reliable to maximize the benefits for users.
The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce car body vibration, and reduce fuel consumption greatly. It can walk on urban roads without hurting the road surface.
The chassis is equipped with four high strength threaded legs (or hydraulic high leg). The installation and adjustment is fast and convenient. It can be used for leveling of work plane, loading and unloading vehicle, which reduces the hoisting cost and improves efficiency and works as auxiliary support.
The rig uses 48V electricty to start the diesel engine , which greatly reduces the labor usage, especially in the cold season. When the diesel engine has difficulty activiting, this starting mode shows greater advantages.
2. Technical parameters of XYD-130 crawler drilling rig
XYD-130 crawler drilling rig | |
Drilling depth |
130m |
Maximum opening diameter |
220mm |
Diameter of the end hole |
75mm |
Drilling rod caliber |
50mm |
Drilling angle |
90°-75° |
Drill weight (no include power) |
2600kg |
Spindle | |
Spindle speed |
142/285/570 r/min |
Spindle stroke |
450mm |
Hoist | |
Max single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64 m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Wire rope capacity |
27m |
Mud pump | |
Type |
horizontal single urn twin-action |
Displacement |
95 /77L/min |
Maximum pressure |
1.2mpa |
Work pressure |
0.7mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
