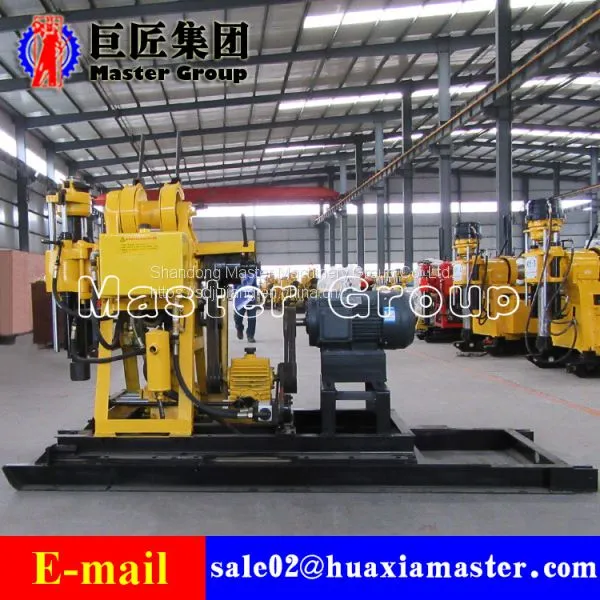

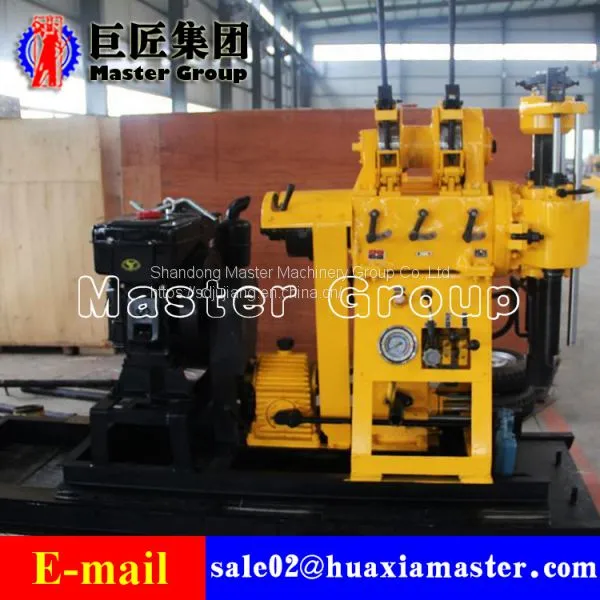

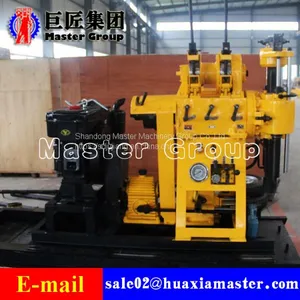

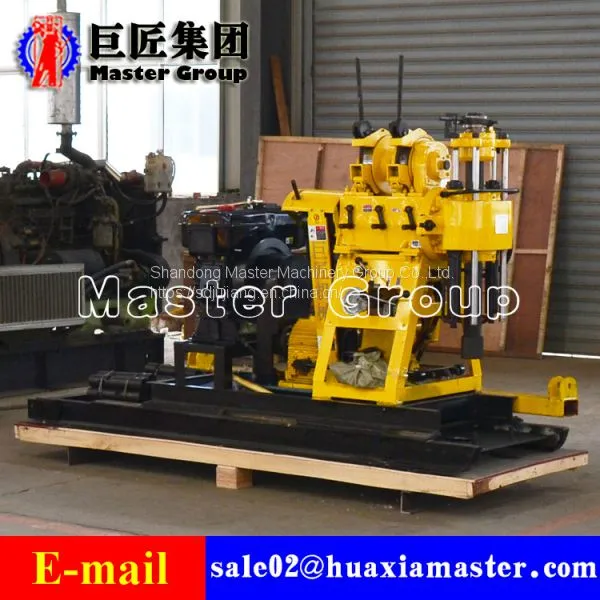

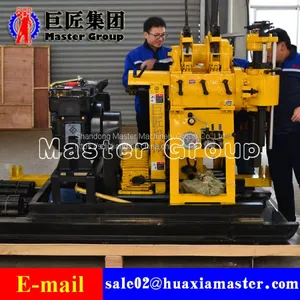

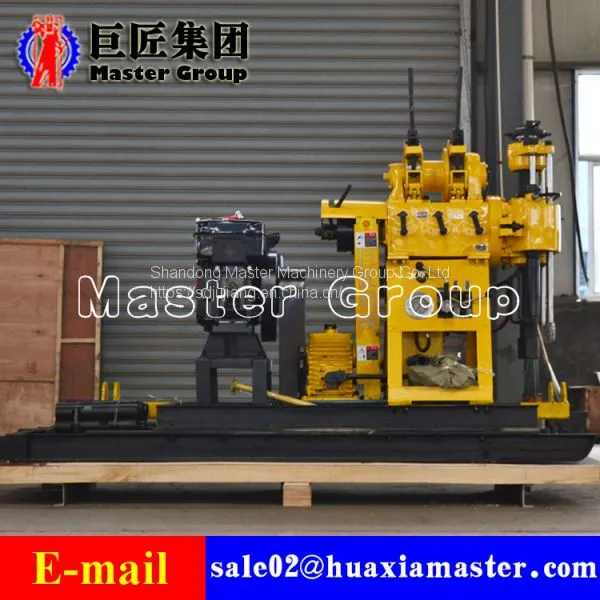

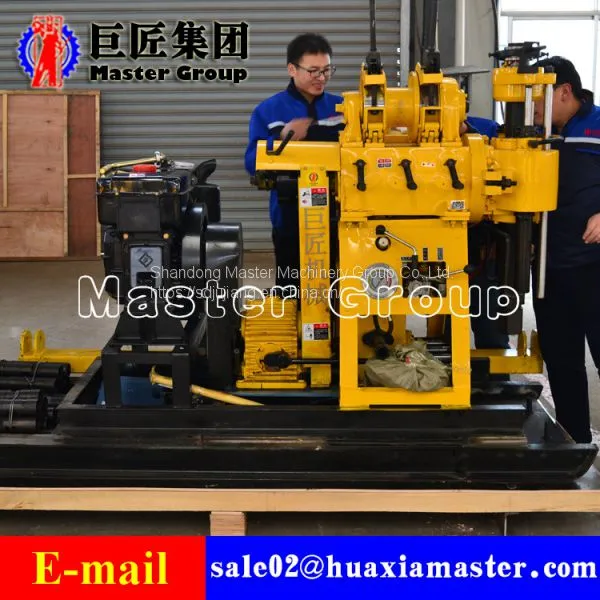

1. Features of HZ-200YY hydraulic drilling rig
l the highest speed can reach 1045r/min with 5 gears, which improves drilling efficiency
l adopted 53x59 drilling rod, which has high rigidity and strong delivery torque.
l equipped with national patent technology-taper clutch, made the machine easy to operate and free of maintenance.
l using large module planetary gear and adding supporting frame, which highly increased hoisting and braking ability of the winch.
l vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
2. Parameters of HZ-200YY hydraulic drilling rig
Max open hole diameter |
300mm |
End hole diameter |
75mm |
Drill rod diameter |
60mm |
Drilling angle |
90 |
Drill weight (without power) |
975kg |
Triangle conveyer belt |
B950 * 4; B1700 * 3 |
Main machine moving distance |
300mm |
Power |
Diesel engine 22HP |
Electric motor 15kw | |
Spindle | |
Spindle speed |
64/128/287/557r/min |
Spindle stroke |
450mm |
Hoist | |
Max. lifting capacity |
2400kg |
Single line lifting speed |
0.41/0.82/1.64 m/s |
Wire rope diameter |
13mm |
Wire rope length |
35m |
Reel diameter |
140mm |
Hug floodgate diameter |
260mm |
Hug floodgate belt width |
70mm |
Mud pump | |
Type |
Horizontal single-urn twin-action |
Displacement |
Diesel engine 170L/min |
Electric motor 150L/min | |
Maximum pressure |
3mpa |
Work pressure |
1.5mpa |
Inlet pipe diameter |
40mm |
Outlet pipe diameter |
30mm |
Triangle conveyer belt |
B1728mm |
