Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Image, Seismic Instrument, Electromagnetic Instrument, Borehole Camera, Borehole Logging System, Water Level Meter; Borehole Drilling Equipment including Core/ Water Well/ Tunnel/ Engineering/ Anchor Drilling Rigs&Accessory and Geodetic Surveying Instrument(GNSS RTK System, Total Station, GIS Mapping and Echo Sounder.)
Plus GNSS RTK System GPS & GNSS Surveying Tools China Supplier

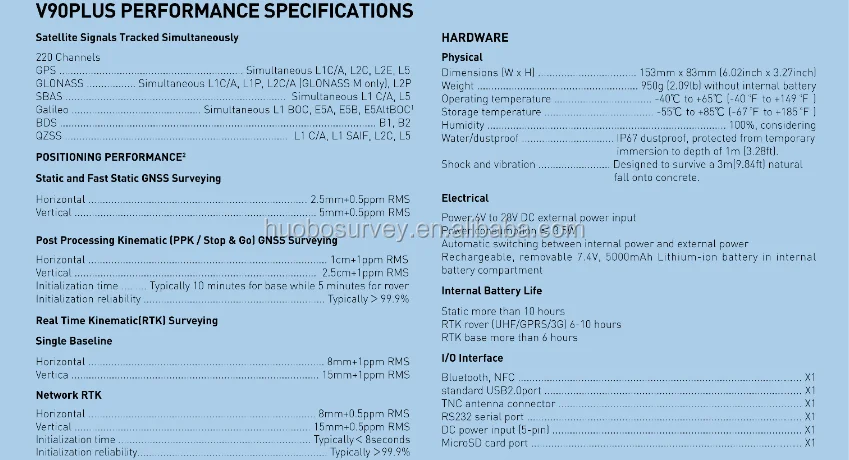

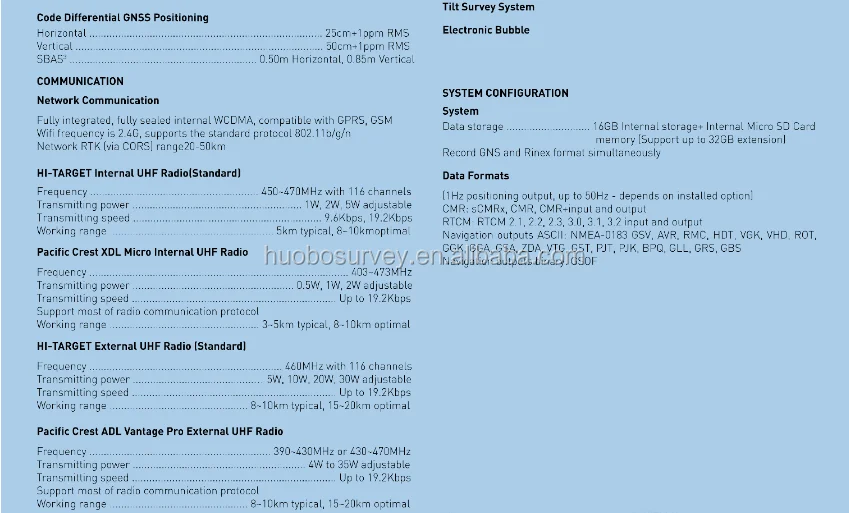

Technical Specification
Product Features

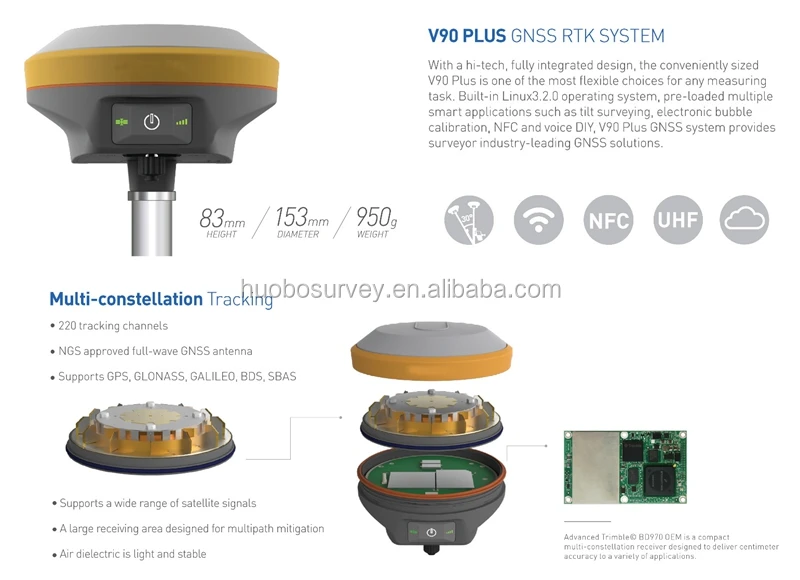

V90 PLUS GNSS RTK GPS
With a high-technical, fully integrated design, the conveniently sized V90Plus is one of the most flexible choices for any measuring task. Built-in Linux3.2.0 operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration, NFC and voice DIY, V90Plus GNSS system provides surveyor industry-leading GNSS solutions.
With a high-technical, fully integrated design, the conveniently sized V90Plus is one of the most flexible choices for any measuring task. Built-in Linux3.2.0 operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration, NFC and voice DIY, V90Plus GNSS system provides surveyor industry-leading GNSS solutions.
Small and lightweight
· Only weighs 950g.
· Measures Diameter 153mm x Height 83mm.
· Only weighs 950g.
· Measures Diameter 153mm x Height 83mm.
Multi-constellation Tracking
· 220 tracking channels
· Supports GPS, GLONASS, GALILEO, BDS, SBAS
· NGS approved full-band GNSS antenna
· 220 tracking channels
· Supports GPS, GLONASS, GALILEO, BDS, SBAS
· NGS approved full-band GNSS antenna
Smart Application
· Offers tilt survey with a maximum tilt angle of 30 degrees.
· Supports electronic bubble calibration
· The internal NFC module makes Bluetooth communication quick and easy.
· Intelligent voice assistance guides field operations. Voice can be DIY.
· Standard Rinex data and HI-TARGET raw data recorded simultaneously.
· Offers tilt survey with a maximum tilt angle of 30 degrees.
· Supports electronic bubble calibration
· The internal NFC module makes Bluetooth communication quick and easy.
· Intelligent voice assistance guides field operations. Voice can be DIY.
· Standard Rinex data and HI-TARGET raw data recorded simultaneously.
Optional Transceiver UHF Radio
· The transceiver UHF radio enables switchable working modes between base and rover.
·Three types of internal UHF radio provide different frequencies based on users requirements. The Pacific Crest TrimTalk
· The transceiver UHF radio enables switchable working modes between base and rover.
·Three types of internal UHF radio provide different frequencies based on users requirements. The Pacific Crest TrimTalk
