Home > Instruments & Meters > Test Instrument > Test Machine > Efficient & Intelligent GNSS RTK System Optional Transceiver UHF Radio
Efficient & Intelligent GNSS RTK System Optional Transceiver UHF Radio
US$ 1000 - 5000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GOLD
Place of Origin:
China
Model Number:
V60
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Ningbo, Shenzhen, Guangzhou etc.
Delivery Detail:
7 days
Related Products
-
Lightweight Plus GNSS RTK System Land Surveying & Measuring ToolsUS$ 1000 - 5000MOQ: 1 Set -
Satellite Signals Tracking Plus GNSS RTK System Surveying SupplierUS$ 1000 - 5000MOQ: 1 Set
-
High Precision Surveying Plus GNSS RTK System Single BaselineUS$ 1000 - 5000MOQ: 1 Set
-
Portable GNSS Surveying Instrument RTK GPS System 220 ChannelsUS$ 1000 - 5000MOQ: 1 Set
-
Compact & Portable GNSS RTK Survey System With High Accuracy PriceUS$ 1000 - 5000MOQ: 1 Set
Brand Name
GOLD
Place of Origin
China
Model Number
V60
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Imaging, Seismic Instrument, Magnetic Instrument, Borehole Camera, Borehole Logger, Drilling Equipment&Accessory and Geodetic Surveying Instrument.
Efficient & Intelligent GNSS RTK System Optional Transceiver UHF Radio

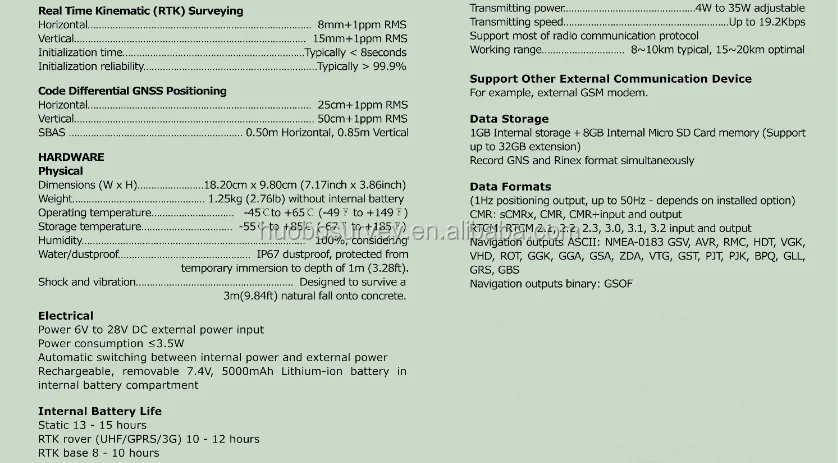

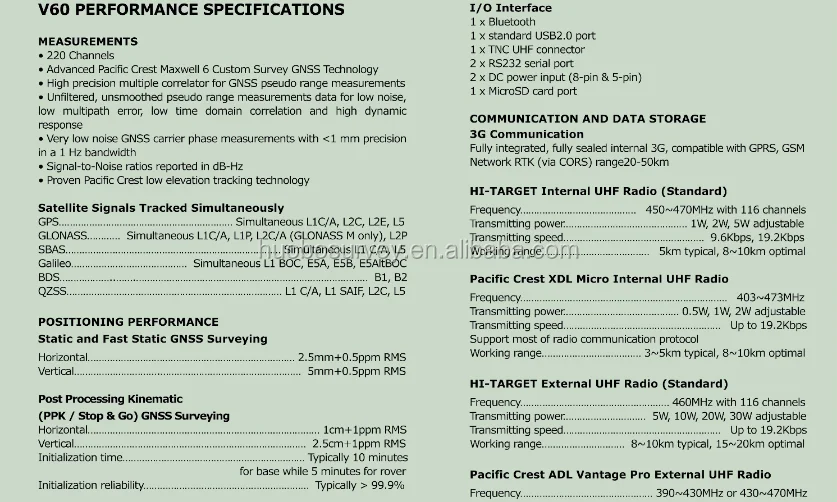

Technical Specification
Product Features
Linux Operation System
ARM 9G20 400MHz CPU, embedded Linux OS to support faster data transmission.
Intelligent Operation
*Equipped with smart speaker guiding during the whole operation. Voice assistance can help you master V60 operation quickly. Language can be customized.
*Industrial LED display screen on its front control panel to show all information and status of the work.
*Many onebutton operations make your work easily. Base setup by one button can choose base coordinate from base list automatically.
*Automatic recording system log makes receiver diagnosis easy.
RINEX Storage
The static data can be saved directly in RINEX format. The V60 is fully compatible with other brands’ receivers.
Quick Upgrade
Just copy the updated firmware to the V60, then restart to finish the upgrade in a few seconds.
Multi Constellation Tracking
*220 tracking channels.
*Supports GPS, GLONASS, GALILEO, BDS, SBAS.
*Built-in NGS Approved Antenna.
High Power Transceiver UHF Radio
*The transceiver UHF radio enables the working mode switchable between base and rover.
*5 watts (Max.) HI-TARGET internal UHF radio and 2 watts (Max.)Pacific Crest micro XDL internal UHF radio are optional
*Pacific Crest TrimTalk
ARM 9G20 400MHz CPU, embedded Linux OS to support faster data transmission.
Intelligent Operation
*Equipped with smart speaker guiding during the whole operation. Voice assistance can help you master V60 operation quickly. Language can be customized.
*Industrial LED display screen on its front control panel to show all information and status of the work.
*Many onebutton operations make your work easily. Base setup by one button can choose base coordinate from base list automatically.
*Automatic recording system log makes receiver diagnosis easy.
RINEX Storage
The static data can be saved directly in RINEX format. The V60 is fully compatible with other brands’ receivers.
Quick Upgrade
Just copy the updated firmware to the V60, then restart to finish the upgrade in a few seconds.
Multi Constellation Tracking
*220 tracking channels.
*Supports GPS, GLONASS, GALILEO, BDS, SBAS.
*Built-in NGS Approved Antenna.
High Power Transceiver UHF Radio
*The transceiver UHF radio enables the working mode switchable between base and rover.
*5 watts (Max.) HI-TARGET internal UHF radio and 2 watts (Max.)Pacific Crest micro XDL internal UHF radio are optional
*Pacific Crest TrimTalk
