One.Product data:

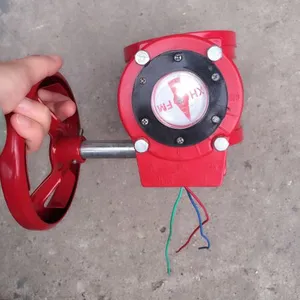

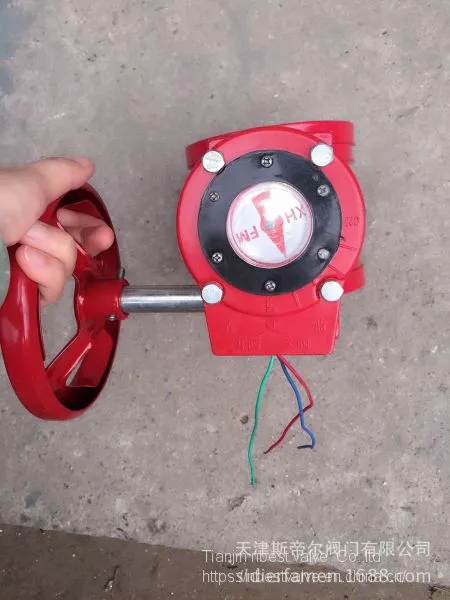

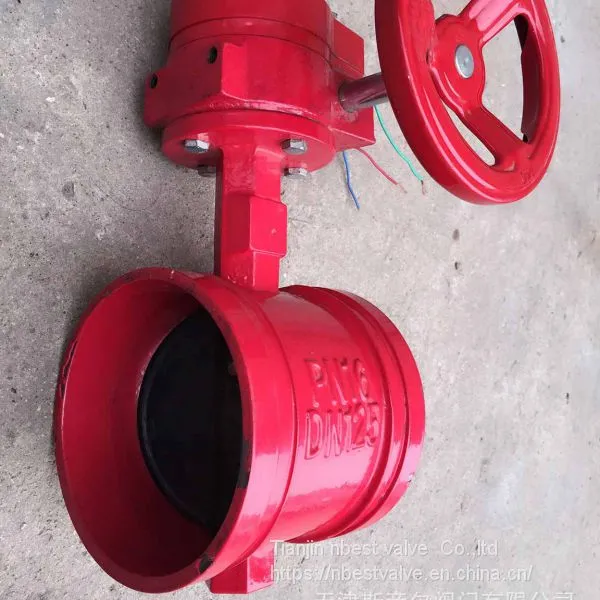

Grooved Type Fire Fighting Water Handle Butterfly Valve
Feature of 1 inch butterfly valve manufacturers:
grooved end butterfly valve is used for cutting off or throttling in pipelin for water supply in fire protection system. It is easy to assemble comparing with wafer butterfly valve.
1)This valve is made up with the foreign advanced know-how and designed via several
improvements and holds quick mountable, simple, reliable, light flexibly operable,
easily repairable etc. Features, as well as a good tightness and desirable quick connection
with fittings.
2)Valve parts in the assembly, should remove burrs, shap edges and drity.etc ; Applicable
medium: Water, oil, gas and other causticity medium (Different raw material for different
medium)
3)Suitable for water supply and drainage, fire fighting, petroleum, chemical industry. Medicine,
steel and iron etc. Fields as breaking adjusting the pipe line therein
Materials of major parts:
| Part Names | Part Materials | ||||||
| Body | Cast Iron | Ductile Iron | |||||
| A126 B | GG25 | FC 20 | A536 | A395 | GGG40 | GGG50 | |
| Disc | Cast Iron or Ductile Iorn | ||||||
| Stem | SS410/SS420/SS416/SS304/SS316 | ||||||
| Seat/Seat Ring | SS304/316+NBR/EPDM | ||||||
| Packing | Graphite/PTFE | ||||||
| Gasket | SS304+Graphite/SS304+Graphite | ||||||
| Suitable Medium | Water, Waste Water, Sewage | ||||||
| Suitable Temperature | -29~120 | ||||||
Main size of 1 inch butterfly valve manufacturers:
Performance specification:
| Nominal pressure | 1.0 | 1.6 | 2.5 | |||
| Test pressure | Body strength | 1.5 | 2.4 | 3.75 | ||
| sealing performance | 1.1 | 1.76 | 2.75 | |||
| Applicable medium | Materials | Cast iron, Ductile cast iron | ||||
| Medium | Water, steam, oil, air | |||||
| Working temperature | Sealing surface | Rubber | Nitrile rubber | EPR | ||
| Temperature | ≤60 | ≤80 | ≤250 |
|||
Two.Related products
Patent products are the core competitiveness of enterprises. Products including butterfly valves, gate valves, ball valves, check valves, globe valves, Y type strainer, water power controlling valves and pressure regulating valves. With pressure rating ranging from 0.6Mpa to 10Mpa and port size from DN40 to DN3000. These valves can be operated manually, electrically, pneumatically, hydraulically, and elector-hydraulically, with reference to ANSI, API, DIN, BS, JPI, and JIS standards and China's GB standards.
Three.Company profile
Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.
Four.Aplication Area
a. Domestic sewage treatment.
b. industrial wastewater treatment.
c. industrial irrigation treatment.
Five.Packing and Freight
Six.FAQ
Q: Are you trading company or manufacture?
A: We are factory located in Tianjin, China.
Q: What's your product range?
A: We specialize in product butterfly valves, gate valves, check valves, Y type strainer, water controlling valves,motorized valves,pneumatic valves,hydraulic valves and other pipe accessories.
Q: What's execution standard?
A: ISO/ANSI/DIN/JIS/EN/GOST standard.
Q: What's your strong product?
A: Concentric butterfly valves, grooved butterfly valves, dual plate check valves.
Q: Do you provide sample? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q: How long is your delivery time?
A: Generally it is 7 days if the good are in stock, or it is 20 days if the goods are not in stock, it is according to the quantity.
Q: What is your terms of payments?
A: Payment ≤10000 USD, 100% in advance. Payment ≥10000USD, 30% T/T or other ways in advance, balance before shipment.
