Gas Permeability Tester Transmission Testing Machine GTR/OTR
- 1000 Set / Sets per Month
- Jinan
- T/T L/C
- 8 days
- Gas Permeability Tester Manufaturer ASTM UTM
- Plastic Film Gas Permeability Tester ASTM ISO
- Gas Permeability Tester Flexible Packaging Plastic Film ASTM Lab Testing Machine
- Gas Chromatograph GC-7960
- High Precision Water Vapor Permeability Tester AC 220V 50Hz Less 3mm Thickness
- Flexible Films Water Vapor Permeation Tester For Laboratory WVTR-2101
Product Details
Brand Name: | Systester | Place of Origin: | China | Model Number: | GTR-7002 |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description

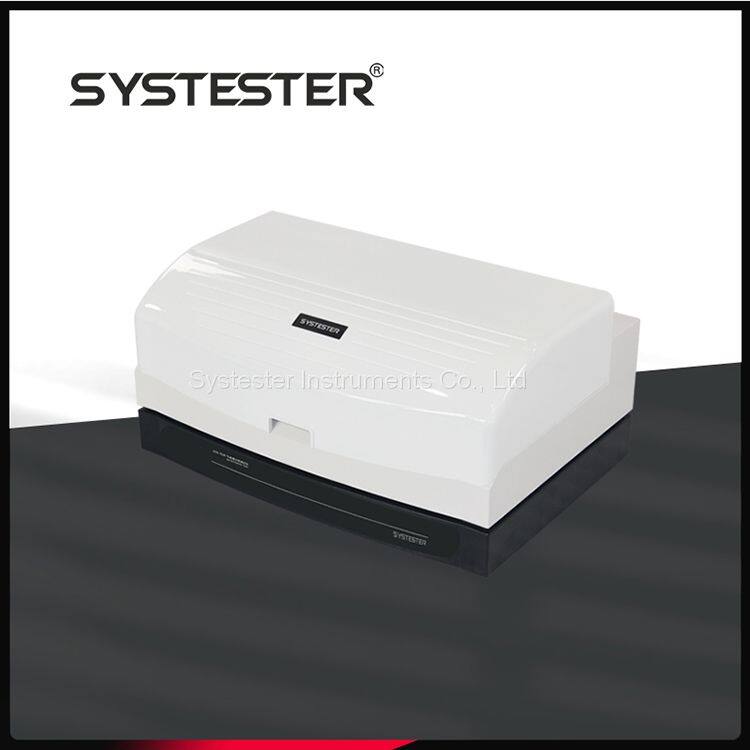

Gas Permeability Tester Transmission Testing Machine GTR/OTR
Application
Gas Permeability Tester is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, laminated films, high barrier materials, sheeting, metal foils, rubber, tires and permeable membranes.
Gas Permeability Tester Transmission Testing Machine GTR/OTR
Features
Vacuum differential pressure method
Patent technology
3 specimens test simultaneously and independently
Computer control
One-button test, test automatically through whole process
High accuracy vacuum sensors embedded in
3 Chambers with independent temperature sensor
Test under various RH conditions with Humidity generator (optional)
Environment temperature and humidity sensor inside
Permeability coefficient ,solubility coefficient and diffusion coefficient test
Chambers with water bath temperature control technology
Unit based on embedded system,24bit Δ-Σ AD
Multiple test modes optional
Data curves display
Traceable reference film calibration
Supports DSM system (DSM, lab data management system)
Gas Permeability Tester Transmission Testing Machine GTR/OTR
Technical Indexes
Test range: 0.05 - 160,000 cm3/m2·24h·0.1MPa (Standard)
Resolution: 0.001cm3/m2·24h·0.1MPa
Samples: one piece
Vacuum accuracy : 0.1 Pa
Temperature range: 5C - 95C
Temperature accuracy: ±0.1C
Sample thickness: less 5mm
Sample size: >=150mm * 94mm
Test area: 48cm2
Test gas: O2, N2, CO2, He, etc
Differential pressure: -0.1MPa - 0.1MPa
Gas interface: Ф8mm
Dimension: 330 mm * 600mm * 330 mm
Power supply: AC 220V 50Hz
Net wt. : 28kg
Standards
Gas Permeability Tester: ASTM D1434, ISO 15105-1,ISO 2556,GB/T 1038-2000,JIS 7126-1,YBB 00082003
