Home > Products > Gate Valve > China Supplier Brass 1/2 - 4 Inch female Thread Gate Valve

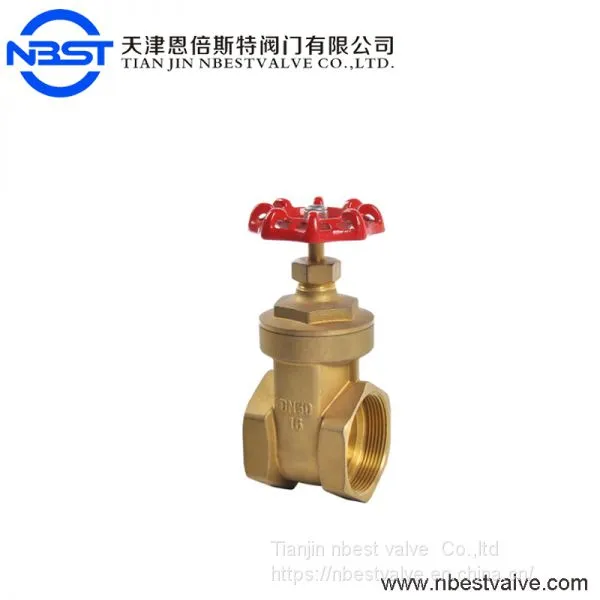

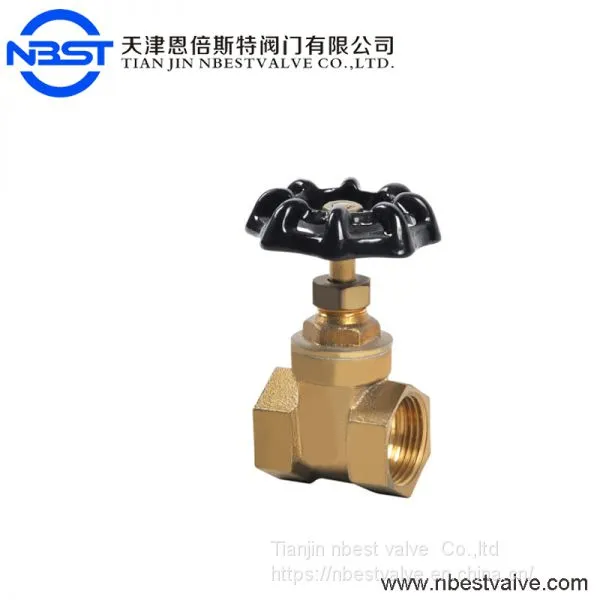

China Supplier Brass 1/2 - 4 Inch female Thread Gate Valve
- 10000 Piece / Pieces per Month
- Tianjin
- T/T L/C D/P D/A PayPal Other Cash
- 7 days
You May Like
-
Brass Stem Gate Valve 2 inch Prices
-
Water Y type filter female thread stainless steel strainer valve
-
One Piece Thread End Stainless Steel Ball Valve 1/2
-
Two piece Stainless Steel ( NPT Thread ) ball valve
-
1/2''Brass Gas Ball Valve With butterfly handle
-
1/2''Gas Flow Control Hand Operated Needle Valve
Product Details
Brand Name | NBEST | Place of Origin | China | |
Model Number | GV01 China Supplier Brass 1/2 - 4 Inch female Thread Gate Valve | Material | Casting | |
Application | General | Structure | Gate | |
Standard or Nonstandard | Standard | Pressure | Low Pressure | |
Power | Manual | Port Size | 1/2''-4'' | |
Media | Water | Temperature of Media | Low Temperature |
Product Description
One.Product data:
GV01 China Supplier Brass 1/2 - 4 Inch female Thread Gate Valve
Product name | Brass Stem Gate Valve 3 inch Prices |
Material | Brass |
Brand | Bestway |
Item No. | G01 |
Thread | BSP or NPT |
Surface | Natural brass |
Size | 1/4" to 4" |
Testing pressure | 100% tested with 0.6MPa - 0.8MPa by air |
Connection | Female thread x Female thread |
Valve guarantee | 1 Years |
Samples time | 2 days - Current type 15 days - New mould |
OEM Acceptable | Yes |
Place of origin | Tianjin,China(Mainland) |
NO. | Part Name | Material |
1 | Body | Brass |
2 | Wedge disc | Brass |
3 | Screw | Brass |
4 | Bonnet | Brass |
5 | Lock cap | Brass |
6 | Packing | PTFE |
7 | Ring | Brass |
8 | Pressing cap | Brass |
9 | Handwheer | HT200 |
10 | Nameplate | AL |
11 | Nut | Brass |
Spec | D | A | H | L | F |
1/2" | 14.5 | 54 | 70.3 | 44 | 11.5 |
3/4" | 19 | 58 | 78.5 | 46 | 11 |
1" | 24 | 58 | 89 | 50 | 13 |
1-1/4" | 27 | 72 | 100.5 | 56 | 14 |
1-1/2" | 33 | 72 | 111.5 | 60 | 14.5 |
2" | 43 | 78 | 125.5 | 70 | 17 |
2-1/2" | 54 | 98 | 156 | 76.5 | 18 |
3" | 65 | 108 | 180 | 77.5 | 19 |
4" | 86.5 | 126 | 226.5 | 93.5 | 21.5 |
Two related product:
Three.Company information:
Three.Company profile
Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.
Four.Aplication Area
a. Domestic sewage treatment.
b. industrial wastewater treatment.
c. industrial irrigation treatment.
Five.Packing and Freight
Six.FAQ
Q: Are you trading company or manufacture?
A: We are factory located in Tianjin, China.
Q: What's your product range?
A: We specialize in product butterfly valves,solenoid valve, gate valves, check valves, Y type strainer, water controlling valves,motorized valves,pneumatic valves,hydraulic valves and other pipe accessories.
Q: What's execution standard?
A: ISO/ANSI/DIN/JIS/EN/GOST standard.
Q: What's your strong product?
A: Concentric butterfly valves, grooved butterfly valves, dual plate check valves.
Q: Do you provide sample? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q: How long is your delivery time?
A: Generally it is 7 days if the good are in stock, or it is 20 days if the goods are not in stock, it is according to the quantity.
Q: What is your terms of payments?
A: Payment ≤10000 USD, 100% in advance. Payment ≥10000USD, 30% T/T or other ways in advance, balance before shipment.
Seven.Contact us
