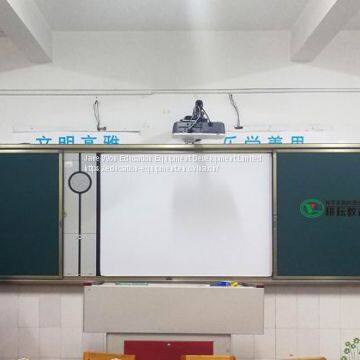

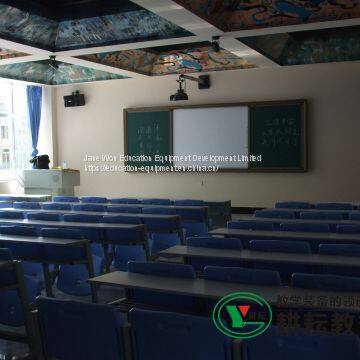

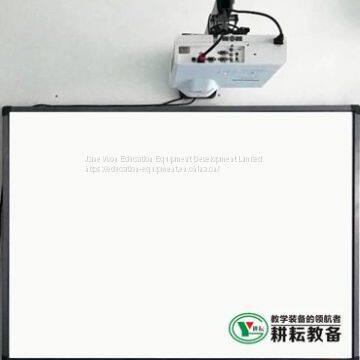

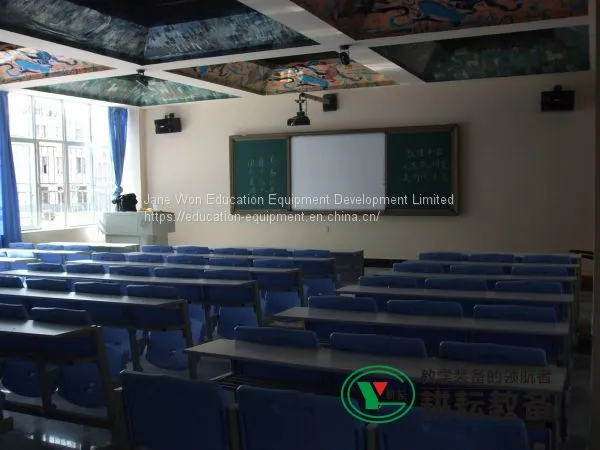

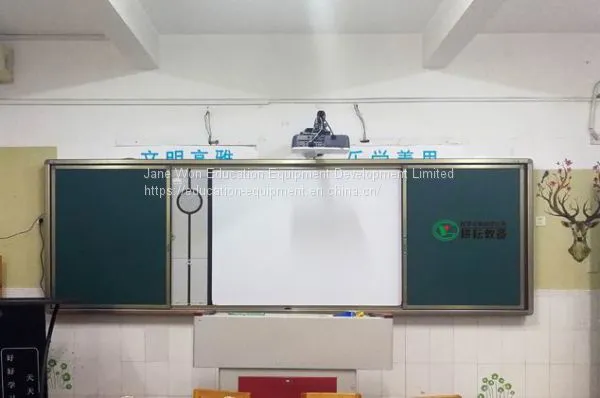

Integrated Interactive Electronic Whiteboard

Jane Won Education Equipment Development Limited produces advanced and modern multimedia digital education equipments.

We build complete projects of intelligent digital multimedia classrooms and provides solutions of intellectual campus, multimedia education, conference system.

Products include: LCD touch display screen, interactive electronic whiteboard, all in one machine, lecturing system, laser projector, multimedia lectern and other traditional education equipment like black board, desk and chair for clasroom, table and stool for canteen, dormitory facility,  etc.

Dimensions: usable operating area and writing area not less than 84 inches, aspect ratio: 16:10

Touch sensing technology: optical image sensing technology

USB report resolution: 32767 * 32767

Touch accuracy is less than 2.5mm

Cursor speed (sampling rate) is greater than 180 frames/SEC

Response time (scanning speed) : 6 ms or less, there is no delay

Size of induction objectФ 5.0 mm or less, no writing blind area supports multi-touch

Have the product quality inspection report of provincial and ministerial authority

Interface: USB2.0, communication distance is not less than 10m

Calibration: one calibration is enough, without drift

Other features: can prevent glare and reflection, dust, dirt, water, riot, anti-light;

★Edge design: micro-arc design

★Border design: extruded aluminum alloy (solid)

★Panel material: aviation aluminum honeycomb board

Functional features

1. The audio system can be used alone when it is powered up, effectively extending the service life of projectors or LCD TVS and internal computers;

2. Metal case, strong and durable, beautiful and high-grade, the size is not greater than 1230mm*300mm*60mm, easy to be embedded in the blackboard, integral installation with LCD TV or electronic whiteboard for use;

3. There are no screws or rivets on the outside of the case. The whole case is smooth, beautiful and elegant. Adopt the structure of the front dismounting, which is beneficial to the daily quick repair and maintenance of the equipment;

4. Except for the mechanical lock and handle of the warehouse door of the display platform, there is no protruding device on the front of the case for the easy opening and closing of the blackboard;

5. Two-digit digital tube is used to display various working conditions and parameters to facilitate users to monitor the use status of equipment;

6. Two kinds of projector control code input methods: pre-save 99 sets of projector 232 control

Code for the user to call directly, reduce the trouble of the user to write code, at the same time, the model not included can be written freely by the user;

7. The initial volume is automatically adjusted, and the system automatically adjusts the volume from small to large to the set value when starting up after setting;

8. When power off, the projector's cooling period countdown function can effectively protect the projector.

9. Control the system intelligently by a key, when switch "system switch" of the integrated machine, automatically step with switch of all devices i.e. projector, computer and central control, etc., the operation is more simple and convenient

10. The two boot modes of card swiping and key pressing coexist to effectively prevent the equipment from not able to turn on due to lost or damaged card keys.
