Help CenterAngle SOLENOID VALVE
Related Products

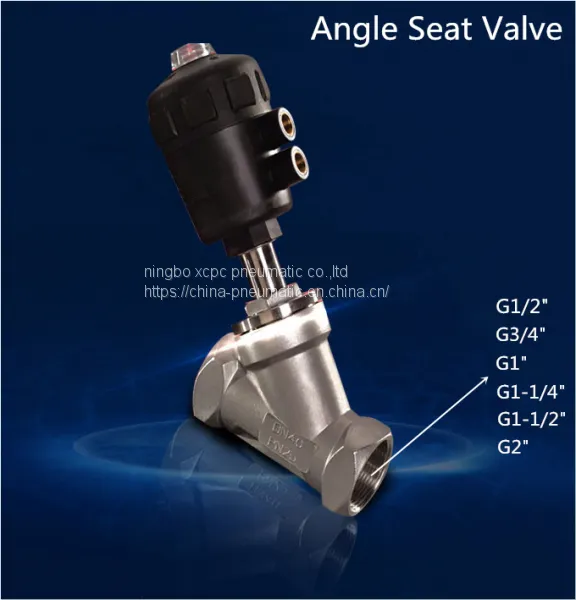

JZF series angle seat valve, it is 2/2way, piston-operated angle seat valves for neutral & aggressive liquids & gases. With stainless steel valve body, plastic actuator, stainless steel actuator are optional.
Specification:

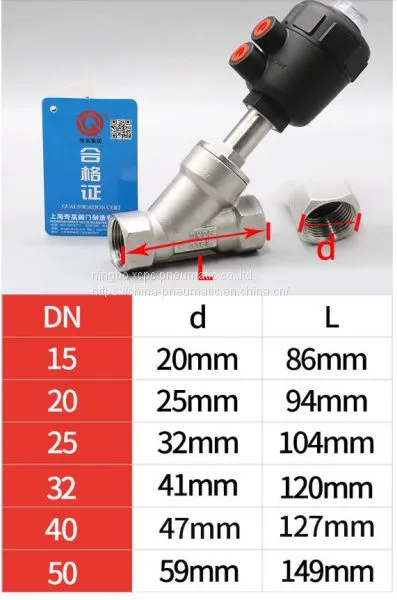

| Model | JZF-15 | JZF-20 | JZF-25 | JZF-32 | JZF-40 | JZF-50 | JZF-65 |
| Port Size | G1/2 | G3/4 | G1 | G1 1/4 | G1 1/2 | G2 | G2 1/2 |
| Aperture Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 |
| Actuator Size(mm) | 50 | 50 | 63 | 63 | 63 | 80 | 100 |
| Working Pressure | 0~16Bar | ||||||
| Control Pressure | 0.3~0.8MPa | ||||||
| Material Of Body | Stainless Steel (SS304 or SS316) | ||||||
| Material Of Actuator | Polyamide or Stainless Steel SS304 | ||||||
| Medium Temperature | -10~180 °C | ||||||
| Ambient Temperature | -10~60 °C | ||||||
| Medium | Air ,Gas ,Water | ||||||
| Action type | Single Action or Double Action |
||||||
Features:
1. Indication of valve open or close position.
2. External pneumatic guide provides prolonged service life and maintenance free.
3. Self-adjusted gland between the over flow port and slide block can improve the sealing performance.
4. Angle structure of valve body can realize mass flow capacity compared with general stop valve Compact Structure make quick response available.
5. Sealing material:lmported sealing ring and PTFE ring.
6. Material of valve body:Stainless Steel.
7. Air Source control:neutral gas and air.
