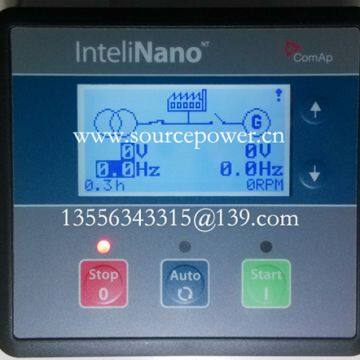

ComAp InteliNano NT AMF(IN-NT AMF) Control module
Controller for single gen-set operating in standby applications
Gen-set monitoring and protection
Weak battery gen-set starting
True voltage RMS measurement 3 phase
EFI engine support with diagnostic message
Up to 3 configurable analog inputs
Up to 6 binary inputs
Up to 6 binary outputs
2 high current outputs
D+ pre-excitation terminal
CAN with J1939 support
USB communication interface
USB one cord programming
User-friendly installation / operation
The biggest graphical display in its class
Language free - only symbols and numbers
Controller for single gen-set operating in prime power applications
3 Phase generator voltage measurement
Connection type and voltage auto detect
Various generator and engine protections
Icon menu, no text
Automatic or manual GCB control
"Zero" power consumption mode
Battery voltage, Service time and Running hours indication
All setpoints and I/O's configurable via front panel
Light Tower mode supported
Event log (10 events)
Up to 3 analog inputs (shared with binary inputs)
COM terminal for analog measurement
Up to 6 binary inputs (1 binary input is shared with binary output)
2 high side - high current outputs
2 high side binary outputs
D+ pre-excitation terminal
ECU support (CAN J1939)
USB one-cord power supply and programing
License free PC configuration software (NanoEdit)
Standard cut-out dimension 96x96
Outside dimension 110x100
IP 65 (if optional gasket is used)
UL recognized
