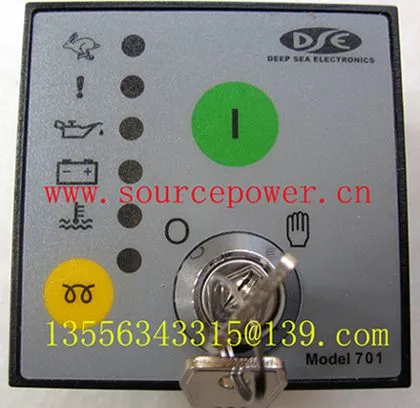

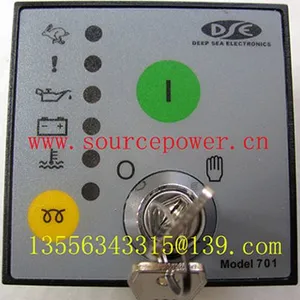

DSE701MKII DSE402MKII DSE550 DSE555 DSE560 DSE557 Manual & Auto Start Control Module

Deep Sea Electronics PLC Basic module provides a number of control and monitoring features with expansion capability to meet demanding specifications. The ideal choice where a remote communications control system is specified (when used with one of the comms output options below).‘Enhanced power measurement’ module provides all the functions of the ‘Basic’ unit but also includes full power monitoring instrumentation (detailed right) and powerful auto-sync functions as standard.The inclusion of auto-sync now allows the OEM to offer the choice of clean break or ‘Bumpless’ no break transfers to and from the gen-set. No need for complex sync panels etc.Simply use the 555 Power measurement module and interface to the engine governor and AVR.(No break transfer using the 555 module requires connecting to a suitable electronic governor and AVR.) Load control versions can be used to export a fixed amount of power to the load while in parallel with the mains, with soft transfer to and from the gen-set. Optional RS232 port allows comprehensive remote control and monitoring. RS232 provides modem link to PC via PSTN line or GSM network (with suitable modem). Uniquely, the module supplies DC power to the modem ensuring integrity of link during loss of mains and engine starting. The module can also signal Engineers via the cell phone network using the GSM SMS messaging system to advise of system alarms. Optional RS485 ‘Modbus’ output. Using industry standard communication protocol allows full system integration into new and existing building management and control schemes. The 500 series modules have been designed for front panel mounting. The module is fitted into the cut-out with the fixing clips removed. These are then fitted from the rear. Connection is via locking plug and socket. Dimensions: 192mm x 144mm x 138mm 7.6’’x 5.7’ x 5.5’’

Deep Sea Electronics PLC The Model 702 is a Manual Engine Control Module

designed to control the engine via a key switch and pushbuttons on the front panel. The module is used to start and stop the engine and indicate fault conditions, automatically shutting down the engine and indicating the engine failure by LED, giving true, first-up fault annunciation.
