Help CenterCentrifugal Blower
US$ 1000 - 20000
MOQ: 1 Set
Key Specifications
Get Latest Price
After-sales Service Provided:
No overseas service provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
After-sales Service Provided
No overseas service provided

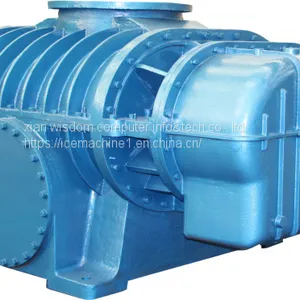

| Product name:Roots Blower | |||||||||
| Model/Size: Model: L94WD; Pressure: 19.6kpa; Capacity: 369m3/min; Rated speed: 750rpm; Motor: YB3-355L1-8p-185kw, 380V, 50Hz | |||||||||
| Cooling type:The main fuel tank of the fan is water cooling tank | |||||||||
| Sealing type:Adopting the ring and skeleton oil seal group; | |||||||||
| Motor:ATEX Certificate Explosion-proof type (YB3-355L1-8p-185kw, 380V, 50Hz;) | |||||||||
| Roots BlowerAccessory(Each Set) | |||||||||
| NO. | accessory name | material | No. | accessory name | material | ||||
| 1 | The machine shell | HT250 | 7 | Driving bearing cap | HT250 | ||||
| 2 | impeller | HT250/QT450 | 8 | Driven bearing cap | HT250 | ||||
| 3 | Drive side wall | HT250 | 9 | Tuyere connection | HT250 | ||||
| 4 | Gear tooth wallboard | HT250 | 10 | Oil tank | HT250/QT450 | ||||
| 5 | driving shaft,Driven shaft | 40cr | 11 | bearings | Gcr15 | ||||
| 6 | seal cartridge | 40cr | 12 | gear | 20crMNTi | ||||
| 13 | Oil seal | TAIWAN TTO | 14 | flexible connector | Rubber and flange | ||||
| 15 | Gear oil | 220#/150# | |||||||
| Package | |||||||||
| weight | 10.5tons/set | ||||||||
| main machine Package size: | 2.8*1.9*1.85M,7.5Tons/set | ||||||||
| motor package size: | 1.88*0.96*1.28M,2.2ton/set | ||||||||
| Export silencer package size: | 3*2.1*2.2M, 1.5ton/set | ||||||||
| 1# 40'Gp container | main machine package*2+ motor package *3 | ||||||||
| 2# 40'Gp container | main machine package*2+ motor package*1+export silencer *1 | ||||||||
| Guarantee Period: 18 months from B/L date, and will be warranted on condition of normal operation only. | |||||||||
| production time:60 working days | |||||||||
| engine in explosion engine( EXdIIBT4 grade), 8p 185kw, (please choose one) | |||||||||
| engine in explosion engine( EXdIICT4 grade ), 8p 185kw, (please choose one) | |||||||||
