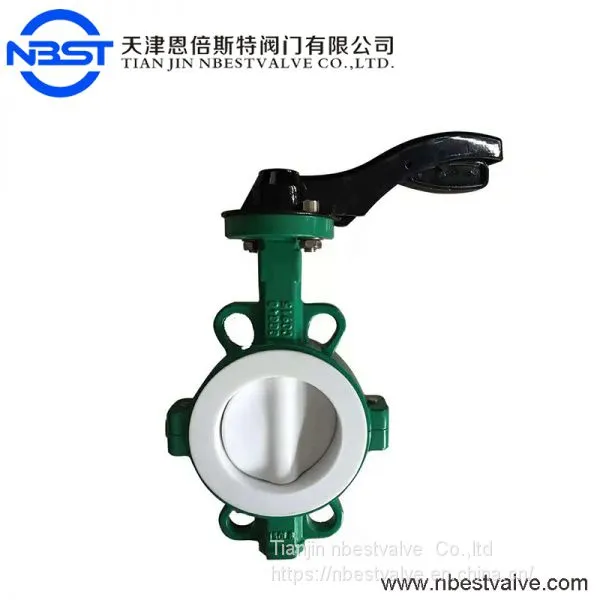

Help CenterDN100 Full Lining Tetrafluorinated Butterfly Valve With PTFE Disc
Related Products
-
D71X-10Q Dn50/dn100/dn150 Food Grade Wafer Type Aluminium Handles Lever Butterfly ValveUS$ 10 - 1000MOQ: 1 Piece -
DN150 Aluminium Alloy Handles Lever Wafer Butterfly ValveUS$ 10 - 1000MOQ: 1 Piece
-
D71XP-10Q DN150 Steel Lever Ductile Iron Wafer Butterfly ValveUS$ 10 - 1000MOQ: 1 Piece
-
D71XP-10C Aluminum Alloy Lever Cast Iron Wafer Butterfly ValveUS$ 10 - 1000MOQ: 1 Piece
-
D71XP-10Z DN50 Wafer Butterfly Valve With Aluminum Alloy Lever Cast Iron BodyUS$ 10 - 1000MOQ: 1 Piece
One.Product data:
1.5'' small size stainless steel butterfly valve for water with lever
a.Features:
(1) 90° movement for full open/close position.
(2) Excellent control characteristics.Tight shut-off even after innumerable operations.
(3) Installation cost considerably reduced because of very low weight and compact design.
(4) Longer life and reliable service with minimum component wear.
(5) Renewable seats. No supplementary gasket required with the adjacent pipework.
(6) Body & Stem totally protected from service fluid.
b.Design consideration :
NO. Name Standard
Size |
DN50-DN1200 |
Working pressure |
10Bar |
Shell |
15Bar |
Seal(Air) |
11Bar |
Operating Temperature |
-20℃~+180℃ |
Operating Environment |
Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water |
Driving method |
Hand Lever Worm Gear Electric Pneumatic |
Design Standard |
EN 593 , MSS SP67 API 609 BS5155 |
Inspection & Test |
API 598 ISO 5208 EN 12266 |
End Standard |
ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & EBS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3 |
Face to Face |
ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
Top Flange |
ISO 5211 |

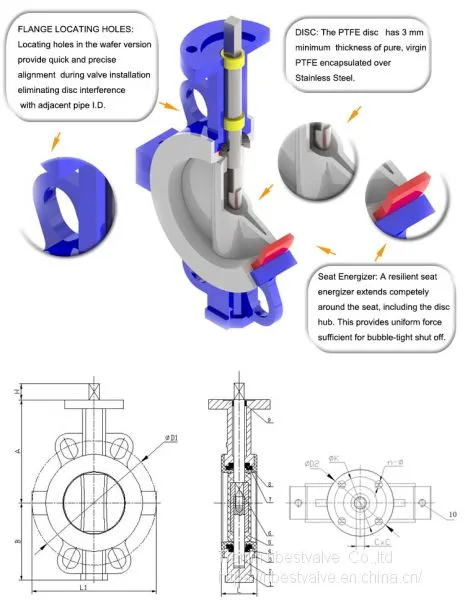

c.Material could be:
Item Part Name Materials
1 Body Cast Iron/Ductile Iron
2 Stem :2Cr13
3 Taper Pin :no pin
4 Seat :PTFE
5 Disc :Ductile Cast Iron (Nickel plated)/Carbon Steel/Stainless steel
6 O-Ring :PTFE
Two.Related products
Patent products are the core competitiveness of enterprises. Products including butterfly valves, gate valves, ball valves, check valves, globe valves, Y type strainer, water power controlling valves and pressure regulating valves. With pressure rating ranging from 0.6Mpa to 10Mpa and port size from DN40 to DN3000. These valves can be operated manually, electrically, pneumatically, hydraulically, and elector-hydraulically, with reference to ANSI, API, DIN, BS, JPI, and JIS standards and China's GB standards.
Three.Company profile
Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.
Four.Aplication Area
a. Domestic sewage treatment.
b. industrial wastewater treatment.
c. industrial irrigation treatment.
Five.Packing and Freight
Six.FAQ
Q: Are you trading company or manufacture?
A: We are factory located in Tianjin, China.
Q: What's your product range?
A: We specialize in product butterfly valves, gate valves, check valves, Y type strainer, water controlling valves,motorized valves,pneumatic valves,hydraulic valves and other pipe accessories.
Q: What's execution standard?
A: ISO/ANSI/DIN/JIS/EN/GOST standard.
Q: What's your strong product?
A: Concentric butterfly valves, grooved butterfly valves, dual plate check valves.
Q: Do you provide sample? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q: How long is your delivery time?
A: Generally it is 7 days if the good are in stock, or it is 20 days if the goods are not in stock, it is according to the quantity.
Q: What is your terms of payments?
A: Payment ≤10000 USD, 100% in advance. Payment ≥10000USD, 30% T/T or other ways in advance, balance before shipment.
