online electrical conductivity meters Industrial conductivity meter
Description Industrial electrical conductivity meter
online electrical conductivity meters Industrial conductivity meter is online water quality monitoring controller with a microprocessor. The instrument configuration different constant conductivity electrode is widely used in power plants, petrochemical, metallurgy electronics, mining, paper, semiconductor, pharmaceutical, food and beverage, water treatment, new farming and other sectors; applicable softened water, raw water, steam condensate, water and deionized distilled water; the conductivity and temperature of the aqueous solution was continuously monitored and controlled.

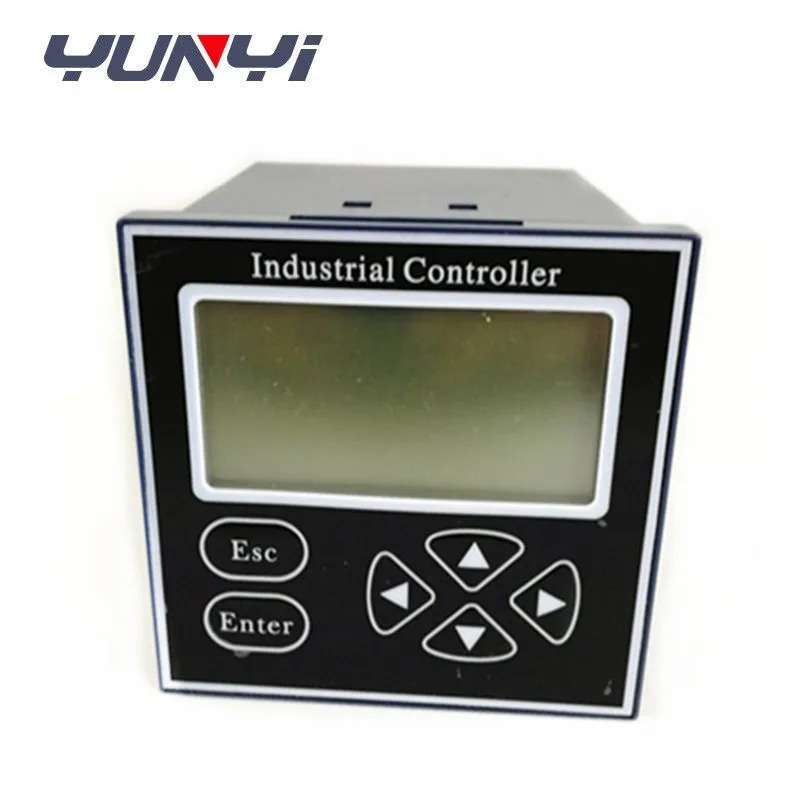

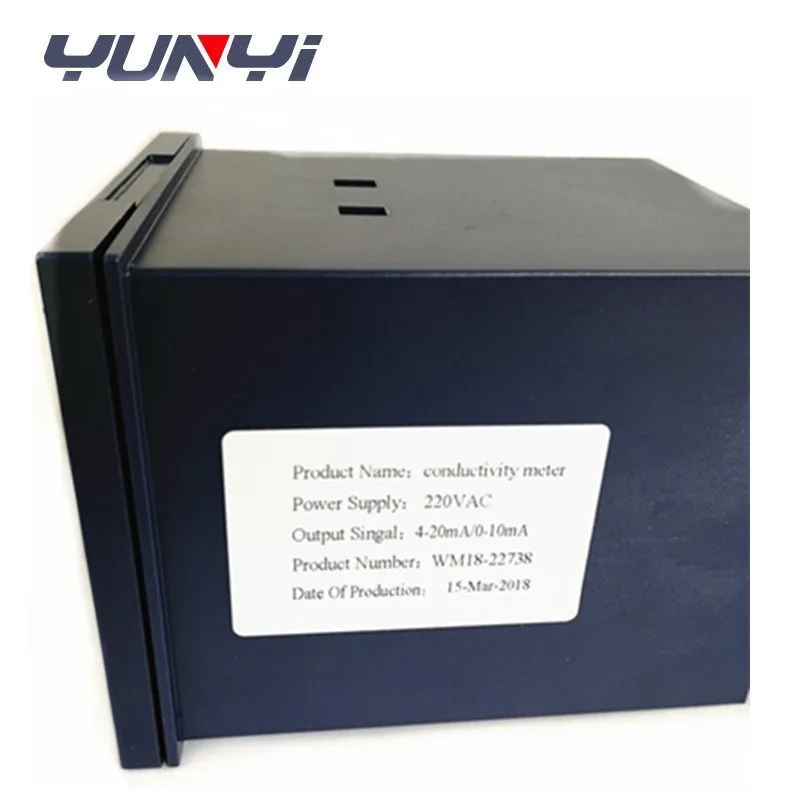

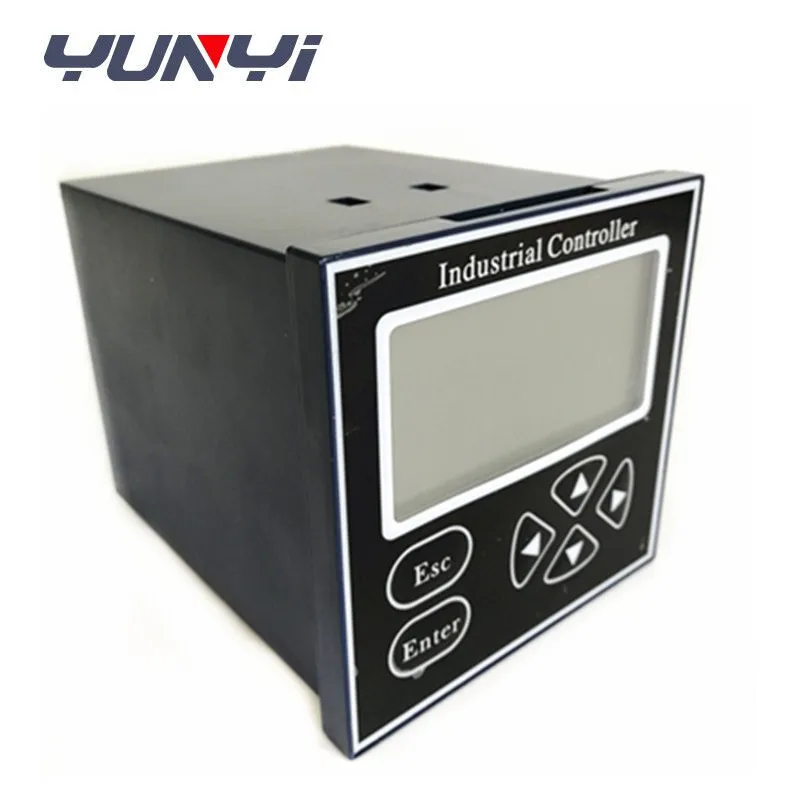

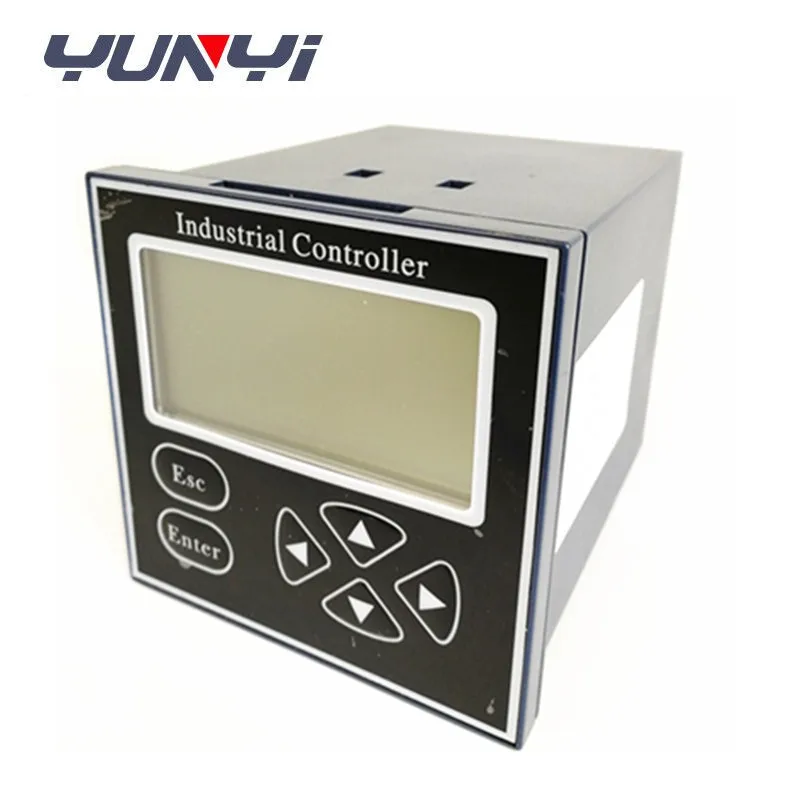

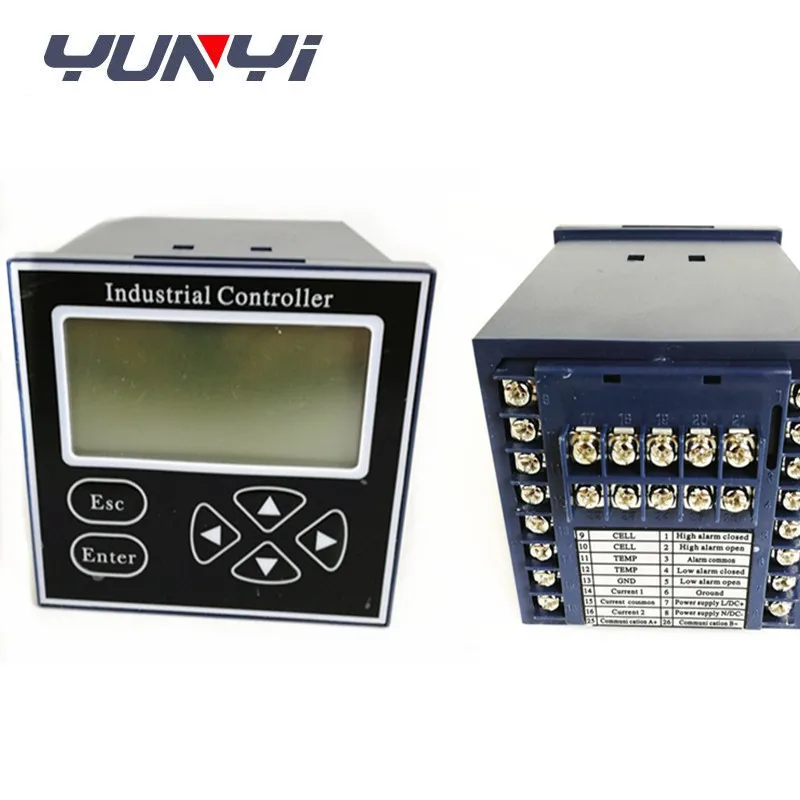

Detailed Images Industrial conductivity meter electrical conductivity meter
Specification Industrial electrical conductivity meter
online electrical conductivity meters Industrial conductivity meter
(1) Measurement range (can be set):
Conductivity: 0 ~ 20 μS / cm K = 0.01
Conductivity: 20 ~ 200 μS / cm K = 0.1
Conductivity: 200μS/cm ~ 4mS/cm K = 1.0
Conductivity: 4 ~ 20mS/cm K = 10.0
Conductivity: 20 ~ 100mS/cm K = 30.0
Temperature: -5 ~ 110.0 ℃;
(2) Resolution:
Conductivity: 0.01μS/cm; 0.01 mS / cm;
Temperature: 0.1 ℃;
(3) Basic error:
Conductivity: ± 1% F • S;
Temperature: ± 0.3 ℃;
(4) Automatic or manual temperature compensation range: 0 ~ 110 ℃;
(5) Stability: ± 0.2% F • S/24h;
(6) standard current output:
0 ~ 10mA (load resistance
4 ~ 20mA (load resistance
(7) two relay control contact:
3A 240VAC, 6A 28VDC or 120VAC;
(8) Instrument Power Supply:
220VAC ± 10%, 50 ± 1Hz, power ≤ 3W;
24VDC, Power: ≤ 1W (optional);
12VDC, Power: ≤ 1W (optional);
(9) Instrument Dimensions: 96 × 96 × 130mm;
(10) Meter Installation: panel mounting (embedded);
Installation hole size: 91 × 91mm;
Wall-mounted: 300 × 200 × 167mm;
(11) Instrument Weight: 0.6kg;
(12) Instrument working environment:
Ambient temperature: -10 ~ 60 ℃;
Relative humidity: less than 90%;
In addition to the Earth's magnetic field without strong magnetic field around it.
Features Industrial electrical conductivity meter
online electrical conductivity meters Industrial conductivity meter
1.LCD large-screen LCD
2.Chinese intelligent menu operation
3.Signal Output Optional
4. manual, automatic temperature compensation
5. Two relay control switch
6. high limit and low limit, hysteresis control
7. same interface displays conductivity and temperature values
8. offers password protection to prevent the misuse of non-staff
Applications Industrial electrical conductivity meter
online electrical conductivity meters Industrial conductivity meter can be widely used in thermal power, chemical fertilizers, metallurgy, environmental protection, pharmaceuticals, biochemicals, food and tap water, continuous monitoring of conductivity values.
