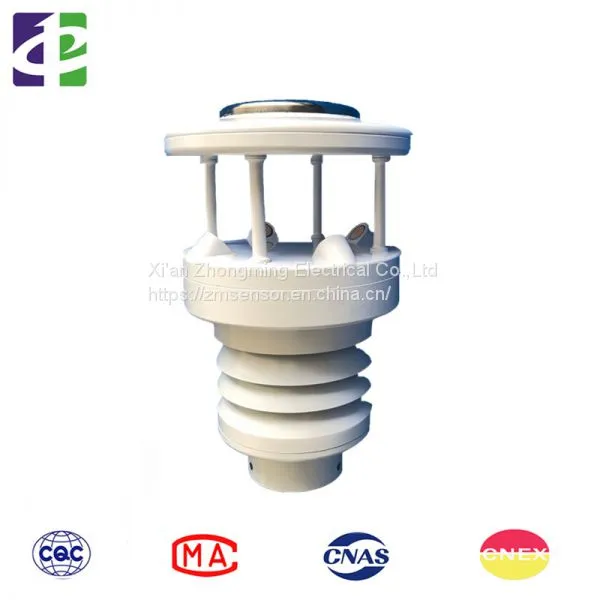

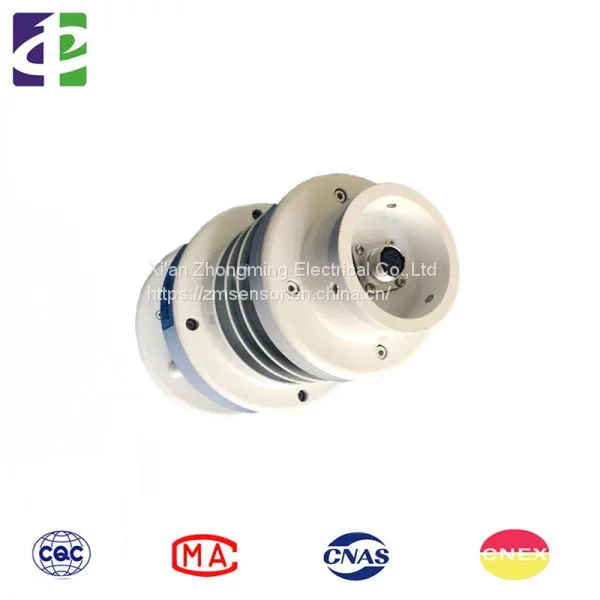

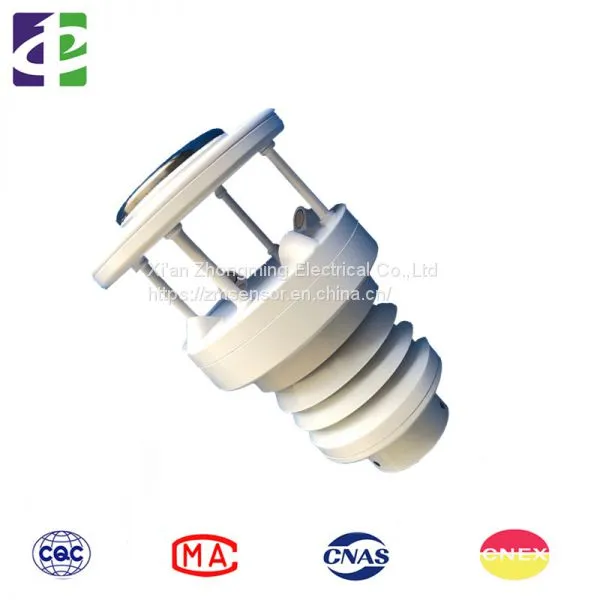

WXA100-06MH ultrasonic wind speed wind direction temperature humidity air pressure and rainfall sensor
WXA100-06MH six-element meteorological sensor is multi-functional meteorological sensor developed by our company based on years of experience in meteorological product development and the actual situation on site.
The sensor integrates six meteorological elements such as wind speed, wind direction, rainfall, temperature, humidity, and atmospheric pressure. It has the characteristics of compact structure, no moving parts, sturdiness and durability, easy installation, and maintenance-free features. It is aimed at a wide variety of meteorological products. An intelligent sensor specially designed for on-site installation and maintenance.
The sensor has low power consumption and can be equipped with a solar charging board for mobile weather monitoring.
FEATURE:
No moving parts
Compact and easy installation
Strong anti-interference
High accuracy
maintenance-free
APPLICATION:
Environmental monitoring
Airport
Bridge and Tunnel engineering
Emergency meteorological
Traffic
Urban environment
Automatic weather station
hydraulic engineering
Wind power station
Technical data:
Model |
ZM Sensor WXA100-06MH |
Measurement parameters |
Wind speed & direction, air pressure,temperature,RH,rainfall |
Type |
Conventional |
Power supply |
12...24VDC |
Operating temperature |
-40 … +85 °C (-40 … +185°F) |
Relative humidity |
0 … 100 %RH |
Pressure |
10 … 1100 hPa |
Power consumption |
8...15mA at 12VDC |
Digital outputs |
RS232/RS485 |
Communication protocols |
ASCII,Hexadecimal and Customized |
Dimension |
16cm*16cm*29cm |
Wind Measurement Performance | |
Wind speed | |
Observation range |
0 ... 60 m/s |
Accuracy |
±3 % at 10 m/s |
Output resolution |
0.1 m/s |
Wind direction | |
Azimuth |
0 ... 360° |
Available variables |
Average, Maximum, and Minimum |
Accuracy |
±3° |
Output resolution |
0. 1° |
Air Temperature Measurement Performance | |
Observation range |
-40 … +85 °C (-40 … +185°F) |
Accuracy |
±0.3 °C (±0.5 °F) |
Output resolution |
0.1 °C (0.1 °F) |
Relative Humidity Measurement Performance | |
Observation range |
0 ... 100 %RH |
Accuracy |
±3 %RH |
Output resolution |
0.1 %RH |
Barometric Pressure Measurement Performance | |
Observation range |
10~1100hPa |
Accuracy |
±0.5hPa |
Output resolution |
0.1hPa |
Rainfall Measurement Performance | |
Observation range: |
0...500mm |
Accuracy |
± 4 % |
Output resolution |
0.01mm |
Measurement method |
Piezoelectric |
Wind power station Testing system On-line monitoring
Qinghai pasture monitoring Urban environment monitoring Highway meteorological monitoring
The goods are sent by DHL/UPS/FEDEX or others.
Shipment can be made in 3-5 days after confirmed payment.
Standard strong carton box.
ZM SENSOR is dedicated to industrialization of newly developed ultrasonic weather sensors. The core technologies for all sensor products and equipments are of its independent Intellectual Property Right.
ZM SENSOR is certified under ISO9000 for quality Control System and Explosion-proof Certificate issued by CNEX.
ZM SENSOR is working to be a world professional ultrasonic weather sensor and automatic meteorological station provider.
Q:Can you accept ODM & OEM service ?
A:We are professional to provide ODM &OEM service for our customers.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How is the price?
A:As believe quality is the most important,we always provide the best quality weather sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you need urgently,just tell us and we will try our best to assist you.
Q:Could I visit your factory?
A:Of course and we will warmly welcome to our factory.
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba, you will get the reply within 12 hours, and the quotation will be sent to you depends on your requirements.
Q. How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator.
