Factory Direct Sell LX10M Surface Mount Bridge Rectifiers Diodes SOF2-4J Case
US$ 0.10 - 0.3
MOQ: 4000 Pieces
Key Specifications
Get Latest Price
Brand Name:
JUXING
Place of Origin:
China
Model Number:
LX10M
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
3 days
Related Products
-
Factory Direct Sell UG3KB100 Plug in Bridge Rectifiers Diodes D3K CaseUS$ 0.50 - 1.00MOQ: 500 Pieces -
Factory Direct Sell UG4KB100 Plug in Bridge Rectifiers Diodes D3K CaseUS$ 0.50 - 1.00MOQ: 500 Pieces
-
Factory Direct Sell DBL307S Surface Mount Bridge Rectifiers Diodes DBS CaseUS$ 0.10 - 0.3MOQ: 5000 Pieces
-
Factory Direct Sell KMB110F Surface Mount Bridge Rectifiers Diodes MBF CaseUS$ 0.10 - 0.3MOQ: 5000 Pieces
-
Factory Direct Sell KMB12J Surface Mount Bridge Rectifiers Diodes SOF2-4J CaseUS$ 0.10 - 0.3MOQ: 5000 Pieces
Brand Name
JUXING
Place of Origin
China
Model Number
LX10M
Type
Rectifier Diode
Max. Reverse Current
0.8A
Max. Forward Current
25A
Max. Reverse Voltage
1000V
Max. Forward Voltage
1.1V
Package Type
Surface Mount

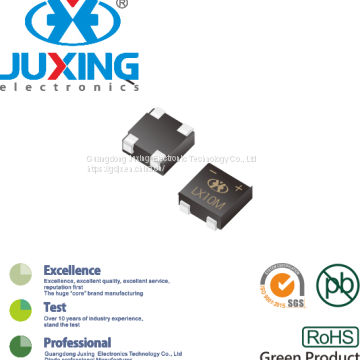

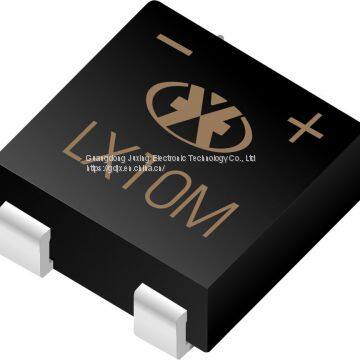

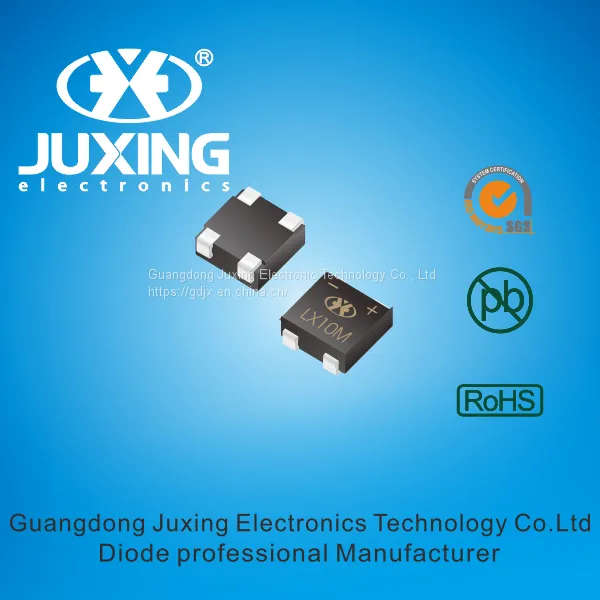

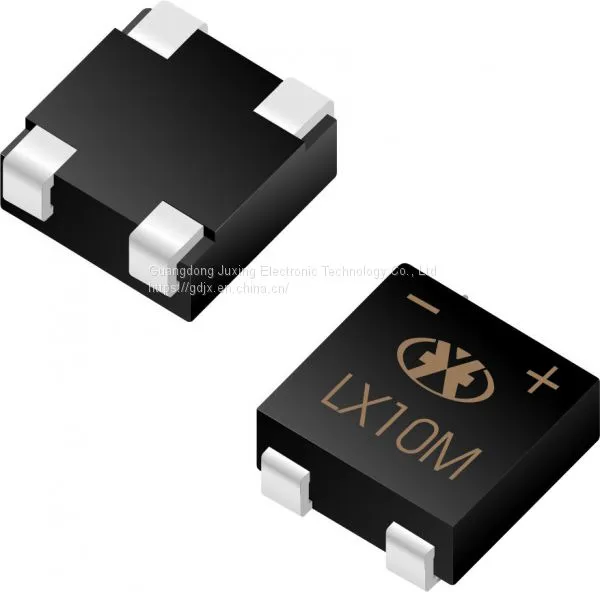

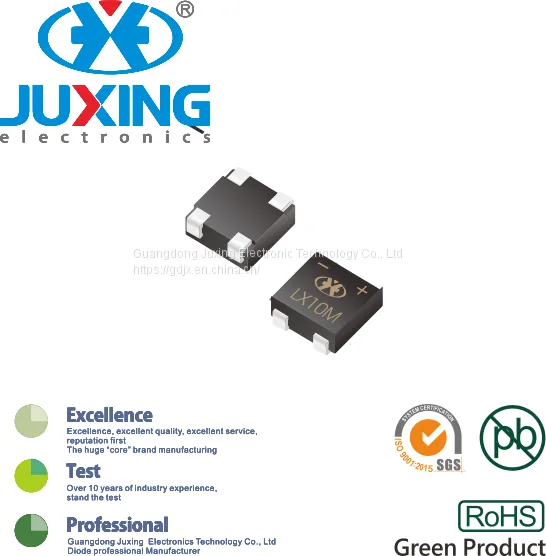

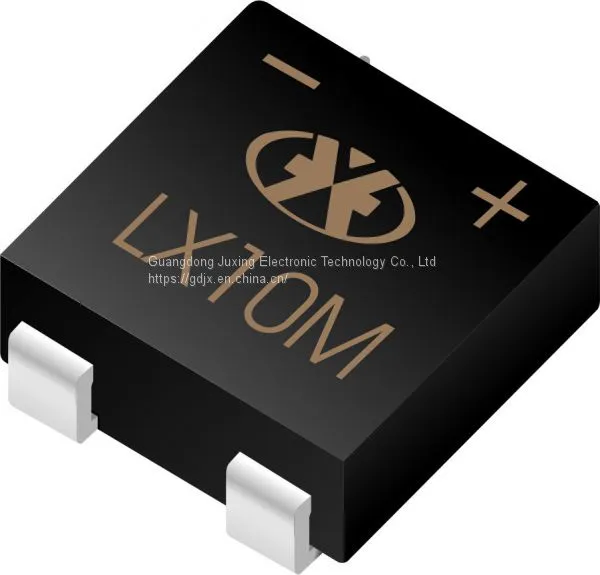

LX10M is the surface mount Bridge Rectifiers diodes make by Juxing
46mil chips SOF2-4J case mini Bridge rectifiers diodes
Glass passivated Chip Junction
low leakage Current
Low forward voltage drop
High forward surge capability
Designed for surface mount application
Plastic material-UL Flammability 94V-O
LX10M adopt international standard chip manufacturing, with stable and reliable performance.
Our company has passed the ISO9001 international quality standard system and ISO9001:2008 quality.
Management system, ISO14001 environmental management system certification. At the same time, products passed SGS and UL testing is in line with international environmental protection RoHS directive.
