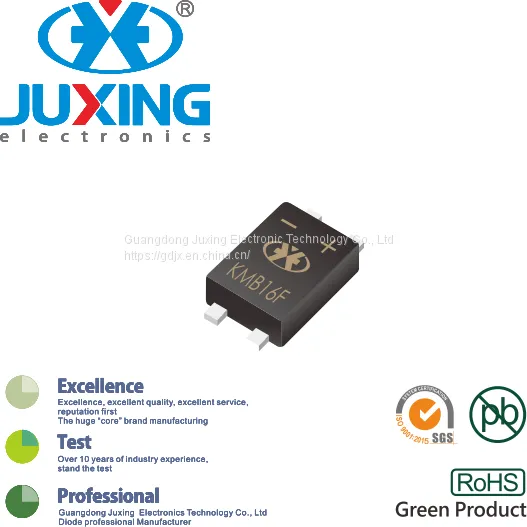

Factory Direct Sell KMB110F Surface Mount Bridge Rectifiers Diodes MBF Case
US$ 0.10 - 0.3
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Brand Name:
JUXING
Place of Origin:
China
Model Number:
KMB110F
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
3 days
Related Products
-
Factory Direct Sell KMB12J Surface Mount Bridge Rectifiers Diodes SOF2-4J CaseUS$ 0.10 - 0.3MOQ: 5000 Pieces -
Factory Direct Sell DB207 Surface Mount Bridge Rectifiers Diodes DB-1 CaseUS$ 0.10 - 0.3MOQ: 5000 Pieces
-
Factory Direct Sell DB307S Surface Mount Bridge Rectifiers Diodes DBS CaseUS$ 0.10 - 0.3MOQ: 5000 Pieces
-
Factory Direct Sell DB107S Plug in Bridge Rectifiers Diodes DB-1 CaseUS$ 0.10 - 0.3MOQ: 2500 Pieces
-
Factory Direct Sell GBU1510 Plug in Bridge Rectifiers Diodes GBU CaseUS$ 0.50 - 1.00MOQ: 500 Pieces
Brand Name
JUXING
Place of Origin
China
Model Number
KMB110F
Type
Rectifier Diode
Max. Reverse Current
1.0A
Max. Forward Current
30A
Max. Reverse Voltage
1000V
Max. Forward Voltage
1.0V
Package Type
Surface Mount

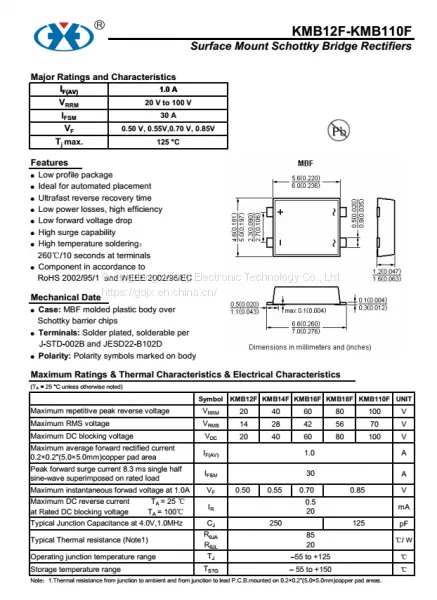

KMB110F is the surface mount Bridge Rectifiers diodes make by Juxing
46mil chips MBS case mini Bridge rectifiers diodes
Glass passivated Die Construction
Ideal for PCB
low forward voltage drop
High Current Capability
High surge Current Capability
Designed for surface mount application
Plastic material-UL Flammability 94V-O
KMB110F adopt international standard chip manufacturing, with stable and reliable performance.
Our company has passed the ISO9001 international quality standard system and ISO9001:2008 quality.
Management system, ISO14001 environmental management system certification. At the same time, products passed SGS and UL testing is in line with international environmental protection RoHS directive.
