Chinese Manufacturer Wholesale Small Engine 220v Small Alternator 3Kva YKS-3500E Small Generator

Chinese Manufacturer Wholesale Small Engine 220v Small Alternator 3Kva YKS-3500E Small Generator photo-1

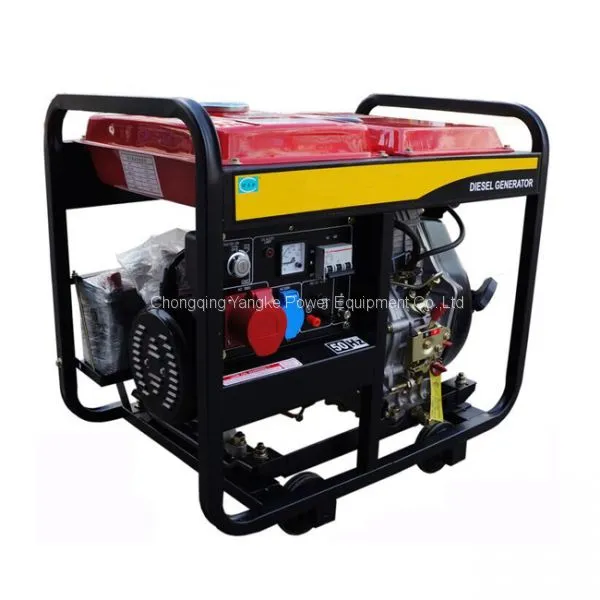

Chinese Manufacturer Wholesale Small Engine 220v Small Alternator 3Kva YKS-3500E Small Generator photo-2

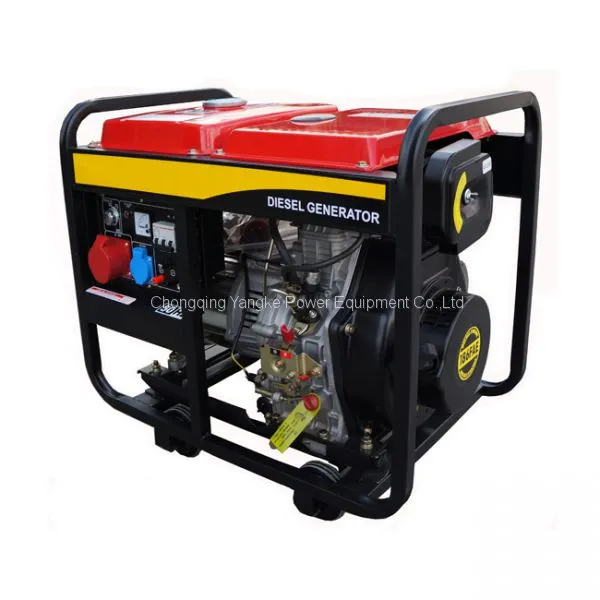

Chinese Manufacturer Wholesale Small Engine 220v Small Alternator 3Kva YKS-3500E Small Generator photo-3

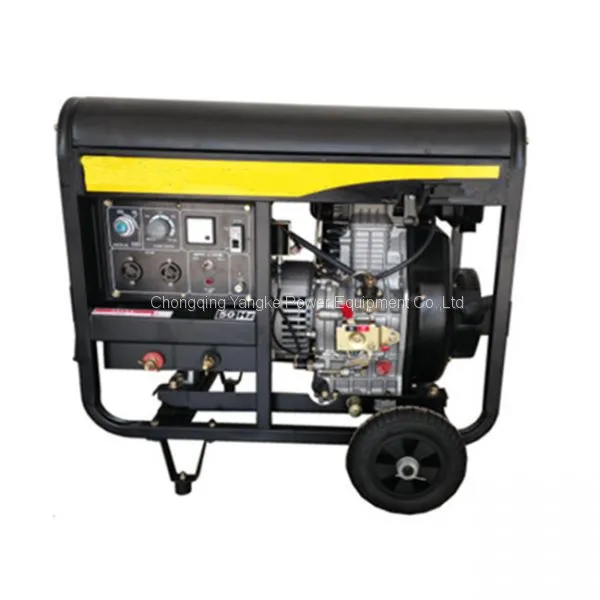

Chinese Manufacturer Wholesale Small Engine 220v Small Alternator 3Kva YKS-3500E Small Generator photo-4

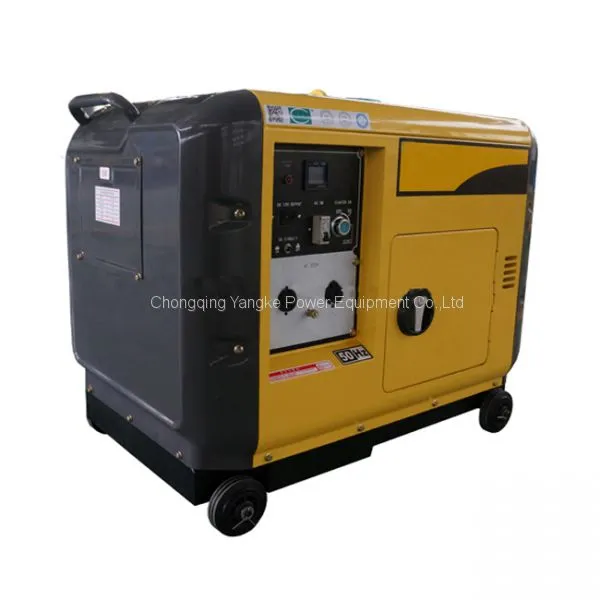

Chinese Manufacturer Wholesale Small Engine 220v Small Alternator 3Kva YKS-3500E Small Generator photo-5
US$ 378 - 475 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YANGKE
Place of Origin:
China
Model Number:
YKS-3500E
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing/Shanghai
Delivery Detail:
15 days
Brand Name YANGKE
Place of Origin China
Model Number YKS-3500E
Rated Current 5.5A
Output Type AC Single Phase
Speed 1500Rpm
Frequency 50Hz
Rated Voltage 40V
Rated Power 3Kw



t Model YKS-3500ES    YKS-3500ES3
Frequency 50Hz 60Hz 50Hz 60Hz
Max Output 3Kva/3Kw 3.3Kva/3.3Kw 3.8Kva/3Kw 4.2Kva/3.3Kw
Rated Output 2.8Kva2.8Kw 3.3Kva/3Kw 3.5Kva/2.8Kw 3.8Kva/3Kw
Rated Voltage 230V 240V 230/400V 240/420V
Rated Current 12A 12.5A 4A 4.5A
Phase  Single Phase Three Phase
Power Factor 1.0 0.8
DC Output 12V/8.3A
Alternator Type Sele-excited,2-pole,100% copper wire alternator
Start Mode Electric Start
Noise Level ≤72db
Fuel Tank Capacity 12.5L
Continuous Running Time 7Hr
Engine Engine Model 178FE
Engine Type Single-cylinder,vertical,4-stroke,air-cooled diesel engine
Bore*Stroke 78*62mm
Fuel Consumption Rate ≤295g/kw.h
Lubrication Oil Capacity 1.1L
Combustion System Direct Injection
Oil Type CF Grade SAE:  Winter:10W-30,15W-40:  Summer:20W-50

Advantage

1) Excellent Performance

We choose the world's leading engines and high efficiency alternators.

Our diesel generators operate powerfully and stably.



2) Strong Environmental Adaptability

The diesel generator can reliable running at low temperature environment.

Low temperature start ability can normally running in cold,sand and humid condition.



3) Intelligent Control System

Smartgen generator set contrller.jpg

Micro-processor cored digital system with multiple languages and automatic control.
Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.



Chongqing Yangke Power Equipment specializes in producing and selling multi-functional diesel generator set, diesel engine, generators and generator spare parts. We have specialized in domestic production and OEM for ten years, our factory is located in Tongliang industrial park of Chongqing city,covering an area of 20,000 square meters.And our sales office is in Qianye building, Jiulongpo Commercial Centre.

      We have franchise of CUMMINS, YUCHAI, SHANGHAI DIESEL ENGINE and NENJO, STAMFORD generator, which make our gensets are characterized bu small volume. light weight, low noise, low oil consumption, large power reserve, stable operation,and high reliability. We annual export 3,000 units genset for trading company in the past, and mainly to Southeast Asia, Middle East area, Africa and South America.We will always offer you the best price with higher quality machines.


 Warranty Policy:
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration, our company provides cost parts maintenance for genset.
