Help Center6242Y Cable
Related Products
This product is used for high wiring load, such as household appliances wiring.
Standard: BS 6242
Rated voltage: 300/500V

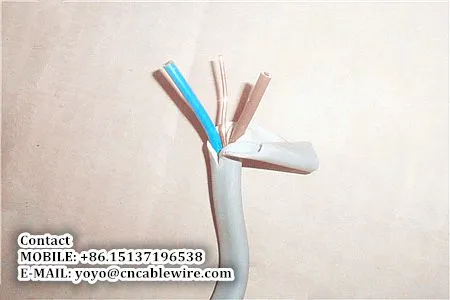

Cable structure
Conductor: Two-core bare copper grounding wire
Insulation: PVC insulation at 70°C
Sheath: PVC at 70°C
Technical specification of Low voltage house wiring cable
|
Type |
6242Y | 6242Y | |
| Nominal cross-sectional area | No. x mm2 | 2x1.5+1x1 | 2x2.5+1x1.5 |
| Insulated cores | No. of cores | 2 | 2 |
| No. of wires | 1 | 1 | |
| Wires Dia. (mm) | 1.38 | 1.78 | |
| Dia. of conductor (mm) | 1.38 | 1.78 | |
| Thickness of insulation (mm) | 0.7 | 0.7 | |
| Dia. Of cores | 2.78 | 3.18 | |
| Grounding core | No. of cores | 1 | 1 |
| No. of wires | 1 | 1 | |
| Wires Dia. (mm) | 1.13 | 1.38 | |
| Dia. of conductor (mm) | 1.13 | 1.38 | |
| Thickness of insulation (mm) | 0 | 0 | |
| Dia. of cores | 1.13 | 1.38 | |
| Sheath | Thickness (mm) | 1.0 | 1.0 |
| Dimension | Width (mm) | 8.69 | 9.74 |
| Height (mm) | 4.78 | 5.18 | |
| Weight of cable (kg/km) | 86.6 | 116.3 | |
| Weight of material of cable | Copper (kg/km) | 35.9 | 58.2 |
| Insulation PVC (kg/km) | 13.5 | 16.1 | |
| Sheath PVC (kg/km) | 37.1 | 41.9 | |
| Coefficient | 0.85 | 0.85 | |
Features
1.Good flexibility, wear resistance, oil resistance
2.High temperature, easy to peel, easy to cut
3.Working temperature: -5℃ to +70℃
Gongyi Shengzhou Metal Products Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply YC Rubber Sheathed Cable,YH Rubber Cable,RVV Cable,YJV Cable,Aluminium Conductor Steel Reinforced(ACSR),Aerial Insulated Cable,ABC Cable,House Electric Wire, etc. series of wire and cable products, sincerely welcome everyone to visit.
