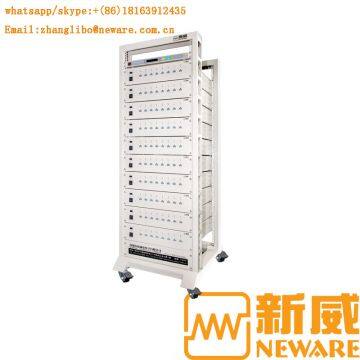

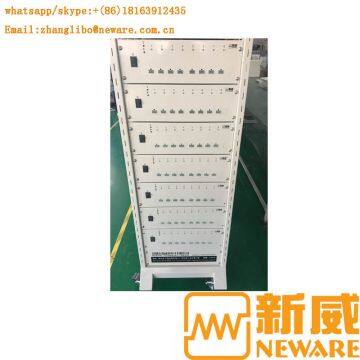

Neware 5V12A Chainsaws Incoimg Batteries Charge/discharge Tester With Software
US$ 3000 - 4000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Neware
Place of Origin:
China
Model Number:
CT-4008-5V12A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
Neware Brush Cutters Incoming Batteries Cycle Life Test With Current&capacity RecordUS$ 5000 - 50000MOQ: 1 Set -
Neware 8 Channel 18650 Cycler in Battery Research InstituteUS$ 2000 - 4000MOQ: 1 Set
-
Neware 5V50mA CR2302 Coin Cells Cycler With SoftwareUS$ 2000 - 3000MOQ: 1 Set
-
Neware 5V200A High Current Cells Cycler With Three Current Range Swift AutomaticallyUS$ 5000 - 50000MOQ: 1 Set
-
Neware 5V10mA 8 Channel Nanotech Coin Cells Cycler With Dq/Dv GraphUS$ 2000 - 3000MOQ: 1 Set
Brand Name
Neware
Place of Origin
China
Model Number
CT-4008-5V12A
NEWARE offers charge/discharge battery testing systems ranging from μA signal cell applications up to 300kw packs.
Application:
1,Coincell,cylindrical,prismatic,&flat cell testing.
2,Basic cycling,electrochemical experiment,and advanced real-world simulations.
3,Battery packs and modules of all sizes.
4,Any battery chemistry including lithium,silicon,sulfur,lead acid,nickel,&more.
Technical Specification:
| BTS-5V12A | Battery Testing System | |||||||||||||||
| Model: | BTS- | 5 | V | 12 | A | Material Code: | CT-4008 | -5V12A | - | NA | - | |||||
| Description | Product Specification | |||||||||||||||
| AC Input | AC 220V±10% 50Hz | |||||||||||||||
| Power | 851 | W | ||||||||||||||
| Resolution | AD: 16bit; DA: 16bit | |||||||||||||||
| Impedance Input | ≥1MΩ | |||||||||||||||
| Voltage | Measuring Range | 25mV~5V | ||||||||||||||
| Discharge Min Voltage | 2.5V | |||||||||||||||
| Accuracy | ± 0.1% of FS | |||||||||||||||
| Stability | ± 0.1% of FS | |||||||||||||||
| Current | Range | Charge: 60mA~12A Discharge: 60mA~12A | ||||||||||||||
| Accuracy | ± 0.1% of FS | |||||||||||||||
| Stability | ± 0.1% of FS | |||||||||||||||
| Power | Output Power Per Channel | 60W | ||||||||||||||
| Stability | ± 0.2% of FS | |||||||||||||||
| Time | Rise Time | 20ms (10%FS~90%FS) | ||||||||||||||
| StepTime | ≤ (365*24) hour/step | Time Format 00:00:00:000 (h:min:s:ms) | ||||||||||||||
| Data Acquisition | Intervals | Time interval Δt: (100ms~60000s) | ||||||||||||||
| Voltage interval ΔU: (10mV~5V) | ||||||||||||||||
| Current interval ΔI: (24mA~12A) | ||||||||||||||||
| Frequency | 10Hz | |||||||||||||||
| Charge | Modes of Operation | CCC, CVC, CC & CVC, CPC | ||||||||||||||
| End Conditions | Voltage, Current, Test Time, Capacity | |||||||||||||||
| Discharge | Modes of Operation | CCD, CPD, CRD | ||||||||||||||
| End Conditions | Voltage, Current, Test Time, Capacity | |||||||||||||||
| Pulse | Charge | CCC | ||||||||||||||
| Discharge | CCD | |||||||||||||||
| Minimum Pulse Width | 500ms | |||||||||||||||
| Automated Switch | Automated switch from charge to discharge for each pulse | |||||||||||||||
| End Condition | Voltage, Test Time | |||||||||||||||
| Cycle | Cycles | 65535 | ||||||||||||||
| Steps | 254 | |||||||||||||||
| Nested Function | Max three levels of loops | |||||||||||||||
| Protective Function | Power-off data protection | |||||||||||||||
| Off-line Operating | ||||||||||||||||
| User-defined safety (upper and lower) tolerance of current, voltage and delay time | ||||||||||||||||
| Reverse-connecting protection | ||||||||||||||||
| Channel Features | Independent pairs of closed loop for constant current source and constant voltage source | |||||||||||||||
| Channels | Independent control | |||||||||||||||
| Detection and Sampling | 4-wire Connecting | |||||||||||||||
| Noise Density | <85dB | |||||||||||||||
| Data Management | MYSQL Database | |||||||||||||||
| Communication Means | TCP/IP Protocol | |||||||||||||||
| Exports Formats | EXCEL, TXT, Graph | |||||||||||||||
| Communication Interface | Ethernet Port | |||||||||||||||
| Number of Channels Per Cabinet | 8 | |||||||||||||||
| Operating Environment | ||||||||||||||||
| Description | Product Specification | |||||||||||||||
| Operating Temperature | 0ºC~40ºC | |||||||||||||||
| Storage Temperature | -10ºC~50ºC | |||||||||||||||
| Operating Humidity | ≤70% RH | |||||||||||||||
| Storage Humidity | ≤80% RH | |||||||||||||||
Warraty: 1 year
Delivery: 7days after deposit
