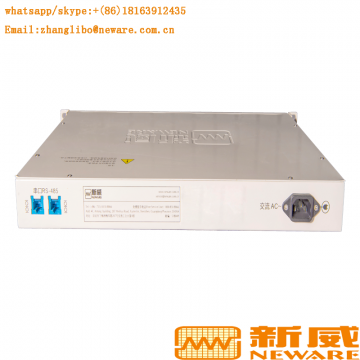

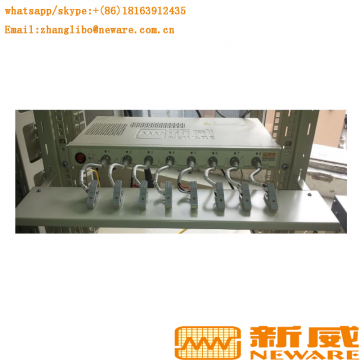

Neware 5V50mA 8 Channel Pouch Cells Cycler

Neware Technology Limited Company
Neware 5V50mA 8 Channel Pouch Cells Cycler thumbnail-1
Neware 5V50mA 8 Channel Pouch Cells Cycler thumbnail-2
Neware 5V50mA 8 Channel Pouch Cells Cycler thumbnail-3
Neware 5V50mA 8 Channel Pouch Cells Cycler thumbnail-4
Neware 5V50mA 8 Channel Pouch Cells Cycler thumbnail-5
Neware 5V50mA 8 Channel Pouch Cells Cycler photo-1
Neware 5V50mA 8 Channel Pouch Cells Cycler photo-2
Neware 5V50mA 8 Channel Pouch Cells Cycler photo-3
Neware 5V50mA 8 Channel Pouch Cells Cycler photo-4
Neware 5V50mA 8 Channel Pouch Cells Cycler photo-5
US$ 2000 - 3000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Neware
Place of Origin:
China
Model Number:
CT-4008-5V50mA-164
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Neware
Place of Origin China
Model Number CT-4008-5V50mA-164

Neware is a leading manufacturer of battery testing system manufacturer for 20 years in China.

Our equipment provide DCIR,pulse,cycle life,capacity test and so on.

Technical Specification:

BTS-5V50mABattery Testing System
Model:BTS-5V50mAMaterial Code:CT-4008-5V50mA-N-S1
DescriptionProduct Specification
AC InputAC 110V±10% 50Hz
 Power 3544 mW
ResolutionAD: 16bit; DA: 16bit
Input Impedance ≥1MΩ
VoltageMeasuring Range 25mV~5V
 Discharge  Min Voltage10mV
Accuracy± 0.05% of  FS
Stability± 0.05% of  FS
CurrentRangeCharge: 0.1mA~50mA             Discharge: 0.1mA~50mA
Accuracy± 0.05% of  FS
Stability± 0.05% of  FS
PowerOutput Power Per Channel250mW
Stability± 0.1% of  FS
TimeRise Time 1ms  (0~Full Range)
Step Time≤ (365*24)  hour/stepTime Format 00:00:00:000 (h:min:s:ms)
Data AcquisitionIntervalsTime interval  Δt:(100ms~60000s)
Voltage interval ΔU: (10mV~5V)
Current interval ΔI: (0.1mA~50mA)
Frequency10Hz
ChargeModeof Operation CCC, CVC, CC & CVC, CPC
End ConditionsVoltage, Current, Test Time, Capacity
DischargeModeof Operation CCD, CPD, CRD
End ConditionsVoltage, Current, Test Time, Capacity
PulseChargeCCC
DischargeCCD
Min Pulse Width500ms
Automated SwitchAutomated switch from charge to discharge for each pulse
End ConditionVoltage, Test Time
CycleCycles 65535
Steps254
 Nested FunctionMax three levels of loops
Protective FunctionPower-off data protection
Off-line Operating
User-defined safety(upper and lower)tolerance of current, voltage and delay time
Channel FeaturesIndependent pairs of closed loop for constant current source and constant voltage source
Channels Independent control
Detection and Sampling 4-wire Connecting
Noise Density<85dB
Data ManagementMYSQL Database
Communication MeansTCP/IP Protocol
Export FormatsEXCEL, TXT, Graph
Communication InterfaceEthernet Port
Number of Channels Per Cabinet8
Operating  Environment
DescriptionProduct Specification
Operating Temperature 0ºC~40ºC
Storage Temperature-10ºC~50ºC
Operating Humidity≤70% RH
Storage Humidity≤80% RH


Warraty: 1 year

Delivery: 7days after deposit
