High Pressure Hand Air Pump Calibrators
Description High Pressure Hand Air Pump Calibrators

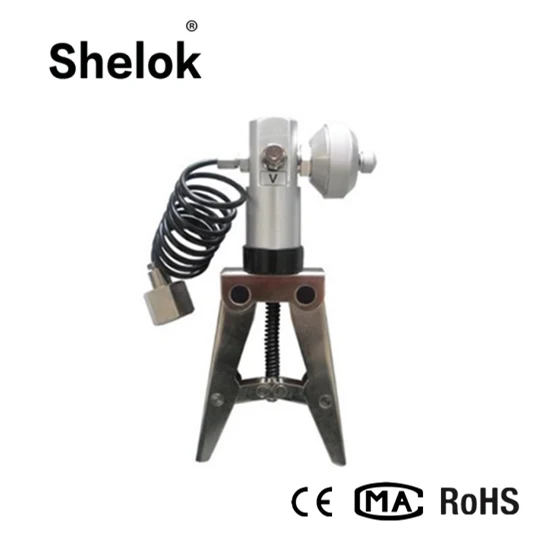

YFP-16 Pressure pump is a portable handheld pressure pump. Instruments for testing various types of pressure calibration instrumentation and control room on-site installation of industrial processes used. Pressure source is also available for the pressure measurement instruments factory calibration. Within each Where 60Mpa type pressure transmitters, pressure sensors and a variety of pressure gauges
Detailed Images High Pressure Hand Air Pump Calibrators
Selection Range Optional Guide
Y039: 0~1.6MPa
Stability :0.05%
Type :Pneumatic pressure
Price: USD180.00/pc
Y060: 0~25MPa
Stability :0.05%
Type :Hydraulic pressure
Price: USD269.00/pc
Y061: -0.08~0MPa
Stability :0.05%
Type :Pneumatic pressure
Price: USD180.00/pc
YFP-16: -0.088~1.6MPa
Stability :0.05%
Type :Pneumatic pressure
Price: USD353.00/pc
YFP-16: -0.088~2.0MPa
Stability :0.05%
Type :Pneumatic pressure
Price: USD353.00/pc
YFP-16: -0.088~2.5MPa
Stability :0.05%
Type :Pneumatic pressure
Price: USD353.00/pc
Specification High Pressure Hand Air Pump Calibrators
High Pressure Hand Air Pump Calibrators | |
Working pressure |
-0.1 ~ 1.6MPa |
Working Environment |
-20 to 50℃ |
Relative humidity: ≤ 100% | |
Dimension |
220x110x55mm |
Weight |
0.8kg |
Output pressure |
-0.1 ~ 1.6Mpa |
Table connector thread |
M14 × 1.5 thread (exports by 1/4NPT) |
high-pressure hose connector thread |
M20 × 1.5 thread (exports by 1/2NPT) requirements |
Different Type For Your Choice:
Model Number |
Pressure Range |
Medium |
Y039 |
0 ~ 1.6Mpa |
Pneumatic/Barometric Pressure |
Y061 |
-0.1 ~ 0Mpa |
Pneumatic/Barometric Pressure |
Y060 |
0 ~ 25Mpa |
Hydraulic Pressure |
YFP-1.6 |
-0.1 ~ 1.6Mpa |
Pneumatic/Barometric Pressure |
YFP-2.0 |
-0.1 ~ 2.0Mpa |
Pneumatic/Barometric Pressure |
YFP-2.5 |
-0.1 ~ 2.5Mpa |
Pneumatic/Barometric Pressure |
XYSB60 |
0 ~ 60Mpa |
Hydraulic Pressure |
Features High Pressure Hand Air Pump Calibrators
1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing ,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
