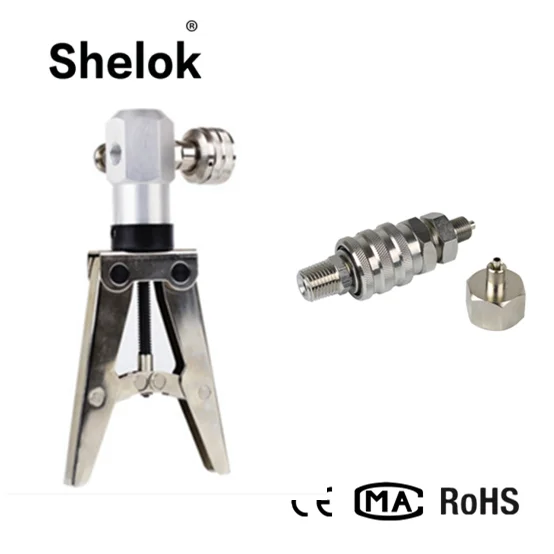

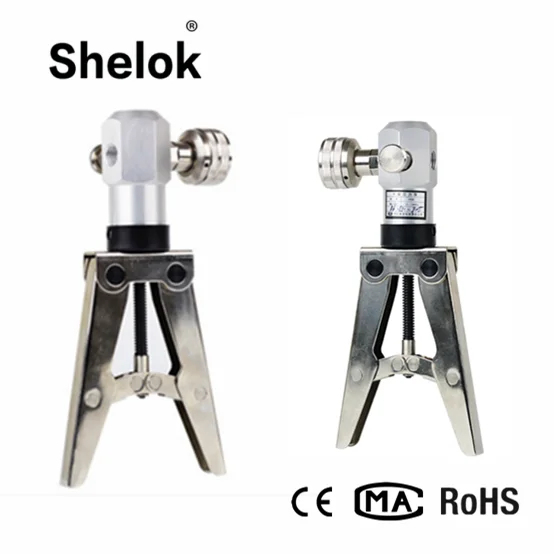

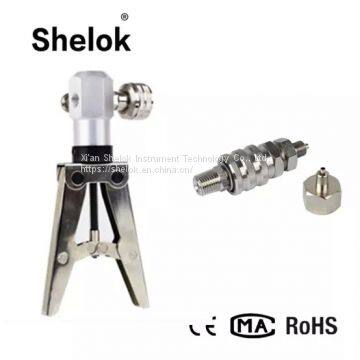

Description of Portable hand hedl pressure test pump calibrator:
hand pressure calibrator is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pum.
Features of Portable hand hedl pressure test pump calibrator:
1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.
Specification of Portable hand hedl pressure test pump calibrator:
Output pressure: 0-1.6Mpa,-0.1-0Mpa,0-25Mpa
work environment:
Temperature::0~40°Cb Relative humidity≤100%
weight:≤0.8Kg
Table joint thread: M14 x 1.5 internal thread (exports by 1/4 NPT), high pressure hose joint thread: M20 x 1.5 internal thread (exports by 1/2 NPT)
Model table of Portable hand hedl pressure test pump calibrator
Model number |
range |
Medium |
Y039 |
0-1.6Mpa |
barometric pressure |
Y061 |
-0.1-0Mpa |
barometric pressure |
Y060 |
0-25Mpa |
Hydraulic pressure |
YFP-1.6 |
-0.1-1.6Mpa |
barometric pressure |
YFP-2.0 |
-0.1-2.0Mpa |
barometric pressure |
YFP-2.5 |
-0.1-2.5Mpa |
barometric pressure |
XYSB60 |
0-60Mpa |
Hydraulic pressure |
Detailed Images of hot sale hand water pump pressure calibrator with low price:
Company Information:
Standard export carton packing.
DELIVERY TIME:3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
