13mm O.d Fleixble Ribbed Oil Resistant Umbilical Electrical Cable

FOB Price

Negotiable

0 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Insulation Material:

FPE, PE, or HT PVC 105 ℃

Type:Low Voltage, Low Voltage

Application: underwater Float water

Outer Jacket: FEP, Foam TPE Inner Jacket Press extruded TPE

Conductor: Pure Copper, Tinned Copper

Test Voltage: 1000V, 1 min

Sheath Color: Yellow, Blue, Orange

Packing: 100 meters/roll

Certificate: CE, CCC, RoHS

Description：

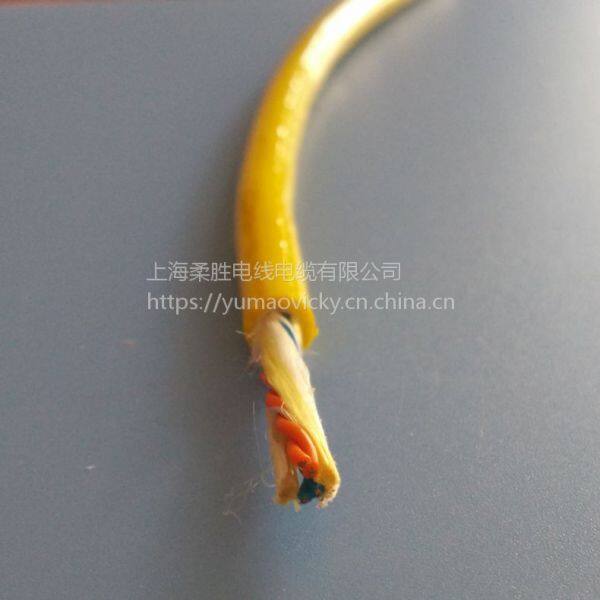

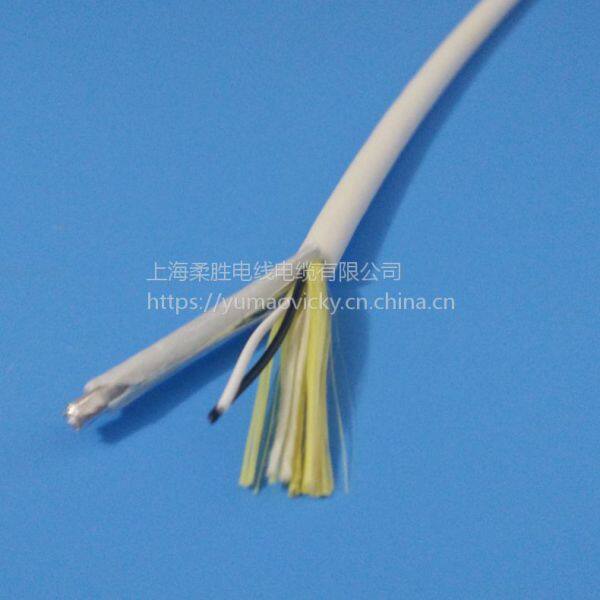

Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, movable,UV-stable, good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems

Specifiation:

Model Number

Specifications

ROV Cable

Outer Diameter

5±0.2MM

Conductor

Anodized Bare Copper Wire

Insulation

Special Seawater-proof PE Material

Core color

Color Separation

Tensile Structure

Imported Kevlar Bulletproof Wire

Tensile Strength

80kg

Wrapping Material

High Quality Lightweight Nonwoven

Cable Shield

None

Inner Sheath

Foam-proof Seawater-specific Polyether PolyurethaneMaterial (Anti-seawater, oil-resistant, acid-base, corrosion-resistant, anti-dragging, anti-microbial erosion)

Outer Sheath

Polyurethane Glossy Anti-seawater Corrosion Special Material

Temperature Range

Fixed laying: -40°C~+90°C

Mobile Installation

-30°C~+80°C

Radiation Resistance

8x107cj/kg (water resistant cable 5x107 cj/kg)

Rated Voltage

300/300V

Test Voltage

1500V

Minimum Bend Radius

Drag and drop using 4D (cable outer diameter)
