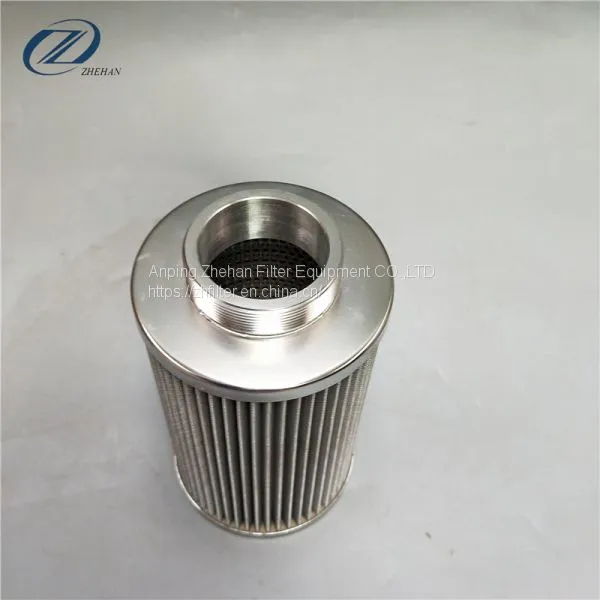

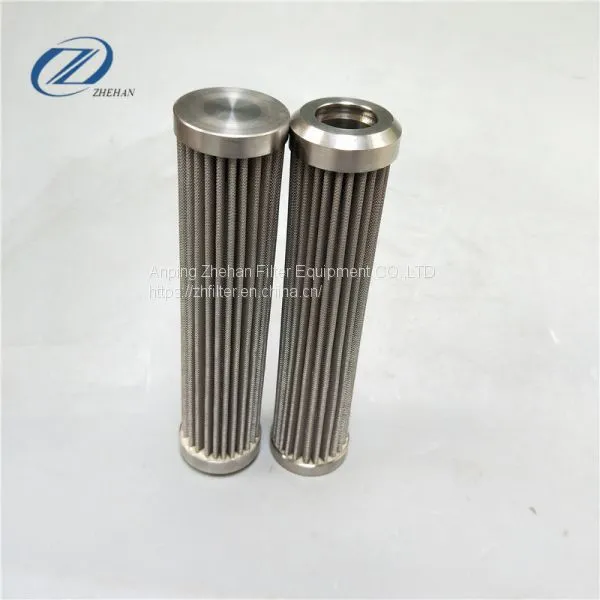

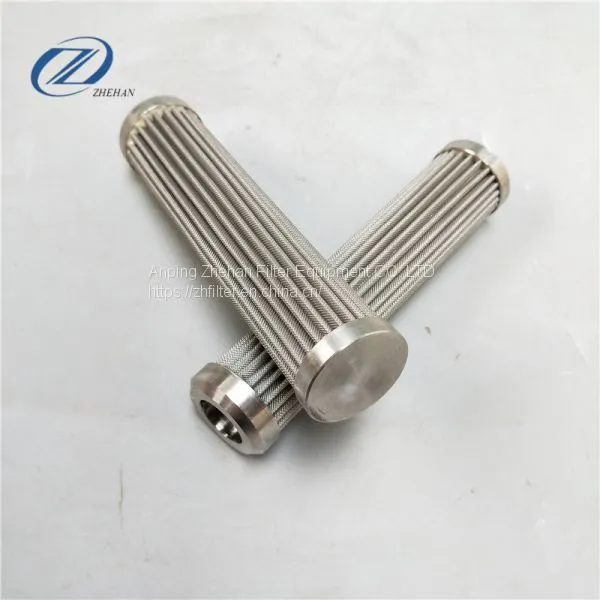

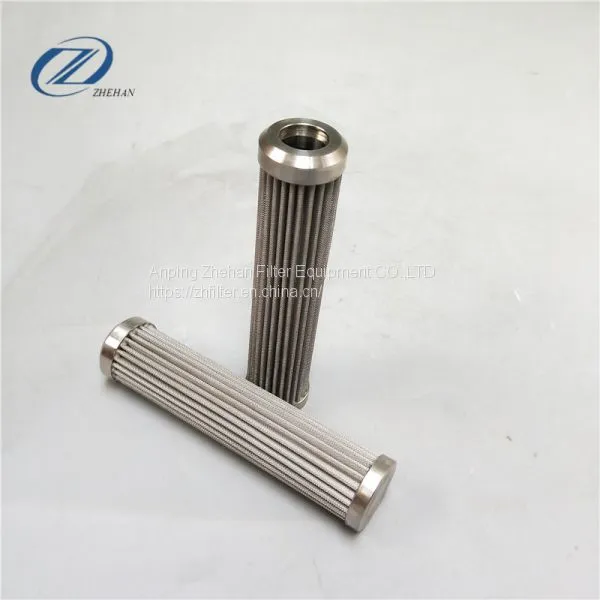

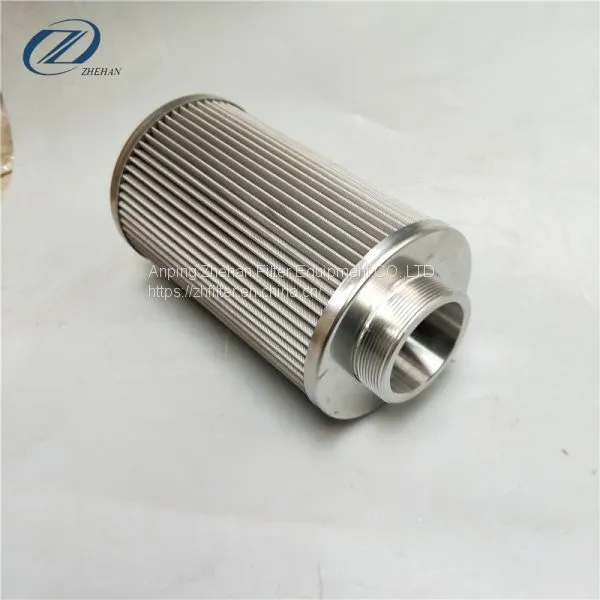

stainless steel machiney pleated filter element for oil/gas filtration

Material: SS304, SS316, SS316L.

• Filter precision: 1 - 300μm.

• Filter efficiency: ≥95%.

• Working pressure: 30Mpa.

• Working temperature: ≤600°C.

• Main filter media: stainless steel sintered fiber web and stainless steel wire woven cloth.

• Installing form: standard (using o-ring to seal), thread, tie rod, flange, fast interface.

Cleanability of Stainless Steel Filter Elements

Our stainless steel wire cloth elements are ideal for hostile or severe environments and applications. That is why cleanability is so important. All of our wire cloth stainless steel filter elements are easily restored back into service by back flushing, ultrasonic or other non-abrasive cleaning techniques. When used in filtration applications involving hazardous fluids, the cleanability of our stainless filter elements can significantly reduce disposal costs.

Product instruction

The main filter made by stainless steel wire mesh and stainless steel fiber felt. The stainless steel wire mesh is made of stainless steel wire woven, has a smooth channel, easy to clean, high temperature resistance, corrosion resistance, the screen will not fall off, the filter cycle is long.
The stainless steel fiber felt is a deep filter and the material is stainless steel fiber after high temperature sintering, the folding wave core has high porosity, food air permeability, assimilative capacity, strong regeneration ability etc.
The products of special specifications can be manufactured according to customer's requirements.
Feature
Smooth wire pore.
High filtration rating.
Great dirty holding capacity.
Excellent permeability.
High precision and reliable standard specification.
High porosity makes it low pressure drop.
Resist high temperature.
Corrosion resistance.
Repeatedly and easy cleanable.
Low cost and maintenance.
Long service life.
Other size customization.
Application:
The pleated filter element can be widely used at industry, medical, chemistry filtration such as:
Hydraulic oil and fuel filtration.
Hot gas filtration.
Hot lube filtration.
Clarity filtration.
Gas-liquid separation.
Oil filtration.
Aerosol application.
Cross flow filtration.
Polymer filtration.
High temperature process.
Process steam.
Medical and analysis devices.
