Water Washing/Filling/Capping Monobloc
Model:XGF14-12-5
General Descriptions
This machine works harmoniously with air-conveyor belt; it holds the bottles by the neck when transporting
This machine is used to fill still water into pet bottle and with screw caps capping function.
Integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles
Feature:
About Rinser Station
Neck Control with plastic snap on the gripper.
Water distributor combined with Food Grade Rubber plate & SUS304 cover.
SUS304 water collecting tray
Spraying inject design, can completely washing the bottles.
Washed water recycling system, for water saving !!
(Washed bottle---drip in water tank--water pump---raw water tank)
About Filler Station
The entire filler is gravity filling system.
High accurate SUS304 construction filling nozzle, make sure high accurate filling level
SUS304 liquid bowl, & pipeline system.
Filling level adjustable by choosing different silicone gasket (quick change over parts)
No bottles, no filling
Annulus Liquid bowl, with automatic water level controller
About the Capper
Place & capping system. Automatic caps arranging, feeding.
Electromagnetic capping heads, with burden discharge function,
All 304stainless steel construction
No bottle no caps delivery.
Automatic stop when lack of bottle.
About Electric Part & Safe Device & Automation
PLC control, touch screen control panel
Light alarming system, when accident system automatic stop & alarm
Emergency switch when accident
Jog switch, easy machine testing
When force open the machine window, automatic stop
Machine Base & Machine Construction
Neck hanging design, easy & quick change over parts
SUS304 machine frame, easy clean
Tempering Glass window.
All SUS304 column & SUS304 table cover
Iron machine table & base &with process antirust pain ensure the antirust
Manual lubrication system
Technical Parameter
Item |
Technical Parameter |
Production Output |
500 ML @ 4,000BPH |
Rinsing heads |
14pcs |
Filling nozzles |
12pcs |
Capping heads |
5pcs |
Suitable to PET bottle Size |
Diameter Φ50～Φ95mm Highness:160～320mm, Bottle neck: 28mm, Bottle volume from 200 to 2250ml |
Suitable to Caps |
28mm plastic Screw Caps |
Washing Water Required |
1000 liter per hour |
Washing Pressure Required |
0.25Mpa |
Working Power |
380V AC 3-phase |
Compressed Air Pressure (for caps arranger) |
0.7MPa |
Compressed Air Consumption (for caps arranger) |
0.7m3/min |
Control Panel Power |
24V DC |
Filling Pressure |
Normal pressure (gravity) |
Machine Size |
2350 x 1650x2300mm |
Gross Weight |
2400kg approximately |
Total Power |
2.62KW |
Configuration List:
No |
Name |
Brand |
1 |
Main motor |
ABB (America) |
2 |
Cap unscrambler motor |
FEITUO(China) |
3 |
Conveyor motor |
FEITUO(China) |
4 |
Rinsing pump |
CNP (China) |
5 |
Solenoid valve |
FESTO(Germany) |
6 |
Cylinder |
FESTO(Germany) |
7 |
Air-T contactor |
FESTO(Germany) |
8 |
Pressure adjust valve |
FESTO(Germany) |
9 |
Inverter |
MITSUBISHI(Japan) |
10 |
Power switch |
MIWE(TAIWAN) |
11 |
Contactor |
SIEMENS(Germany) |
12 |
Relay |
OMRON(Japan) |
13 |
Transformer |
MIWE(TAIWAN) |
14 |
Approx switch |
TURCK(Germany) |
17 |
PLC |
MITSUBISHI(Japan) |
18 |
Touch screen |
Pro-face(Japan) |
19 |
Air components |
FESTO(Germany) |
20 |
AC Contactor |
Schneider(France) |
21 |
Micro relay |
OMRON(Japan) |

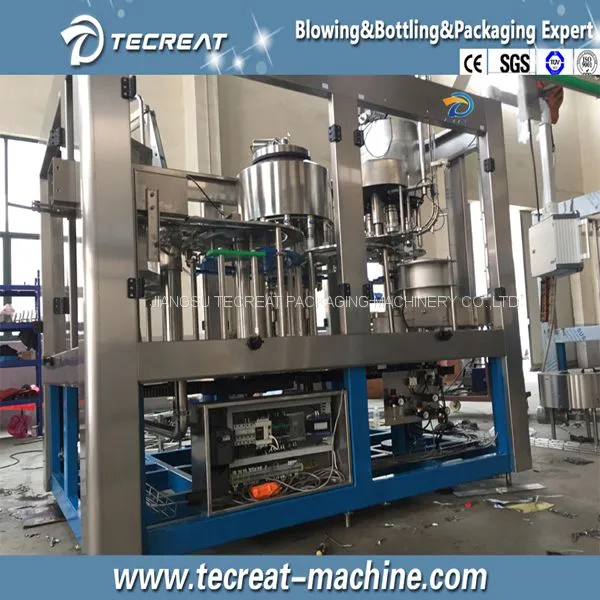

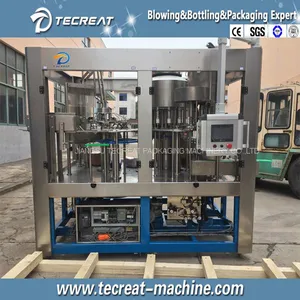

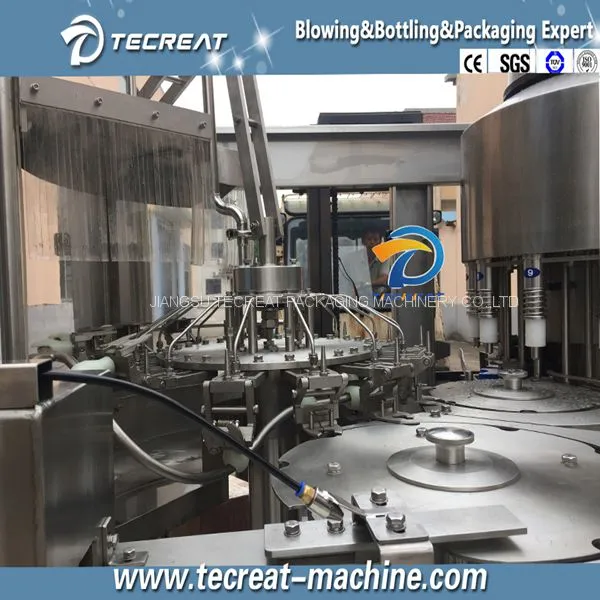

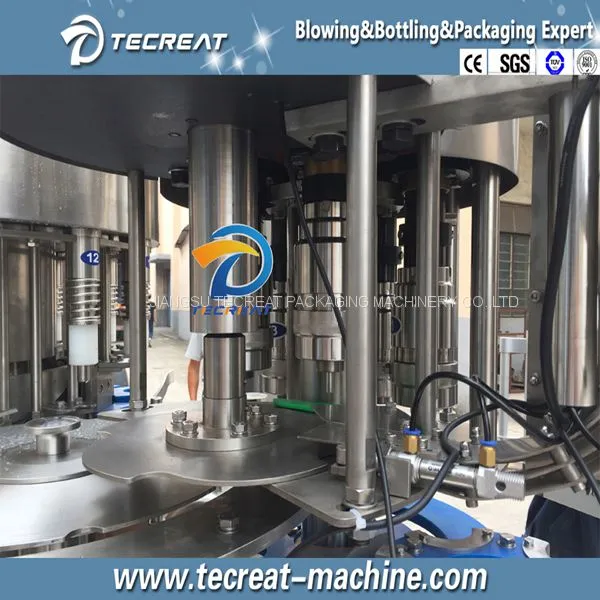

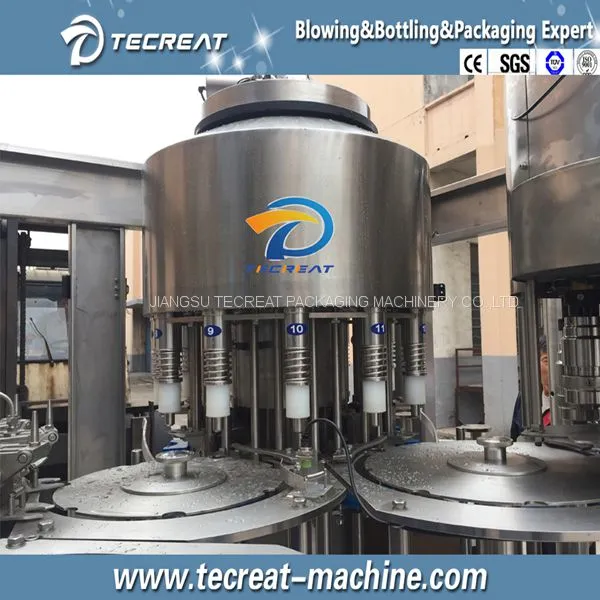

The machine images
|
|
|
|
