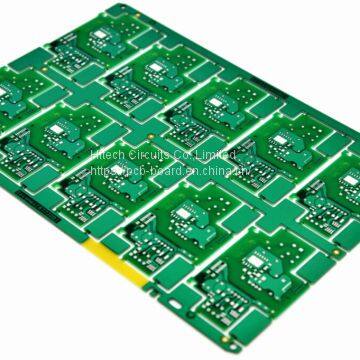

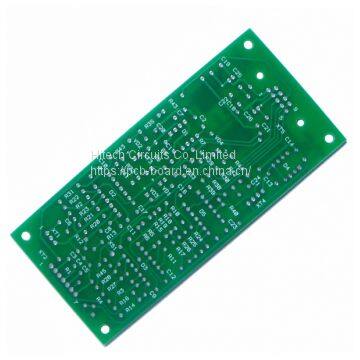

Custom Printed Circuit Boards Supplier/Immersion Silver PCB
US$ 0.002 - 0.1
MOQ: 0 Square Meter
Key Specifications
Get Latest Price
Brand Name:
Hitech
Place of Origin:
China
Model Number:
Custom
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen, hongkong
Delivery Detail:
5 days
Related Products
-
High Quality and Low Cost Prototype PCB Circuit BoardUS$ 0.002 - 0.1MOQ: 0 Square Meter -
China One-stop PCBA Service And PCB Component Assembly/printer Controller PCB AssemblyUS$ 0.002 - 0.1MOQ: 0 Square Meter
-
China Customized Fr4 Prototype Pcb AssemblyUS$ 0.002 - 0.1MOQ: 0 Square Meter
-
High TG Black V-cut Pcb Fabrication With Gold FingersUS$ 0.002 - 0.1MOQ: 0 Square Meter
-
Heavy Copper 6oz 6L High TG Material With 2.80mm Board Thickness and ENIG Surface Treatment PcbUS$ 0.002 - 0.1MOQ: 0 Square Meter
Brand Name
Hitech
Place of Origin
China
Model Number
Custom
Surface Finishing
ENIG
Min. Line Spacing
0.16MM
Min. Line Width
0.14MM
Min. Hole Size
0.45MM
Board Thickness
2.0MM
Copper Thickness
1OZ
Base Material
fr4 TG170
Custom Printed Circuit Boards Supplier/Immersion Silver PCB
Company Information:
China pcb manufacturer--Hitech Circuits Co.,Limited, founded in 1997 in Shenzhen, adjoining to Hong Kong with easy transportation and ideal location. At the beginning we are a PCB distributor, since our formation, we have been strongly focusing on quality, cost, and service, and experienced continuous growth.
In order to give our customers a better service and be more competitive in the PCB market, we had stepped into the PCB manufacturing area in 2002 by share holding and controlling of two qualified PCB manufacturers. Now Hitechs facility total area is 65,000 square meters and have around 1600 experienced workers try our best to ensure the board quality and on time delivery.

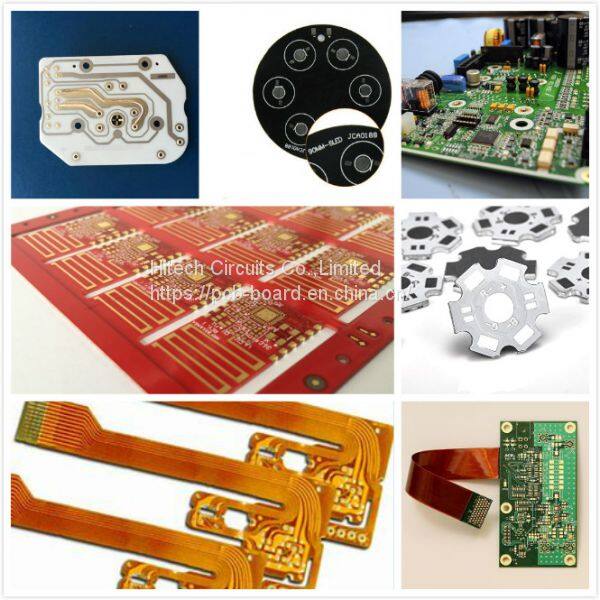

Hitech focuses on high-mix, low volume and quick turn pcb service. With a special market position and excellent corporate culture, we can provide "One-stop shop" service from 1 to 26 layers of PCB products, which includs double layers PCB, Multilayer PCB, Aluminium PCB (Metal core PCB) Flexible PCB (FPCB), Rigid-Flex PCB (Flex-rigid PCB), High Density Interconnect (HDI )PCB boards, heavy copper boards, buried Capacitance & resistance boards, etc. Our products cover various products are exported to Europe, America and Asia.
Now Hitechpcb has formed the marketdevelopment, the product research, the development, the production,the quality guarantee complete system, we focus on quality, cost, service, and experienced continuous growth and succeeded in passing the certification of international quality systems as ISO 9001, UL(UL#E354070) and ISO14001 environmental quality system.
With top quality, excellent service and competitive prices, prompt delivery are our targets to enable us to be your best partner in business. Hitech is willing to develop business relationship with customers from all over the word and we believe that Hithch will continue to grow and develop hand in hand with our valuable customers.
Our Superiority is the Professionalism of our team.
- PCB And PCB Assembly For One-stop Service with Original Components According the BOM.
IC Imported from Digikey / Farnell etc.
- Low Cost with High Quality, Commitment of Quality Assurance.
- For 10 years Experience in PCB Field. ( Our Factory owns advanced
production equipment and experienced technical personnel. )
Detailed specification of manufaturing capacity:
| NO | Item | Craft Capacity |
| 1 | Layer | 1-30 Layers |
| 2 | Base Material for PCB | FR4, CEM-1, TACONIC, Aluminium, High Tg Material, High Frequence ROGERS ,TEFLON, ARLON, Halogen-free Material |
| 3 | Rang of finish baords Thickness | 0.21-7.0mm |
| 4 | Max size of finish board | 900MM*900MM |
| 5 | Minimum Linewidth | 3mil (0.075mm) |
| 6 | Minimum Line space | 3mil (0.075mm) |
| 7 | Min space between pad to pad | 3mil (0.075mm) |
| 8 | Minimum hole diameter | 0.10 mm |
| 9 | Min bonding pad diameter | 10mil |
| 10 | Max proportion of drilling hole and board thickness | 1:12.5 |
| 11 | Minimum linewidth of Idents | 4mil |
| 12 | Min Height of Idents | 25mil |
| 13 | Finishing Treatment | HASL (Tin-Lead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, etc. |
| 14 | Soldermask | Green, White, Red, Yellow, Black, Blue, transparent photosensitive soldermask, Strippable soldermask. |
| 15 | Minimun thickness of soldermask | 10um |
| 16 | Color of silk-screen | White, Black, Yellow ect. |
| 17 | E-Testing | 100% E-Testing (High Voltage Testing); Flying Probe Testing |
| 18 | Other test | ImpedanceTesting,Resistance Testing, Microsection etc., |
| 19 | Date file format | GERBER FILE and DRILLING FILE, PROTEL SERIES, PADS2000 SERIES, Powerpcb SERIES, ODB++ |
| 20 | Special technological requirement | Blind & Buried Vias and High Thickness copper |
| 21 | Thickness of Copper | 0.5-14oz (18-490um) |
Equipment List
| NO. | Machine Name | QTY | NO. | Machine Name | QTY |
| 1 | PRESS | 2 | 10 | Exposurer | 5 |
| 2 | X-Ray | 1 | 11 | Deveoloper | 3 |
| 3 | Brown-Oxidation | 1 | 12 | Auto V-cut | 1 |
| 4 | Drilling | 13 | 13 | AOI | 2 |
| 5 | Cutter | 1 | 14 | Routing | 7 |
| 6 | PTH | 1 | 15 | ETS | 12 |
| 7 | PAL | 1 | 16 | Fly Probe | 4 |
| 8 | PAT | 1 | 17 | YAMAHA SMT | 3 |
| 9 | Flash Gold | 1 | 18 | FUJI SMT | 4 |
PCB and PCB Assembly Lead time:
| Description | Double side | Four Layers | Six Layers | Above Eight Layers |
HDI |
| Sample | 4 | 7 | 9 | 9 | 12 |
| Mass production | 7-9 | 10-12 | 13-15 | 16 | 20 |
| Assembly | 7-9 | 15 | 16 | 18 | 25 |
T-SOAR can be trusted PCB Partner, We are waiting for cooperation with you anytime.
- UL, RoHS, ISO, SGS Certification Compliance.
- OEM Assembly, Design, Prototype Service.
- We will be responsible for the quality of our products,
- Survive by quality, Win by Price.
Quote Requirements for PCB and PCB Assembly project:
- Gerber File and Bom List;
- Quote Quantity;
- Advise your technical requirements for quoting reference;
- Clearly picturers of PCB or PCB Assembly Sample to us for reference;
- Test Mothod for PCB Assembly.
