Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness

Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness thumbnail-1
Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness thumbnail-2
Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness thumbnail-3
Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness thumbnail-4
Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness thumbnail-5
Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness photo-1
Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness photo-2
Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness photo-3
Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness photo-4
Galvanized Iron Square Wire Mesh High Tensile Strength And Toughness photo-5
US$ 15 - 35 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Changte
Place of Origin:
China
Model Number:
CT-WW04
Contact Supplier Request Quote Chat Now
Hebei Changte Wire Mesh Manufacturing Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Changte
Place of Origin China
Model Number CT-WW04
Material Other, Galvanized iron wire or stainless steel wire
Type Weave Wire Mesh
Application Screen
Technique Woven
Wire Diameter 0.2-5mm
Weave Style Plain Weave

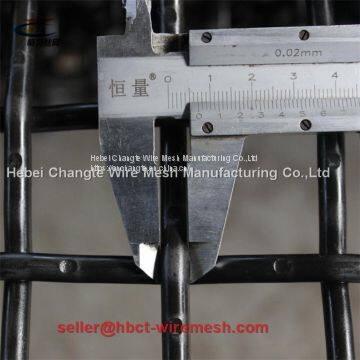

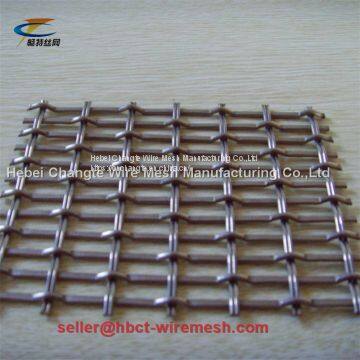

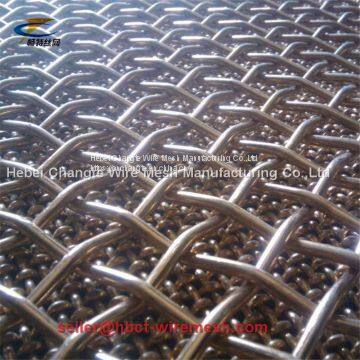

Square wire mesh woven by galvanized wire or stainless steel wire

  • Galvanized wire mesh is made of selected plain steel wire with precise construction, uniform opening, excellent corrosion and rust resistance

  • It is divide into electro galvanized and hot-dipped galvanized square wire mesh

  • They can be processed by galvanized before weaving or galvanized after weaving

  • Galvanized wire mesh it is mostly used as window screening, safety guards on machinery enclosures

  • It is also used in filtering liquid and gas, sieving grain

  • Common specification: From 2 mesh to 60 mesh

  • The sizes can be produced as per customers requirement

  • Galvanized wire mesh can be processed into all kinds of filter pieces

  • It is made of selected low carbon iron wire

  • Anjia galvanized square wire mesh enjoy many perfect characteristics such as neat & precise, stable and durable structure, good corrosion resistance and a long service life

  • Widely used in industries and constructions to sieve grain powder, sugar, chemical, stone crusher, filtering liquid and gas, for other purposes like use as window screen, safe guards on machinery enclosures, besides, it is widely applied for the substitute of wood strips in making wall and ceiling

  • Can produce excellent galvanized square wire mesh, including electro galvanized before/after weaving square wire mesh, hot dipped galvanized before/after weaving square wire mesh and crimped square wire mesh with different roll size, mesh counts, opening and wire diameter

  • The sizes can be produced as per customer’s requirement.

  • Packed In rolls, wrapped with waterproof paper then covered with polythene bag, at last one roll or two rolls per hessian or plastic weaving bag outside

  • Special packing may be arranged if necessary



Mesh/Inch
Wire Diameter
Aperture
 Open Area
Weight(LB)/100 Square Foot
mm
mm
1x1 2.03 23.37 84.6 41.1
2X2 1.6 11.1 76.4 51.2
3X3 1.37 7.09 70.1 56.7
4X4 1.6 4.75 56 104.8
4X4 1.19 5.16 65.9 57.6
5X5 1.04 4.04 63.2 54.9
6X6 0.89 3.35 62.7 48.1
8X8 0.71 2.46 60.2 41.1
10X10 0.64 1.91 56.3 41.2
10X10 0.51 2.03 64 26.1
12X12 0.584 1.52 51.8 42.2
12X12 0.508 1.6 57.2 31.6
14X14 0.584 1.22 45.2 49.8
14X14 0.508 1.3 51 37.2
16X16 0.457 1.13 50.7 34.5
18X18 0.432 0.98 48.3 34.8
20X20 0.508 0.76 36 55.2
20X20 0.406 0.86 46.2 34.4
24X24 0.356 0.7 44.2 31.8
30X30 0.33 0.52 37.1 34.8
30X30 0.305 0.54 40.8 29.4
30X30 0.229 0.62 53.1 16.1
35X35 0.279 0.45 37.9 29
40X40 0.254 0.38 36 27.6
50X50 0.229 0.28 30.3 28.4
50X50 0.203 0.31 36 22.1
60X60 0.191 0.23 30.5 23.7
60X60 0.178 0.25 33.9 20.4
70X70 0.165 0.2 29.8 20.8
80X80 0.165 0.15 23 23.2
80X80 0.14 0.18 31.4 16.9
90X90 0.127 0.16 30.1 15.8
100X100 0.114 0.14 30.3 14.2
100X100 0.102 0.15 36 11
100X100 0.089 0.17 42.3 8.3
110X110 0.1016 0.1295 30.7 12.4
120X120 0.094 0.1168 30.7 11.6
150X150 0.066 0.1041 37.4 7.1
160X160 0.0635 0.0965 36.4 5.94
180X180 0.0584 0.0838 34.7 6.7
200X200 0.0533 0.0737 33.6 6.2
250X250 0.0406 0.061 36 4.4
270X270  0.0406 0.0533 32.2 4.7
300X300 0.0381 0.0457 29.7 3.04
325X325 0.0356 0.0432 30 4.4
400X400 0.0254 0.37 36 3.3
500X500 0.0254 0.0254 25 3.8
635X635 0.0203 0.0203 25 2.63



Product Tags: Square Wire Mesh , Woven Wire Mesh , Crimped Wire Mesh , Metal Wire Mesh , Wire Cloth , Wire Mesh
