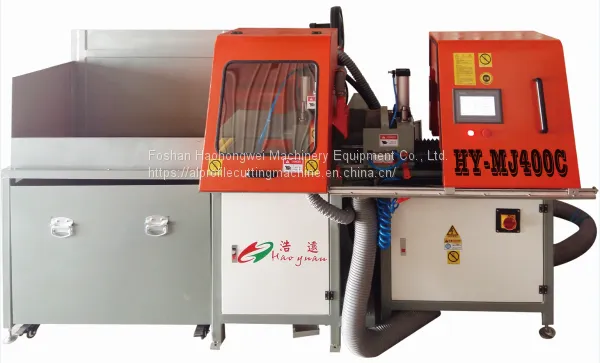

Help CenterHydraulic CNC Automatic Cutting Machine
Related Products
-
Hydraulic CNC Automatic Cutting MachineUS$ 18000 - 18700MOQ: 1 Set -
Automatic Hydraulic CNC Cutting MachineUS$ 18000 - 18700MOQ: 1 Set
-
Factory CNC Automatic Steel Cutting MachineUS$ 1 - 100000MOQ: 1 Set
-
Cnc Cutting Flexible Material Glass Fiber Automatic Cutting MachinesUS$ 1 - 100000MOQ: 1 Set
-
Cheap Price Cnc Laser 100w 1610 Automatic Cutting MachineUS$ 1 - 100000MOQ: 1 Set
Parameter：
| Maximum machining range W * L | 200×100mm |
| Feeding mode | CNC servo feeding |
| control mode | PLC touch screen |
| Drive feeding mode | Precision ball screw |
| Maximum feeding length (subsection feeding) | 600mm (custom-made) |
| Machining length accuracy | ±0.1mm |
| Feed speed | 40mm |
| Spindle speed | 3800R/PM |
| Form of pressure | Pneumatic |
| Saw blade motor | 4KW |
| Oil pump motor | 1.5KW |
| Pump motor | 40W |
| servo motor | 750W |
| Vacuum cleaner | 3KW |
| Cooling method of saw blade | Circulating water cooling |
| Saw feed / return speed | 0-3m/2-3m |
| Working pressure | 0.6-0.8mpa |
| working voltage | 380V 3P 50HZ |
| Machine weight | 700KG |
| Saw size | Φ405×Φ25.4mm×3.2×120T |
Features
This machine is developed by our company using the mature mechanical design principle of foreign countries, combined with the needs of current customers. It is one of the main production models of our company. It is the most perfect aluminum cutting equipment in the market. The customer's praise. This machine adopts touch screen automatic control, clear interface, simple operation, PLC integrated program control, imported precision guide rail interaction, precision ball screw feeding, stable hydraulic system sawing, automatic detection, automatic feeding, automatic sawing, and Diagnostic function, high circuit stability and adaptability to the working environment. It has the advantages of stable sawing, high efficiency, smooth kerf, no burr and high precision. After special requirements on the surface of aluminum, our company has broken through this problem after a long period of research and practice, and has applied for a patent. After installation and installation, the abrasion of the aluminum surface can be completely eliminated, thus ensuring the quality and perfect appearance of the product.
