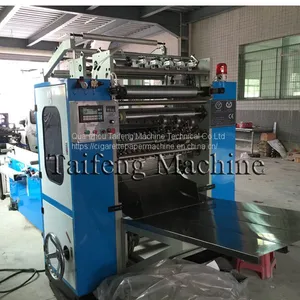

Help CenterTF-CZJ 4 LINES Automatic Faical Tissue Paper Making Machine
Related Products
-
34 Leaves of Cigarette Rolling Paper Cutting MachineUS$ 27000 - 35000MOQ: 1 Set -
Automatic Cigarette Paper Folding Machine Pricing ChinaUS$ 30000 - 50000MOQ: 1 Set
-
2018 New Type of Automatic Cigarette Paper Rolling MachineUS$ 28000 - 48000MOQ: 1 Set
-
2017 Full Automatic Toilet Paper Roll and Bathroom Paper Making MachineCNY 80000 - 150000MOQ: 1 Set
-
Automatic High Speed Toilet Paper Embossed Rewinding Bathroom Tissue Making MachineUS$ 15000 - 20000MOQ: 1 Set
YJ-NB-2L/3L/4L automatic fold towel machine will cut a good paper towels (wet-strength paper) by embossed, interactive folded into "N" type, when you use it， it will pick up a continuous extraction，the products are widely used in hotels, offices and kitchen for cleaning hands , convenient and healthy.
Machine Model |
YJ-NC-2L/3L/4L |
Products Size |
230(L)X230(W)±2mm（Other specifications, please specify） |
Raw Paper Size |
≤Φ1100 |
Base paper core diameter |
76.2(Other specifications, please specify） |
Speed |
0-180 M/min |
Use power |
electromagnetic speed control |
Programmable controller |
PLC Computer Programming |
Folding way |
Vacuum adsorption |
Refueling system |
The key part of the machine can automatic periodic refueling |
The transmission system |
Synchronous belt, chain |
Counting System |
Electronic counting, Ink marked |
Embossing device |
Steel to steel embossing, pneumatic pressure |
Cutting system |
Pneumatic cutting |
The whole structure |
Standard configuration |
Vacuum system |
Roots blower 2 rows 11KW / 3 rows of 15KW / 32KW four rows |
Pneumatic system |
3 air compressor, pressure at least 5 kg/cm2 Pa（Customer-supplied） |
Power |
3 KW /4KW |
Dimensions |
3000x1230/1600/1920X1900 mm |
Machine weight |
2 rows 3500kg 3 rows / 4500KG / four rows 6800KG |
Optional items |
|
Whole structure |
Fully enclosed structure |
Programming controller |
PLC computer programming, HMI |
